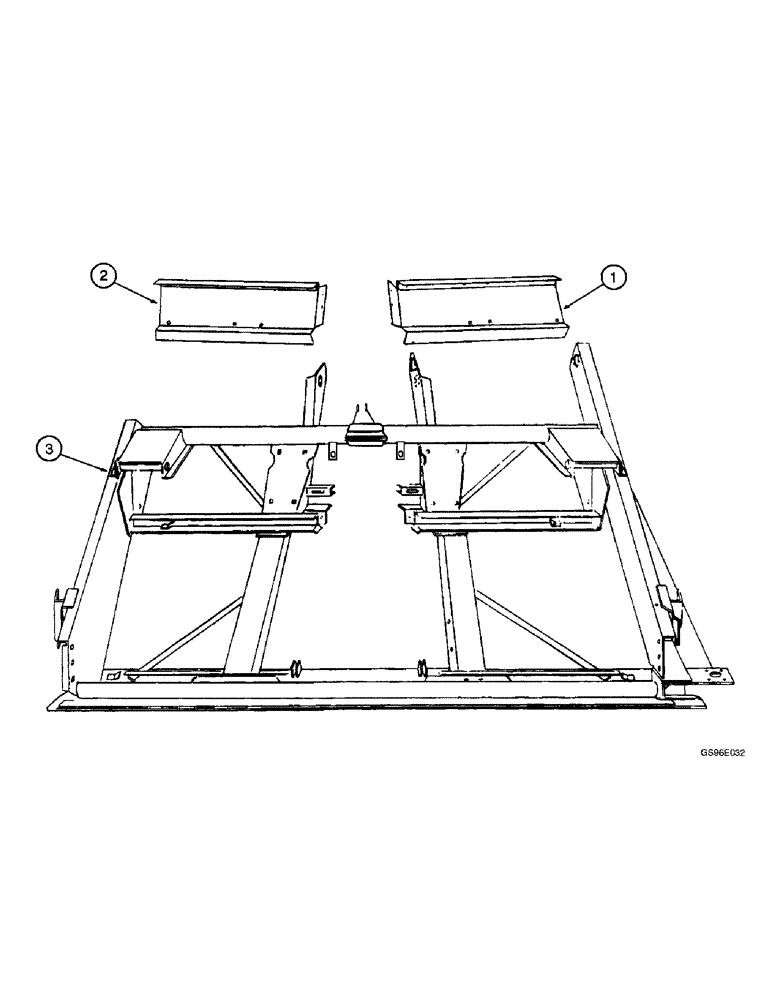

Запчасти Case IH INTERNATIONAL (3-04) - HEADER MAIN FRAME, 12.5, 14.5, 16.5 AND 19.5 FOOT HEADERS, SERIAL NUMBERS 2501 THRU 3100 (12) - MAIN FRAME

1

829306C1

SIDE - header, left-hand, 12-1/2 foot, no longer available

1шт.

1

829308C1

SIDE ASSY.

SIDE - header, left-hand, 14-1/2 foot

1шт.

1

829310C1

SIDE ASSY.

SIDE - header, left-hand, 16-1/2 foot

1шт.

1

831290C1

SIDE ASSY.

SIDE - header, left-hand, 19-1/2 foot

1шт.

2

823171C1

SIDE ASSY.

SIDE - header, right-hand, 12-1/2 foot

1шт.

2

829305C1

SIDE - header, right-hand, 14-1/2 foot, no longer available

1шт.

2

829307C1

SIDE ASSY.

SIDE - header, right-hand, 16-1/2 foot

1шт.

2

831291C1

SIDE ASSY.

SIDE - header, right-hand, 19-1/2 foot

1шт.

434-512

CARRIAGE BOLT,Sht Sq Nk, 5/16" - 18 x 3/4", Gr 5

BOLT - carriage, 5/16 NC x 3/4 inch, Fourteen used with 12-1/2, 14-1/2, and 16-1/2 foot; Sixteen used with 19-1/2 foot (Replaces bolt 598802R1)

1шт.

434-58

CARRIAGE BOLT,Sht Sq Nk, 5/16" - 18 x 1/2", Gr 5

BOLT CARRIAGE, , four used with 12-1/2 foot; six used with 14-1/2 foot; eight used with 16-1/2 foot; ten used with 19-1/2 foot (Replaces bolt 598801R1) Short NK, 5/16"-18 x 1/2", G5, Full Thd

1шт.

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT - hex serrated flange, 5/16 inch NC, use one per bolt

1шт.

495-81119

WASHER,8.74mm ID x 31.75mm OD x 1.7mm Thk

- flat, 11/32 x 1-1/4 x 1/16 inch, use one per bolt 434-58

1шт.

3

823155C1

FRAME

- header, 12-1/2 foot (Shown)

1шт.

3

823156C1

FRAME

- header, 14-1/2 foot

1шт.

3

823157C1

FRAME

- header, 16-1/2 foot

1шт.

3

831287C1

FRAME ASSY

FRAME - header, 19-1/2 foot, also order support 829300C3

1шт.

113-417

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5, Full Thd

(Replaces bolt 180175) Hex, 1/2"-13 x 1 1/4", G5, Full Thd

3шт.

129-105

NUT,Hex, 1/2" - 13, Gr 5

(Replaces nut 120378) 1/2"-13, G5

3шт.

192-23

LOCK WASHER,1/2"

WASHER, LOCK, (Replaces washer 120384) 1/2"

3шт.
