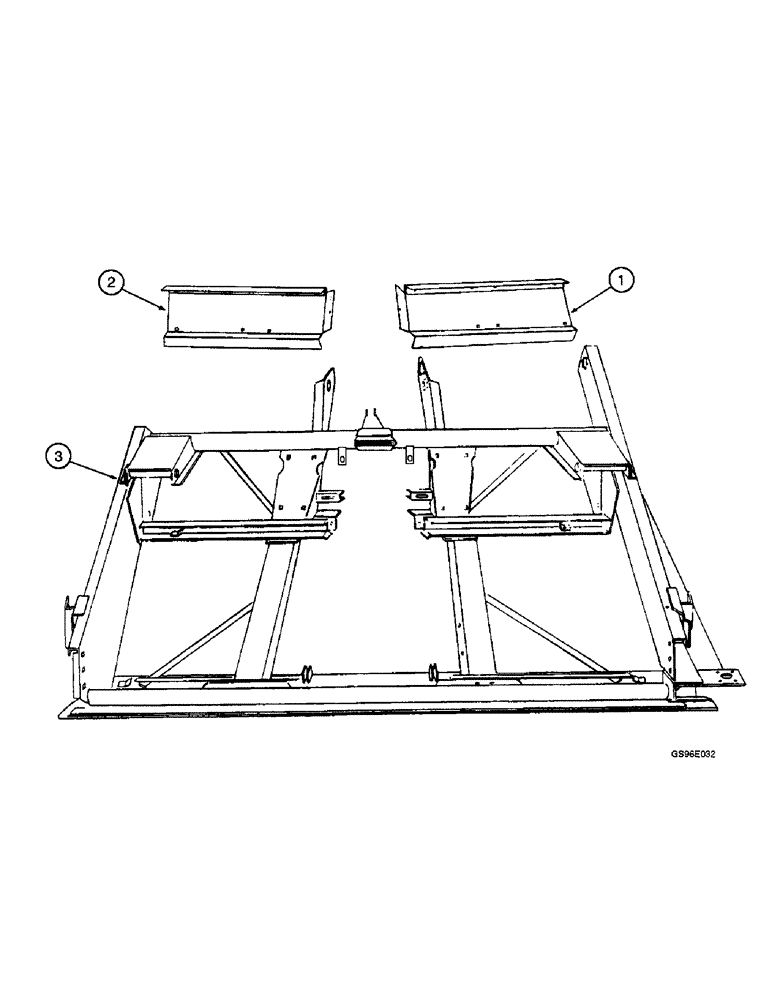

Запчасти Case IH INTERNATIONAL (3-02) - HEADER MAIN FRAME, 10.5 FOOT HEADERS BUILT PRIOR TO 1979, 12.5, 14.5, 16.5 AND 19.5 FOOT HEADERS (12) - MAIN FRAME
№
Артикул
Название
Примечание
Количество
1
829303C1
SIDE - header, left-hand, 10-1/2 and 12-1/2 foot, no longer available
1шт.
1
829306C1
SIDE - header, left-hand, 14-1/2 foot, no longer available
1шт.
1
829308C1
SIDE ASSY.
SIDE - header, left-hand, 16-1/2 foot
1шт.
1
829310C1
SIDE ASSY.
SIDE - header, left-hand, 19-1/2 foot
1шт.
1
830067C1
SIDE ASSY.
SIDE - header, left-hand, 24-1/2 foot
1шт.
2
829304C1
SIDE - header, right-hand, 10-1/2 foot, no longer available
1шт.
2
829305C1
SIDE - header, right-hand, 12-1/2 foot, no longer available
1шт.
2
829307C1
SIDE ASSY.
SIDE - header, right-hand, 14-1/2 foot
1шт.
2
829309C1
SIDE - header, right-hand, 16-1/2 foot, no longer available
1шт.
2
829311C1
SIDE - header, right-hand, 19-1/2 foot, no longer available
1шт.
2
830068C1
SIDE - header, right-hand, 24-1/2 foot
1шт.
434-512
CARRIAGE BOLT,Sht Sq Nk, 5/16" - 18 x 3/4", Gr 5
BOLT - carriage, 5/16 NC x 3/4 inch, Fourteen used with 10-1/2, 12-1/2, 14-1/2, 16-1/2 foot; Sixteen used with 19-1/2 foot; Twenty-one used with 24-1/2 foot (Replaces bolt 598802R1)
1шт.
434-58
CARRIAGE BOLT,Sht Sq Nk, 5/16" - 18 x 1/2", Gr 5
BOLT CARRIAGE, , two used with 10-1/2 foot; four used with 12-1/2 foot; six used with 14-1/2 foot; eight used with 16-1/2 foot; ten used with 19-1/2 foot; eleven used with 24-1/2 foot (Replaces bolt 598801R1) Short NK, 5/16"-18 x 1/2", G5, Full Thd
1шт.
231-5145
SERRATED NUT,Flg, USR, 5/16"-18
NUT - hex serrated flange, 5/16 inch NC, one per bolt
1шт.
495-81119
WASHER,8.74mm ID x 31.75mm OD x 1.7mm Thk
- flat, 11/32 x 1-1/4 x 1/16 inch, one per bolt 598801R1
1шт.
3
829274C2
FRAME - header, 10-1/2 foot, no longer available
1шт.
3
829275C2
FRAME - header, 12-1/2 foot, no longer available
1шт.
3
829276C3
FRAME
- header, 14-1/2 foot
1шт.
3
829277C3
FRAME - header, 16-1/2 foot, no longer available
1шт.
3
829278C3
FRAME - header, 19-1/2 foot, no longer available
1шт.
3
830071C2
FRAME - header, 24-1/2 foot, also order support 829300C3, no longer available
1шт.
113-417
BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5, Full Thd
(Replaces bolt 180175) Hex, 1/2"-13 x 1 1/4", G5, Full Thd
3шт.
129-105
NUT,Hex, 1/2" - 13, Gr 5
(Replaces nut 120378) 1/2"-13, G5
3шт.
192-23
LOCK WASHER,1/2"
WASHER, LOCK, (Replaces washer 120384) 1/2"
3шт.
Выбрано товаров: 24
