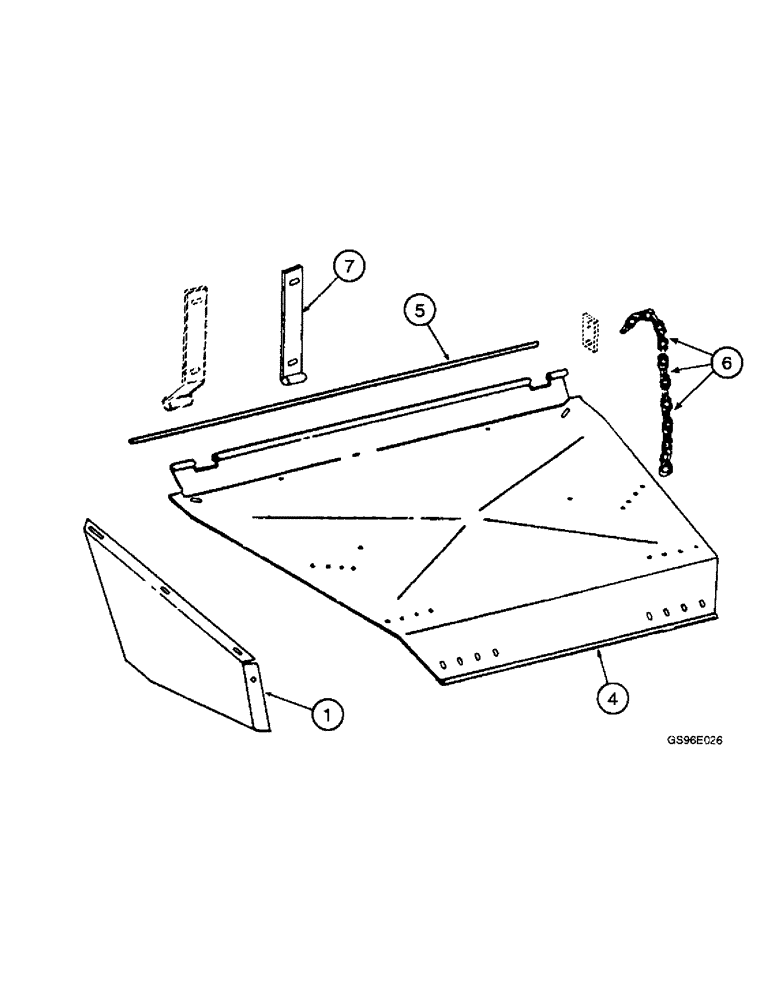

Запчасти Case IH INTERNATIONAL (2-52) - REAR DEFLECTOR, HEADER MOUNTED, CONDITIONER (12) - MAIN FRAME

1

828704C1

DEFLECTOR

- rear side, left-hand

1шт.

1

828705C1

DEFLECTOR

- rear side, right-hand

1шт.

256873

BOLT,Hex Serr, 5/16" - 18 x 1/2", 5SPL, Full Thd

6шт.

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT - hex serrated flange, 5/16 inch NC

6шт.

4

828102C2

DEFLECTOR

- rear

1шт.

5

828101C2

ROD

- deflector pivot

1шт.

6

829565C1

CHAIN (AG)

CHAIN - shield adjusting, 24 inch (615 mm) long, cut for 10 gauge (0.133 inch) chain

2шт.

409-7512

BOLT,Hex Flg, 5/16" - 18 x 3/4", Spcl

- hex serrated flange, 5/16 NC x 3/4 inch

2шт.

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT - hex serrated flange, 5/16 inch NC

2шт.

495-81117

WASHER,.344" x 1" x .120"

- flat, 11/32 x 1 x 7/64 inch (Replaces washer 20893R1)

2шт.

7

828702C1

SUPPORT

- deflector hinge

2шт.

113-424

BOLT,Hex, 1/2" - 13 x 1", Gr 5, Full Thd

(Replaces bolt 180173) Hex, 1/2"-13 x 1", G5, Full Thd

2шт.

113-207

BOLT,Hex, 3/8" - 16 x 1", Gr 5

(Replaces bolt 180122) Hex, 3/8"-16 x 1", G5, Full Thd

2шт.

129-105

NUT,Hex, 1/2" - 13, Gr 5

(Replaces nut 120378) 1/2"-13, G5

2шт.

425-106

NUT,3/8"-16, Cl 5

2шт.

192-23

LOCK WASHER,1/2"

WASHER, LOCK, (Replaces washer 120384) 1/2"

2шт.

192-21

LOCK WASHER,3/8"

WASHER, LOCK, (Replaces washer 120382) 3/8"

2шт.
