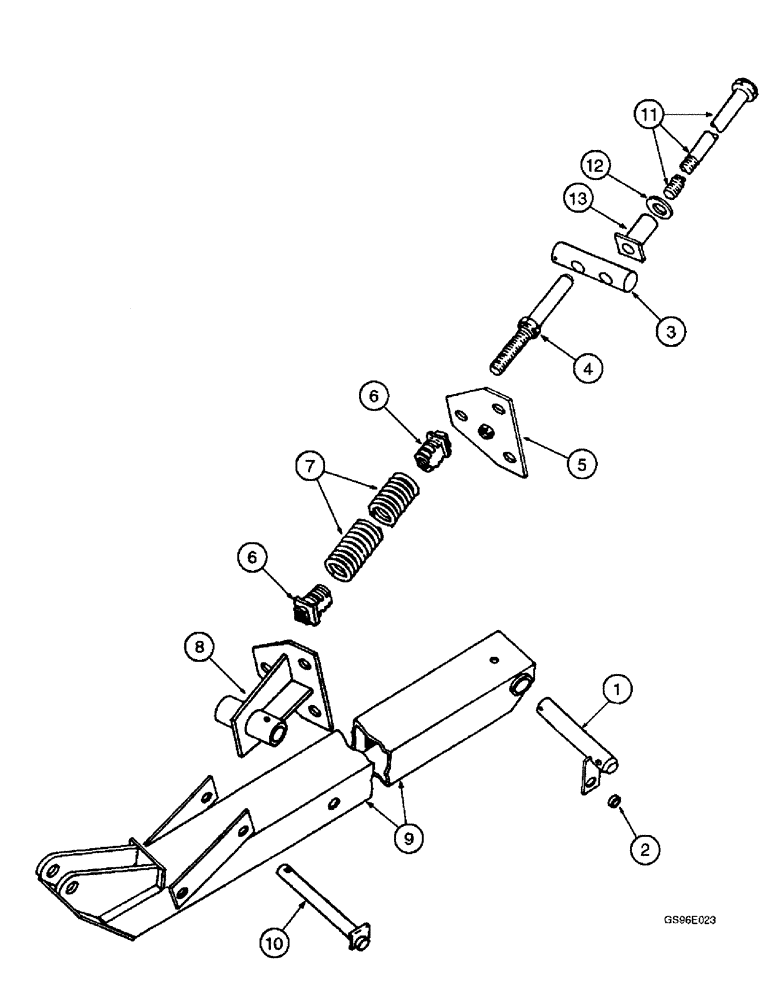

Запчасти Case IH INTERNATIONAL (2-46) - HEADER FLOTATION AND ARM, 275 THRU 375 WINDROWER (12) - MAIN FRAME

1

595668R11

PIN

- lift arm rear

2шт.

326-732

BOLT,Hex, 7/16" - 14 x 2", Gr 8

(Replaces bolt 180153) Hex, 7/16"-14 x 2", G8

2шт.

129-104

NUT,7/16"-14, G5

(Replaces nut 271501) 7/16"-14, G5

2шт.

192-22

LOCK WASHER,7/16"

WASHER, LOCK, (Replaces washer 120383) 7/16"

2шт.

495-81011

WASHER,0.47" ID x 1.25" OD x 0.12" Thk

- flat, 15/32 x 1-1/4 x 1/8 inch (Replaces washer 893862R1)

2шт.

132-157

COTTER PIN,Ext Prong Sq Cut, 1/4" x 2 1/2"

Pin, Split (Cotter), (Replaces pin 103424) 1/4" x 2 1/2"

2шт.

2

595670R1

SPACER

- lift arm pin

2шт.

3

826556C1

PIN

- spring anchor upper

2шт.

495-81211

WASHER,34.14mm ID x 50.8mm OD x 3.4mm Thk

- flat, 1-11/32 x 2 x 7/64 inch (Replaces washer 21717R1)

2шт.

132-157

COTTER PIN,Ext Prong Sq Cut, 1/4" x 2 1/2"

Pin, Split (Cotter), (Replaces pin 103424) 1/4" x 2 1/2"

2шт.

4

595681R11

STUD

- spring alignment

2шт.

425-1414

JAM NUT,Jam, 7/8"-9, G5

(Replaces nut 426898) Jam, 7/8"-9, G5

2шт.

5

826732C1

BRACKET

- spring upper

2шт.

113-807

BOLT,Hex, 7/8" - 9 x 2", Gr 5

- hex, 7/8 NC x 2 inch (Replaces bolt 271815)

10шт.

192-29

LOCK WASHER,7/8"

(Replaces washer 131047) 7/8"

10шт.

6

596400R1

PLUG - spring, no longer available

12шт.

7

596399R2

SPRING

- float

6шт.

8

826759C1

BRACKET

- spring lower

2шт.

219-89

LUBE NIPPLE,45 Degree Elbow, 1/8" NPTF

FITTING - grease, 45º, self-tapping, 1/8 PT x 25/32 inch (Replaces fitting 19628R91)

2шт.

9

828631C1

ARM

- platform lift

2шт.

113-731

BOLT,Hex, 3/4" - 10 x 3-1/4", Gr 5

- hex, 3/4 NC x 3-1/4 inch (Replaces bolt 271776)

2шт.

129-108

NUT,3/4"-10, G5

(Replaces nut 220086) 3/4"-10, G5

2шт.

192-27

LOCK WASHER,3/4"

WASHER, LOCK, (Replaces washer 131046) 3/4"

2шт.

219-8

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, 1/4"-28 NPT x .54" lg

2шт.

10

826659C1

PIN

- float spring lower anchor

2шт.

11

595683R2

BOLT,Hex, 7/8" - 9 x 19.50mm

- spring adjusting

2шт.

425-1414

JAM NUT,Jam, 7/8"-9, G5

(Replaces nut 426898) Jam, 7/8"-9, G5

2шт.

12

680457R1

WASHER

- thrust, adjusting bolt (Replaces washer 595685R1)

2шт.

13

595996R92

ANCHOR - spring, adjusting bolt, no longer available

2шт.
