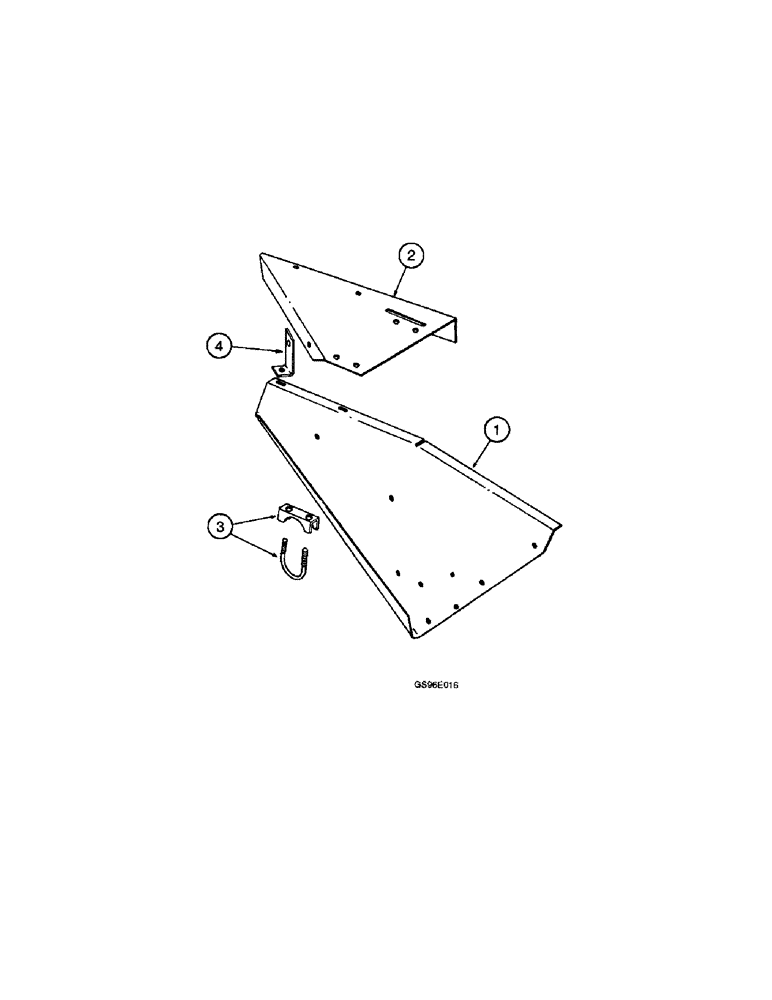

Запчасти Case IH INTERNATIONAL (2-32[A]) - DIVIDER ATTACHMENT, FOR USE WITH TALL CROPS (12) - MAIN FRAME

1

829162C3

EXTENSION

- divider side, left-hand (Replaces extension 829162C2)

1шт.

1

829163C3

EXTENSION

- divider side, right-hand (Shown) (Replaces extension 829163C2)

1шт.

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

(Replaces bolt 180120) Hex, 3/8"-16 x 3/4", G5, Full Thd

4шт.

413-614

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5

2шт.

425-106

NUT,3/8"-16, Cl 5

6шт.

192-21

LOCK WASHER,3/8"

WASHER, LOCK, (Replaces washer 120382) 3/8"

6шт.

2

829160C2

EXTENSION

- divider top, left-hand

1шт.

2

829161C2

EXTENSION

- divider top, right-hand (Shown)

1шт.

434-512

CARRIAGE BOLT,Sht Sq Nk, 5/16" - 18 x 3/4", Gr 5

BOLT - carriage, 5/16 NC x 3/4 inch (Replaces bolt 598802R1)

4шт.

425-105

NUT,5/16"-18, G5

- hex, 5/16 inch NC

4шт.

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

4шт.

495-81114

WASHER,8.74mm ID x 19.05mm OD x 1.7mm Thk

- flat, 11/32 x 3/4 x 3/64 inch (Replaces washer 619855R1)

4шт.

3

119442H1

CLAMP

- divider extension

4шт.

4

827842C1

SUPPORT

- top extension, used with lean bar in low position

2шт.

413-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

- hex, 5/16 NC x 3/4 inch (Replaces bolt 180077)

4шт.

425-105

NUT,5/16"-18, G5

- hex, 5/16 inch NC

4шт.

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

4шт.

495-81114

WASHER,8.74mm ID x 19.05mm OD x 1.7mm Thk

- flat, 11/32 x 3/4 x 3/64 inch (Replaces washer 619855R1)

2шт.
