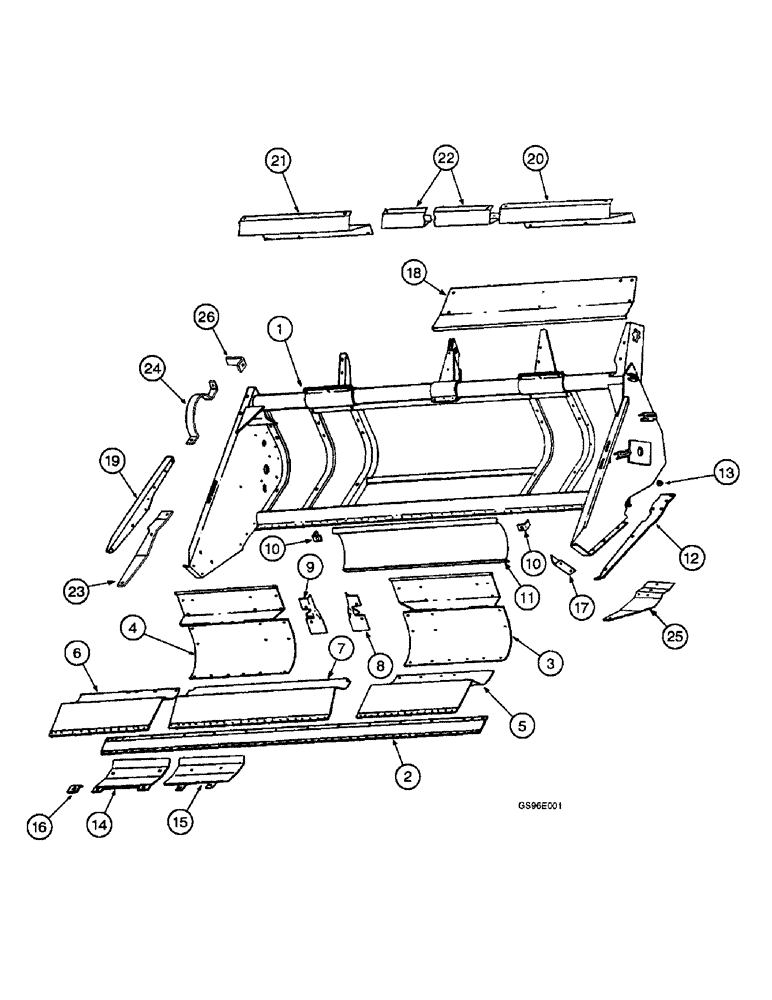

Запчасти Case IH INTERNATIONAL (2-02) - HEADER FRAME (12) - MAIN FRAME

1

828239C7

FRAME ASSY

FRAME - header main, 12 foot (Replaces frame 828239C6)

1шт.

1

828240C7

FRAME ASSY

FRAME - header main, 14 foot (Replaces frame 828240C6)

1шт.

113-207

BOLT,Hex, 3/8" - 16 x 1", Gr 5

(Replaces bolt 180122) Hex, 3/8"-16 x 1", G5, Full Thd

2шт.

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

(Replaces bolt 180120) Hex, 3/8"-16 x 3/4", G5, Full Thd

2шт.

113-417

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5, Full Thd

(Replaces bolt 180175) Hex, 1/2"-13 x 1 1/4", G5, Full Thd

9шт.

425-106

NUT,3/8"-16, Cl 5

10шт.

129-105

NUT,Hex, 1/2" - 13, Gr 5

(Replaces nut 120378) 1/2"-13, G5

9шт.

231-5148

FLANGE NUT,Flg, USR, 1/2"-13

2шт.

192-21

LOCK WASHER,3/8"

WASHER, LOCK, (Replaces washer 120382) 3/8"

10шт.

192-23

LOCK WASHER,1/2"

WASHER, LOCK, (Replaces washer 120384) 1/2"

9шт.

495-81136

WASHER,10.31mm ID x 25.4mm OD x 3.81mm Thk

- flat, 13/32 x 1 x 7/64 inch (Replaces washer 20803R1)

3шт.

2

827934C2

GUARD

- lower stone, 12 foot

1шт.

2

827935C2

GUARD

- lower stone, 14 foot

1шт.

433-728

CARRIAGE BOLT,Sq Nk, 7/16" - 14 x 1 3/4", Gr 5

BOLT - carriage, 7/16 NC x 1-3/4 inch (Replaces bolt 632593R1)

2шт.

111-420

CARRIAGE BOLT

BOLT - carriage, 7/16 NC x 1-1/4 inch, type 1, eight used with 12 foot frame, ten used with 14 foot frame (Replaces bolt 18695R1)

1шт.

129-104

NUT,7/16"-14, G5

1 used per bolt 111-420 (Replaces nut 271501) 7/16"-14, G5

1шт.

192-22

LOCK WASHER,7/16"

WASHER, LOCK, , 1 used per bolt 111-420 7/16"

1шт.

495-81011

WASHER,0.47" ID x 1.25" OD x 0.12" Thk

- flat, 15/32 x 1-1/4 x 1/8 inch, ten used with 12 foot frame, twelve used with 14 foot frame (Replaces washer 893862R1)

1шт.

231-1447

NUT,7/16"-14, GB

NUT, LOCK, (Replaces nut 20048R1) 7/16"-14, GB

2шт.

3

828248C1

ASSEMBLY

SECTION - bottom sheet, left-hand rear, used with 12 foot frame

1шт.

3

828246C1

ASSEMBLY

SECTION - bottom sheet, left-hand rear, used with 14 foot frame

1шт.

434-512

CARRIAGE BOLT,Sht Sq Nk, 5/16" - 18 x 3/4", Gr 5

BOLT - carriage, 5/16 NC x 3/4 inch (Replaces bolt 598802R1)

9шт.

434-516

CARRIAGE BOLT,Sht Sq Nk, 5/16" - 18 x 1", Gr 5

BOLT - carriage, 5/16 NC x 1 inch (Replaces bolt 598803R1)

2шт.

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT - hex serrated flange, 5/16 inch NC

11шт.

4

828249C1

ASSEMBLY

SECTION - bottom sheet, right-hand rear, used with 12 foot frame

1шт.

4

828247C1

ASSEMBLY

SECTION - bottom sheet, right-hand rear, used with 14 foot frame

1шт.

434-512

CARRIAGE BOLT,Sht Sq Nk, 5/16" - 18 x 3/4", Gr 5

BOLT - carriage, 5/16 NC x 3/4 inch (Replaces bolt 598802R1)

9шт.

434-516

CARRIAGE BOLT,Sht Sq Nk, 5/16" - 18 x 1", Gr 5

BOLT - carriage, 5/16 NC x 1 inch (Replaces bolt 598803R1)

2шт.

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT - hex serrated flange, 5/16 inch NC

11шт.

5

828244C2

ASSEMBLY

SECTION - bottom sheet, left-hand front, used with 12 foot frame

1шт.

5

828242C2

ASSEMBLY

SECTION - bottom sheet, left-hand front, used with 14 foot frame

1шт.

434-512

CARRIAGE BOLT,Sht Sq Nk, 5/16" - 18 x 3/4", Gr 5

BOLT - carriage, 5/16 NC x 3/4 inch (Replaces bolt 598802R1)

2шт.

434-58

CARRIAGE BOLT,Sht Sq Nk, 5/16" - 18 x 1/2", Gr 5

BOLT CARRIAGE, , four used with 12 foot frame, six used with 14 foot frame (Replaces bolt 598801R1) Short NK, 5/16"-18 x 1/2", G5, Full Thd

1шт.

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT - hex serrated flange, 5/16 inch NC, six used with 12 foot frame, eight used with 14 foot frame

1шт.

498-81001

SQ HOLE WASHER,.344" x 3/4" x .060", Sq. Hole

- square hole, 11/32 x 3/4 x 3/64 inch, two used with used 12 foot frame, four used with 14 foot frame (Replaces washer 23050R1)

1шт.

6

828245C2

ASSEMBLY

SECTION - bottom sheet, right-hand front, used with 12 foot frame

1шт.

6

828243C2

ASSEMBLY

SECTION - bottom sheet, right-hand front, used with 14 foot frame

1шт.

434-512

CARRIAGE BOLT,Sht Sq Nk, 5/16" - 18 x 3/4", Gr 5

BOLT - carriage, 5/16 NC x 3/4 inch (Replaces bolt 598802R1)

2шт.

434-58

CARRIAGE BOLT,Sht Sq Nk, 5/16" - 18 x 1/2", Gr 5

BOLT CARRIAGE, , four used with 12 foot frame, seven used with 14 foot frame (Replaces bolt 598801R1) Short NK, 5/16"-18 x 1/2", G5, Full Thd

1шт.

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT - hex serrated flange, 5/16 inch NC, six used with 12 foot frame, eight used with 14 foot frame

1шт.

498-81001

SQ HOLE WASHER,.344" x 3/4" x .060", Sq. Hole

- square hole, 11/32 x 3/4 x 3/64 inch, two used with 12 foot frame, four used with 14 foot frame (Replaces washer 23050R1)

1шт.

7

829960C1

ASSEMBLY

SECTION - bottom sheet, center, used with 12 foot frame

1шт.

7

828282C1

ASSEMBLY

SECTION - bottom sheet, center, used with 14 foot frame

1шт.

434-512

CARRIAGE BOLT,Sht Sq Nk, 5/16" - 18 x 3/4", Gr 5

BOLT - carriage, 5/16 NC x 3/4 inch (Replaces bolt 598802R1)

12шт.

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT - hex serrated flange, 5/16 inch NC

12шт.

8

828777C1

DEFLECTOR

- left-hand

1шт.

9

828778C1

DEFLECTOR

- right-hand

1шт.

434-512

CARRIAGE BOLT,Sht Sq Nk, 5/16" - 18 x 3/4", Gr 5

BOLT - carriage, 5/16 NC x 3/4 inch (Replaces bolt 598802R1)

4шт.

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT - hex serrated flange, 5/16 inch NC

4шт.

10

828740C1

ANGLE

- center section support

2шт.

434-616

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1", Gr 5

BOLT - carriage, 3/8 NC x 1 inch (Replaces bolt 495967R1)

2шт.

425-106

NUT,3/8"-16, Cl 5

2шт.

192-21

LOCK WASHER,3/8"

WASHER, LOCK, (Replaces washer 120382) 3/8"

2шт.

495-61041

WASHER,10.31mm ID x 25.4mm OD x 1.6mm Thk

2шт.

11

828741C1

ASSEMBLY

SECTION - center

1шт.

434-512

CARRIAGE BOLT,Sht Sq Nk, 5/16" - 18 x 3/4", Gr 5

BOLT - carriage, 5/16 NC x 3/4 inch (Replaces bolt 598802R1)

10шт.

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT - hex serrated flange, 5/16 inch NC

10шт.

12

827799C1

SOLE

- header side, left-hand

1шт.

19058R1

BOLT - plow, 1/2 NC x 1 inch, no longer available, purchase locally 1/2"-13 x 1", G2, Full Thd

1шт.

434-824

CARRIAGE BOLT,Sht Sq Nk, 1/2" - 13 x 1 1/2", Gr 5

BOLT - carriage, 1/2 NC x 1-1/2 inch

1шт.

129-105

NUT,Hex, 1/2" - 13, Gr 5

(Replaces nut 120378) 1/2"-13, G5

2шт.

192-23

LOCK WASHER,1/2"

WASHER, LOCK, (Replaces washer 120384) 1/2"

2шт.

13

M42296

SPACER,1/2" X-Strng Pipe x 1/2"

- pipe, 1/2 ID x 7/16 inch, sole (Replaces spacer 622535R1)

1шт.

14

828174C1

SOLE

- skid shoe, six used with 12 foot frame, seven used with 14 foot frame, no longer used, order shoe 831584C1, item 15, and two 433-724 bolts

1шт.

111-422

CARRIAGE BOLT,Short NK, 7/16"-14 x 2", G2

BOLT, CARRIAGE, , Left-hand side (Replaces bolt 18698R1) Short NK, 7/16"-14 x 2", G2

1шт.

433-728

CARRIAGE BOLT,Sq Nk, 7/16" - 14 x 1 3/4", Gr 5

BOLT - carriage, 7/16 NC x 1-3/4 inch (Replaces bolt 632593R1)

3шт.

129-104

NUT,7/16"-14, G5

(Replaces nut 271501) 7/16"-14, G5

4шт.

15

831584C1

SHOE

- skid, five used with 12 foot frame, six used with 14 foot frame

1шт.

433-728

CARRIAGE BOLT,Sq Nk, 7/16" - 14 x 1 3/4", Gr 5

BOLT - carriage, 7/16 NC x 1-3/4 inch (Replaces bolt 632593R1)

3шт.

433-724

CARRIAGE BOLT,Sq Nk, 7/16" - 14 x 1 1/2", Gr 5

BOLT - carriage, 7/16 NC x 1-1/2 inch (Replaces bolts 18696R1 and 168930C1)

4шт.

111-422

CARRIAGE BOLT,Short NK, 7/16"-14 x 2", G2

BOLT, CARRIAGE, (Replaces bolt 18698R1) Short NK, 7/16"-14 x 2", G2

1шт.

495-81011

WASHER,0.47" ID x 1.25" OD x 0.12" Thk

- flat, 15/32 x 1-1/4 x 1/8 inch (Replaces washer 893862R1)

4шт.

192-22

LOCK WASHER,7/16"

WASHER, LOCK, (Replaces washer 120383) 7/16"

4шт.

129-104

NUT,7/16"-14, G5

(Replaces nut 271501) 7/16"-14, G5

8шт.

16

824785C1

CLAMP

- sole support, two per sole, for use with 828174C1 sole

1шт.

433-836

CARRIAGE BOLT,Sq Nk, 1/2" - 13 x 2 1/4", Gr 5

BOLT - carriage, 1/2 NC x 2-1/4 inch, one per clamp 824785C1 (Replaces bolt 486180R1)

1шт.

129-105

NUT,Hex, 1/2" - 13, Gr 5

1 per bolt 433-836 (Replaces nut 120378) 1/2"-13, G5

1шт.

192-23

LOCK WASHER,1/2"

WASHER, LOCK, , 1 per bolt 433-836 (Replaces washer 120384) 1/2"

1шт.

495-81025

WASHER,13.49mm ID x 31.75mm OD x 4.93mm Thk

- flat, 17/32 x 1-1/4 x 5/32 inch, use six per bolt 433-836 (Replaces washer 21375R1)

1шт.

17

829461C1

SHIELD

- tine, left-hand

1шт.

113-417

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5, Full Thd

(Replaces bolt 180175) Hex, 1/2"-13 x 1 1/4", G5, Full Thd

2шт.

231-5148

FLANGE NUT,Flg, USR, 1/2"-13

2шт.

18

829584C1

SHIELD

- center opening

1шт.

434-512

CARRIAGE BOLT,Sht Sq Nk, 5/16" - 18 x 3/4", Gr 5

BOLT - carriage, 5/16 NC x 3/4 inch (Replaces bolt 598802R1)

1шт.

425-105

NUT,5/16"-18, G5

- hex, 5/16 inch NC

4шт.

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

4шт.

281-5488

SELF-TAP SCREW,Hex Wash Hd, 5/16"-18 x 1/2"

SCREW - hex, 5/16 NC x 1/2 inch (Replaces screw 850677C1)

2шт.

19

829025C2

SUPPORT

- stiffener, right-hand side

1шт.

434-612

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 3/4", Gr 5

BOLT - carriage, 3/8 NC x 3/4 inch (Replaces bolt 598809R1)

2шт.

113-207

BOLT,Hex, 3/8" - 16 x 1", Gr 5

(Replaces bolt 180122) Hex, 3/8"-16 x 1", G5, Full Thd

2шт.

425-106

NUT,3/8"-16, Cl 5

5шт.

192-21

LOCK WASHER,3/8"

WASHER, LOCK, (Replaces washer 120382) 3/8"

5шт.

20

830337C1

DEFLECTOR

- tall crop, 12 foot, left-hand

1шт.

20

830339C1

DEFLECTOR

- tall crop, 14 foot, left-hand

1шт.

409-7512

BOLT,Hex Flg, 5/16" - 18 x 3/4", Spcl

- hex serrated flange, 5/16 NC x 3/4 inch

1шт.

256873

BOLT,Hex Serr, 5/16" - 18 x 1/2", 5SPL, Full Thd

2шт.

21

830338C1

DEFLECTOR

- tall crop, 12 foot, right-hand

1шт.

21

830340C1

DEFLECTOR

- tall crop, 14 foot, right-hand

1шт.

409-7512

BOLT,Hex Flg, 5/16" - 18 x 3/4", Spcl

- hex serrated flange, 5/16 NC x 3/4 inch

1шт.

256873

BOLT,Hex Serr, 5/16" - 18 x 1/2", 5SPL, Full Thd

2шт.

22

830304C1

DEFLECTOR

- tall crop center

1шт.

23

831534C1

SOLE

- right-hand divider

1шт.

19040R1

CARRIAGE BOLT,#3, 7/16" - 14 x 1", Gr 2

BOLT - plow, 7/16 NC x 1 inch, type 1

1шт.

434-718

CARRIAGE BOLT,Sht Sq Nk, 7/16" - 14 x 1 1/8", Gr 5

BOLT - carriage, 7/16 NC x 1-1/8 inch (Replaces bolt 609120R1)

1шт.

434-616

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1", Gr 5

BOLT - carriage, 3/8 NC x 1 inch (Replaces bolt 495967R1)

1шт.

425-106

NUT,3/8"-16, Cl 5

1шт.

129-104

NUT,7/16"-14, G5

(Replaces nut 271501) 7/16"-14, G5

2шт.

192-21

LOCK WASHER,3/8"

WASHER, LOCK, (Replaces washer 120382) 3/8"

1шт.

24

831755C1

BRACKET

SHROUD - auger end

2шт.

192-22

LOCK WASHER,7/16"

WASHER, LOCK, (Replaces washer 120383) 7/16"

2шт.

434-512

CARRIAGE BOLT,Sht Sq Nk, 5/16" - 18 x 3/4", Gr 5

BOLT - carriage, 5/16 NC x 3/4 inch (Replaces bolt 598802R1)

2шт.

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT - hex serrated flange, 5/16 inch NC

2шт.

25

831456C1

SOLE

- header, left-hand side wide

1шт.

19059R1

PLOW BOLT,#3, 1/2" - 13 x 1 1/4", Gr 2

BOLT - flat head square neck, 1/2 NC x 1-1/4 inch

1шт.

433-828

CARRIAGE BOLT,Sq Nk, 1/2" - 13 x 1 3/4", Gr 5

BOLT - carriage, 1/2 NC x 1-3/4 inch (Replaces bolt 466972R1)

1шт.

434-620

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1 1/4", Gr 5

BOLT, CARRIAGE, (Replaces bolt 550796R1) Short NK, 3/8"-16 x 1 1/4", G5, Full Thd

2шт.

433-728

CARRIAGE BOLT,Sq Nk, 7/16" - 14 x 1 3/4", Gr 5

BOLT - carriage, 7/16 NC x 1-3/4 inch (Replaces bolt 632593R1)

1шт.

129-105

NUT,Hex, 1/2" - 13, Gr 5

(Replaces nut 120378) 1/2"-13, G5

2шт.

192-23

LOCK WASHER,1/2"

WASHER, LOCK, (Replaces washer 120384) 1/2"

2шт.

425-106

NUT,3/8"-16, Cl 5

2шт.

192-21

LOCK WASHER,3/8"

WASHER, LOCK, (Replaces washer 120382) 3/8"

2шт.

129-104

NUT,7/16"-14, G5

(Replaces nut 271501) 7/16"-14, G5

1шт.

26

831818C1

ANGLE

- reflector support

1шт.

113-207

BOLT,Hex, 3/8" - 16 x 1", Gr 5

(Replaces bolt 180122) Hex, 3/8"-16 x 1", G5, Full Thd

1шт.

425-106

NUT,3/8"-16, Cl 5

1шт.

192-21

LOCK WASHER,3/8"

WASHER, LOCK, (Replaces washer 120382) 3/8"

1шт.
