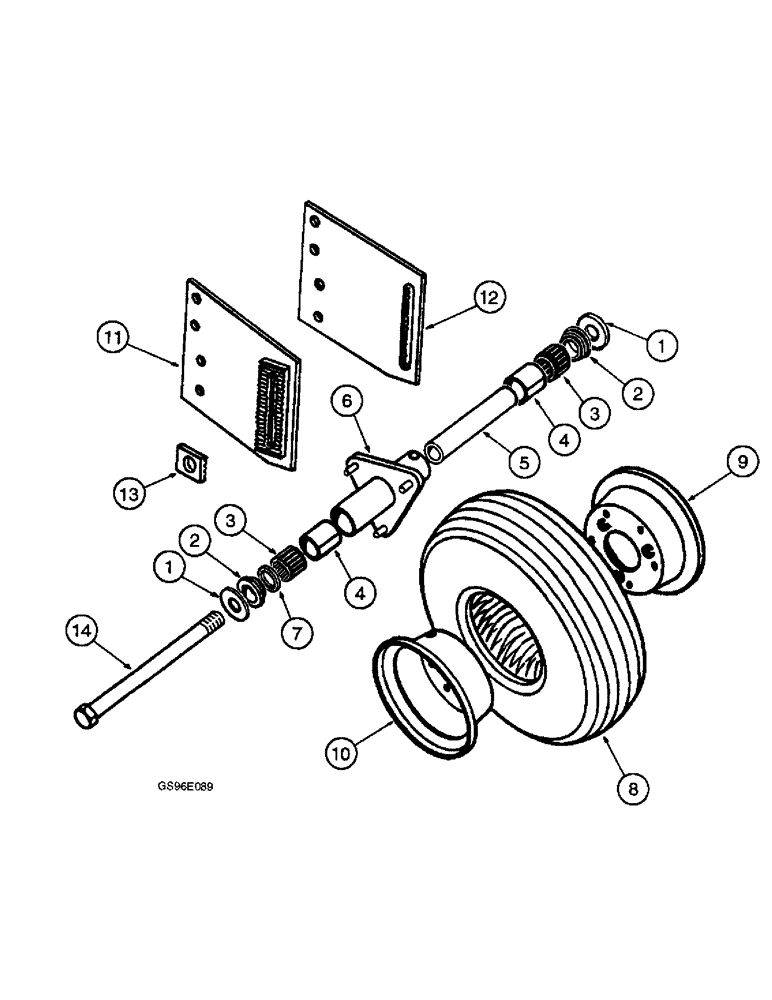

Запчасти Case IH INTERNATIONAL (4-46) - HEADER GAUGE WHEEL (11) - WHEELS

1

619505R1

WASHER

- wheel hub

4шт.

2

617383R1

BUSHING,26.19mm ID x 35.13mm OD x 6.35mm L

RETAINER - wheel

4шт.

3

568029R91

BEARING ASSY,25.4mm ID x 35mm OD x 25.4mm W

BEARING - wheel (Replaces bearing 561478R91)

4шт.

4

1960612C1

SPACER

- wheel (Replaces spacer 617382R1)

3шт.

5

617387R1

SLEEVE,19.3mm ID x 25.4mm OD x 146.05mm L

- wheel hub support

2шт.

6

617384R91

HUB

ASSEMBLY - gauge wheel

2шт.

607140R1

BOLT,3/8" - 24 x 7/8", Steel

STUD - 3/8 NF x 7/8 inch

6шт.

607141R1

NUT

- hex, 3/8 inch NF

6шт.

219-8

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, 1/4"-28 NPT x .54" lg

2шт.

7

1960612C1

SPACER

- hub spacer (Replaces washer 617381R1)

1шт.

8

REF

INSTRUCTION

TIRE - 5.30/4.50, 6 ply rib with TR-87 valve

2шт.

9

596310R1

WHEEL

DISK - wheel inner

2шт.

10

596311R1

WHEEL

DISK - wheel outer

2шт.

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

(Replaces bolt 180120) Hex, 3/8"-16 x 3/4", G5, Full Thd

12шт.

425-106

NUT,3/8"-16, Cl 5

12шт.

192-21

LOCK WASHER,3/8"

WASHER, LOCK, (Replaces washer 120382) 3/8"

12шт.

11

832028C1

SUPPORT

- gauge wheel, left-hand outer and right-hand inner

2шт.

12

832029C1

SUPPORT

- gauge wheel, right-hand outer and left-hand inner

2шт.

113-424

BOLT,Hex, 1/2" - 13 x 1", Gr 5, Full Thd

(Replaces bolt 180173) Hex, 1/2"-13 x 1", G5, Full Thd

4шт.

113-417

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5, Full Thd

(Replaces bolt 180175) Hex, 1/2"-13 x 1 1/4", G5, Full Thd

3шт.

129-105

NUT,Hex, 1/2" - 13, Gr 5

(Replaces nut 120378) 1/2"-13, G5

7шт.

192-23

LOCK WASHER,1/2"

WASHER, LOCK, (Replaces washer 120384) 1/2"

7шт.

13

594414R1

WASHER

- axle adjuster

4шт.

14

113-791

BOLT,Hex, 3/4" - 10 x 8-1/2", Gr 5

- wheel support, hex, 3/4 NC x 8-1/2 inch (Replaces bolt 21702R1)

2шт.

129-108

NUT,3/4"-10, G5

(Replaces nut 220086) 3/4"-10, G5

2шт.

192-27

LOCK WASHER,3/4"

WASHER, LOCK, (Replaces washer 131046) 3/4"

2шт.
