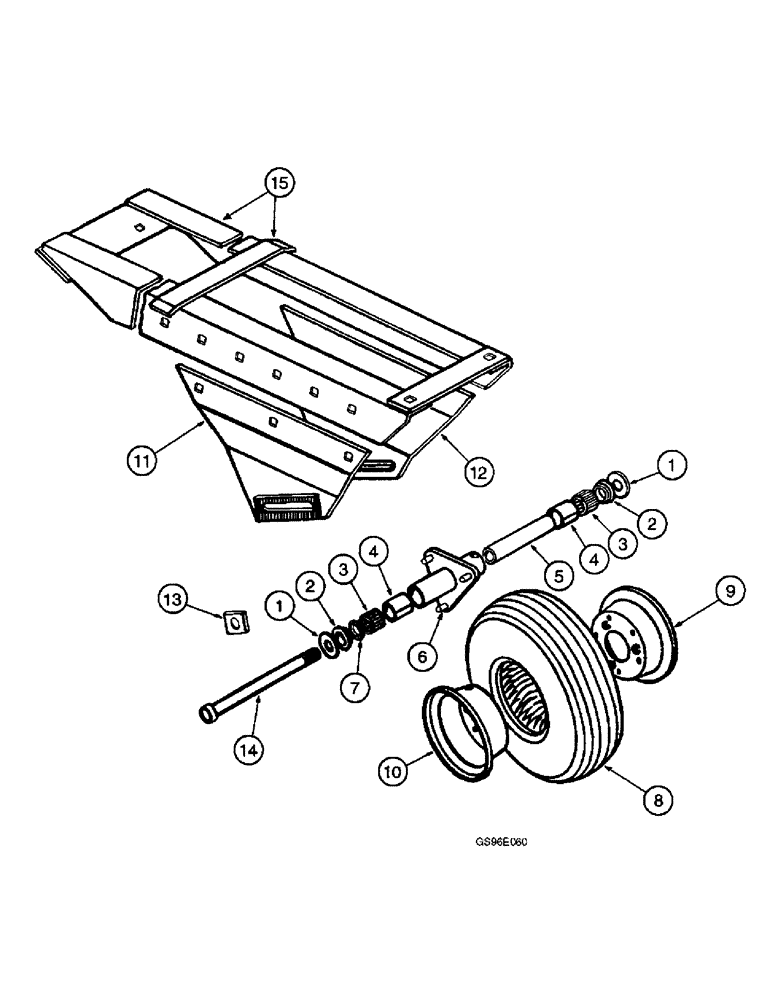

Запчасти Case IH INTERNATIONAL (3-66) - HEADER GAUGE WHEEL (11) - WHEELS
№
Артикул
Название
Примечание
Количество
1
619505R1
WASHER
- wheel hub
4шт.
2
617383R1
BUSHING,26.19mm ID x 35.13mm OD x 6.35mm L
RETAINER - wheel
4шт.
3
568029R91
BEARING ASSY,25.4mm ID x 35mm OD x 25.4mm W
BEARING - wheel (Replaces bearing 561478R91)
4шт.
4
1960612C1
SPACER
- wheel (Replaces spacer 617382R1)
4шт.
5
617387R1
SLEEVE,19.3mm ID x 25.4mm OD x 146.05mm L
- wheel hub support
2шт.
6
617384R91
HUB
ASSEMBLY - gauge wheel
2шт.
607140R1
BOLT,3/8" - 24 x 7/8", Steel
STUD - 3/8 NF x 7/8 inch
6шт.
607141R1
NUT
- hex, 3/8 inch NF
6шт.
219-8
LUBE NIPPLE,1/4" - 28 NPTF
NIPPLE, LUBE, 1/4"-28 NPT x .54" lg
2шт.
7
1960612C1
SPACER
WASHER - hub spacer (Replaces washer 617381R1)
2шт.
8
REF
INSTRUCTION
TIRE - 5.30/4.50, 6 ply rib with TR-87 valve
2шт.
9
596310R1
WHEEL
DISK - wheel inner
2шт.
10
596311R1
WHEEL
DISK - wheel outer
2шт.
BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd
(Replaces bolt 180120) Hex, 3/8"-16 x 3/4", G5, Full Thd
12шт.
425-106
NUT,3/8"-16, Cl 5
12шт.
192-21
LOCK WASHER,3/8"
WASHER, LOCK, (Replaces washer 120382) 3/8"
12шт.
11
594411R11
SUPPORT
- gauge wheel axle, left-hand
2шт.
12
594412R11
SUPPORT
- gauge wheel axle, right-hand
2шт.
434-616
CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1", Gr 5
BOLT - carriage, 3/8 NC x 1 inch (Replaces bolt 495967R1)
12шт.
425-106
NUT,3/8"-16, Cl 5
12шт.
192-21
LOCK WASHER,3/8"
WASHER, LOCK, (Replaces washer 120382) 3/8"
12шт.
13
594414R1
WASHER
- axle adjuster
4шт.
14
113-791
BOLT,Hex, 3/4" - 10 x 8-1/2", Gr 5
- hex, 3/4 NC x 8-1/2 inch, wheel support (Replaces bolt 21702R1)
2шт.
129-108
NUT,3/4"-10, G5
2шт.
192-27
LOCK WASHER,3/4"
WASHER, LOCK, (Replaces washer 131046) 3/4"
2шт.
15
829432C1
SUPPORT
- gauge wheel
2шт.
434-616
CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1", Gr 5
BOLT - carriage, 3/8 NC x 1 inch (Replaces bolt 495967R1)
8шт.
425-106
NUT,3/8"-16, Cl 5
8шт.
192-21
LOCK WASHER,3/8"
WASHER, LOCK, (Replaces washer 120382) 3/8"
8шт.
