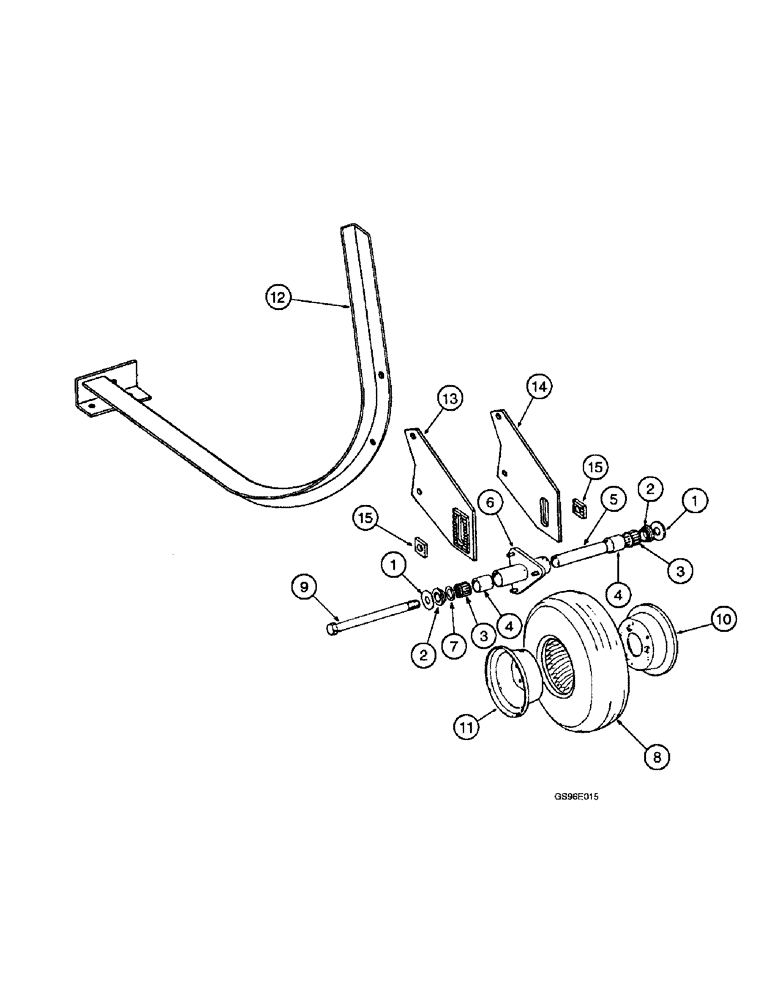

Запчасти Case IH INTERNATIONAL (2-30) - GAUGE WHEEL (11) - WHEELS

1

619505R1

WASHER

- wheel hub

4шт.

2

617383R1

BUSHING,26.19mm ID x 35.13mm OD x 6.35mm L

RETAINER - wheel

4шт.

3

568029R91

BEARING ASSY,25.4mm ID x 35mm OD x 25.4mm W

BEARING - wheel (Replaces bearing 561478R91)

4шт.

4

1960612C1

SPACER

- wheel (Replaces spacer 617382R1)

4шт.

5

617387R1

SLEEVE,19.3mm ID x 25.4mm OD x 146.05mm L

- wheel hub support

2шт.

6

617384R91

HUB

ASSEMBLY - gauge wheel

2шт.

607140R1

BOLT,3/8" - 24 x 7/8", Steel

STUD - hub, 3/8 NF x 7/8 inch

6шт.

607141R1

NUT

- hub, 3/8 inch NF

6шт.

219-8

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, (Replaces fitting 109454) 1/4"-28 NPT x .54" lg

2шт.

7

1960612C1

SPACER

WASHER - special, 11 gauge, no longer used

2шт.

8

REF

INSTRUCTION

TIRE - 5.30/4.50-6 ply rib with TR-87 valve, purchase locally

2шт.

9

113-791

BOLT,Hex, 3/4" - 10 x 8-1/2", Gr 5

- wheel support, hex, 3/4 NC x 8-1/2 inch (Replaces bolt 21702R1)

2шт.

129-108

NUT,3/4"-10, G5

(Replaces nut 220086) 3/4"-10, G5

2шт.

192-27

LOCK WASHER,3/4"

WASHER, LOCK, (Replaces washer 131046) 3/4"

2шт.

10

596310R1

WHEEL

DISK - wheel inner

2шт.

11

596311R1

WHEEL

DISK - wheel outer

2шт.

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

(Replaces bolt 180120) Hex, 3/8"-16 x 3/4", G5, Full Thd

12шт.

425-106

NUT,3/8"-16, Cl 5

12шт.

192-21

LOCK WASHER,3/8"

WASHER, LOCK, (Replaces washer 120382) 3/8"

12шт.

12

828454C1

ANGLE

- gauge wheel support, left-hand

1шт.

12

828455C1

ANGLE

- gauge wheel support, right-hand, used with headers having bolt-on type angles

1шт.

434-516

CARRIAGE BOLT,Sht Sq Nk, 5/16" - 18 x 1", Gr 5

BOLT - carriage, 5/16 NC x 1 inch (Replaces bolt 598803R1)

2шт.

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT - hex serrated flange, 5/16 inch NC

2шт.

13

828449C1

BRACKET

- wheel, left-hand outer and right-hand inner

2шт.

14

828450C1

BRACKET

- wheel, left-hand inner and right-hand outer

2шт.

113-424

BOLT,Hex, 1/2" - 13 x 1", Gr 5, Full Thd

(Replaces bolt 180173) Hex, 1/2"-13 x 1", G5, Full Thd

5шт.

129-105

NUT,Hex, 1/2" - 13, Gr 5

(Replaces nut 120378) 1/2"-13, G5

5шт.

192-23

LOCK WASHER,1/2"

WASHER, LOCK, (Replaces washer 120384) 1/2"

5шт.

15

594414R1

WASHER

- axle adjuster

4шт.
