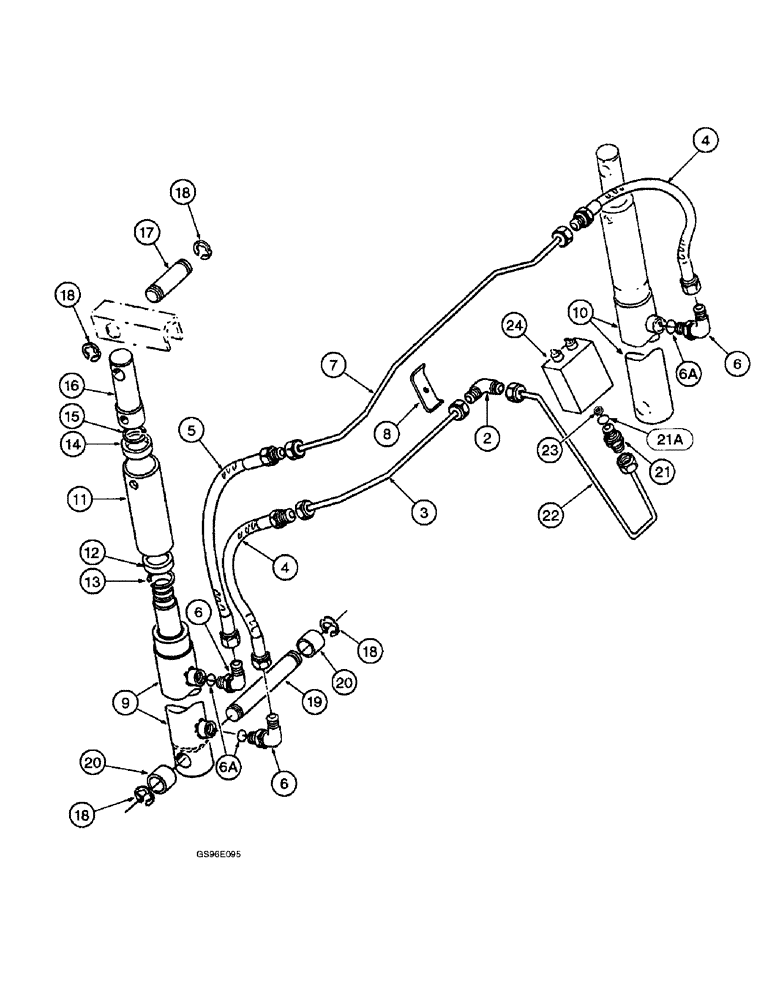

Запчасти Case IH INTERNATIONAL (4-58) - HEADER HYDRAULIC LIFT SYSTEM, LEFT HAND MASTER & RIGHT HAND SLAVE CYLINDER, PRIOR TO SERIAL NO. 1301 (07) - HYDRAULICS

2

218-473

ELBOW,90 Degree Elbow, 9/16" - 18 Male JIC x 9/16" - 18 Male JIC

- 90 degree, 9/16 inch (Replaces elbow 9402942)

1шт.

3

832124C1

TUBE

- header lift cylinder

1шт.

4

611937R91

HOSE ASSY.

HOSE - hydraulic cylinder

2шт.

5

832489C1

HOSE

- hydraulic cylinder

1шт.

6

218-5105

ELBOW,90 Degree Elbow, 9/16" - 18 Male JIC x 9/16" - 18 Male ORB

- 90 degree, 9/16-18 inch flare x adjustable O-ring boss

3шт.

7

832123C1

TUBE

- header lift cylinder

1шт.

8

594005R2

CLAMP

- hydraulic tube

1шт.

851942C1

SELF-TAP SCREW,Hex Wash Hd, 5/16"-18 x 1 1/4"

SCREW - hex head, 5/16 NC x 3/4 inch (Replaces screw 850681C1)

1шт.

9

832104C93

CYLINDER ASSY.

CYLINDER ASSEMBLY - header lift master, parts list page 4-65

1шт.

10

832042C91

CYLINDER

ASSEMBLY - header lift slave, parts list page 4-67

1шт.

11

832036C1

TUBE,1.75" ID, 2.25" OD, 6.8" Length

- cylinder piston rod extension

2шт.

12

832038C1

BUSHING

- extension tube lower

2шт.

13

968898R1

SNAP RING,1.938", Int, #193

RING - lower bushing retaining

2шт.

14

832037C1

BUSHING

- extension tube upper

2шт.

15

100-11137

SNAP RING,#137, Ext

Ring, Snap, #137, Ex , Upper bushing (Replaces ring 659380R1)

2шт.

16

832035C1

PIN

- cylinder piston rod extension

2шт.

38-33240

PIN,1/2" x 2 1/2", Coiled

- coiled spring, 1/2 x 4 inch (Replaces pin 19998R1)

2шт.

17

828150C1

PIN,25.4mm OD x 71.88mm L

- cylinder upper

2шт.

495-81074

WASHER,1 1/32" x 1 3/4" x .120"

- flat, 1-1/32 x 1-3/4 x 7/64" (Replaces washer 614451R1)

1шт.

18

827695C1

CIRCLIP

RING - retaining, pin

8шт.

19

828151C1

PIN

- cylinder lower

2шт.

20

557056R1

SPACER,1" Pipe x 1"

- cylinder lower, 1 inch (25.4 mm) long

4шт.

21

218-5057

HYD CONNECTOR,9/16" - 18 JIC x 9/16" - 18 ORB

ADAPTER - straight, 9/16-18 inch flare x O-ring boss

1шт.

22

828344C2

TUBE

-, Serial Range: valve-elbow

1шт.

23

824544C1

PLATE

- header lift orifice, Cessna, 7/64 inch ID hole

1шт.

23

H759110

ORIFICE PACKAGE

PLATE - header lift orifice, Cessna, 3/32 inch ID hole (Replaces plate 596300R1)

1шт.

23

1261081C1

VALVE

- orfice, Victor

1шт.

24

REF

INSTRUCTION

VALVE - hydraulic control, for service parts refer to chassis parts catalog

1шт.

6a

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk

3шт.

21a

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk

1шт.
