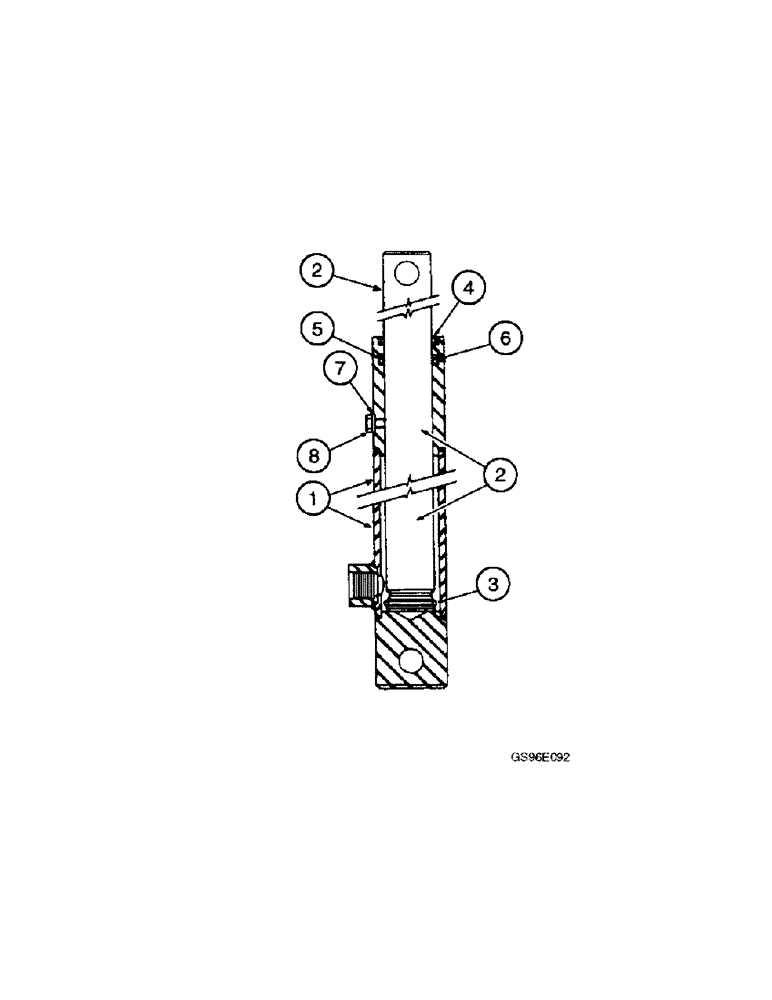

Запчасти Case IH INTERNATIONAL (4-52) - SLAVE REEL LIFT CYLINDER, 1.0 X 9.38 RAM TYPE, CESSNA (07) - HYDRAULICS

825295C91

CYLINDER

ASSEMBLY - reel lift slave, no longer available, order cylinder assembly 532763R92 below

1шт.

1

NSS

NOT SOLD SEPARAT

BODY - cylinder, order cylinder assembly 825295C91

1шт.

2

609985R1

ROD

- piston

1шт.

3

NSS

NOT SOLD SEPARAT

RING - rod lock, order kit 826027C91

1шт.

4

NSS

NOT SOLD SEPARAT

WIPER - piston rod, order kit 826027C91

1шт.

5

NSS

NOT SOLD SEPARAT

WASHER - O-ring back-up, order kit 826027C91

1шт.

6

NSS

NOT SOLD SEPARAT

O-RING - 1 x 1-1/4 inch, order kit 826027C91

6шт.

7

NSS

NOT SOLD SEPARAT

WASHER - Dyna-Seal, order kit 826027C91

1шт.

8

NSS

NOT SOLD SEPARAT

SCREW - machine, hex, No. 10 NC x 3/16 inch, order kit 826027C91

1шт.

826027C91

SEAL KIT

KIT - O-ring and seal service

1шт.
