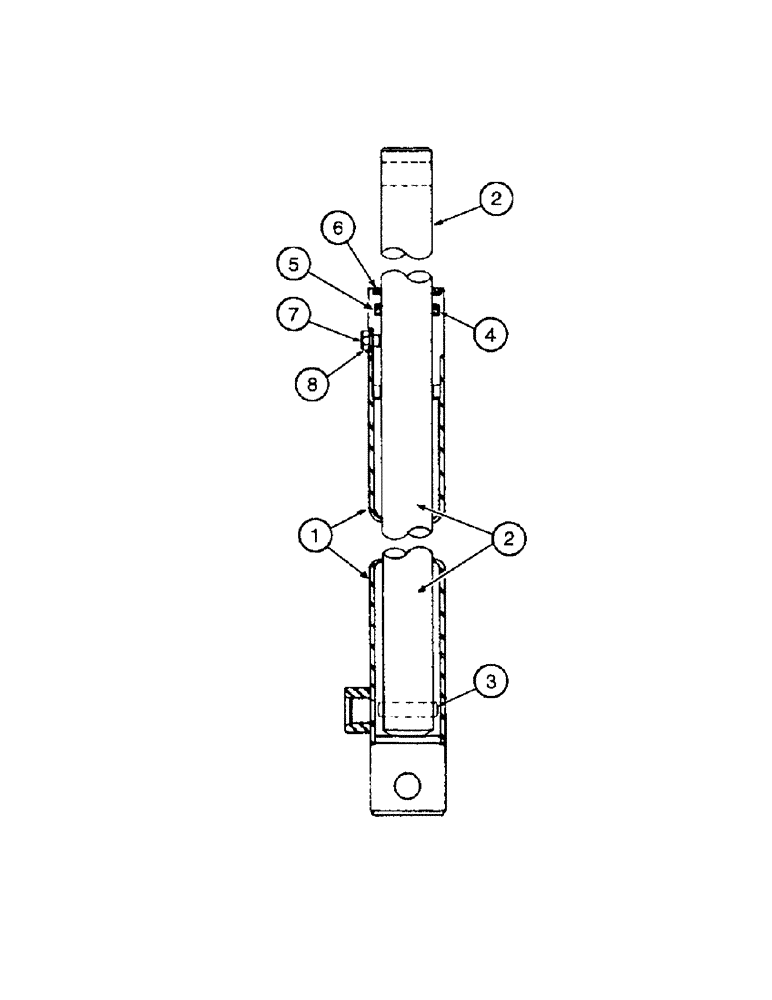

Запчасти Case IH INTERNATIONAL (4-52[A]) - SLAVE REEL LIFT CYLINDER, 1.0 X 9.38 RAM TYPE, IH (07) - HYDRAULICS

532763R92

CYLINDER ASSY.

CYLINDER ASSEMBLY - reel lift slave (Replaces cylinder assemblies 532763R91 and 825295C91))

1шт.

1

NSS

NOT SOLD SEPARAT

BODY - cylinder, order cylinder assembly 532763R92

1шт.

2

532771R1

ROD

- piston

1шт.

3

532774R1

PIN

- stop

1шт.

4

NSS

NOT SOLD SEPARAT

O-RING - 1 x 1-1/4 inch, class 6, order kit 532531R92

1шт.

5

NSS

NOT SOLD SEPARAT

WASHER - back-up, order kit 532531R92

1шт.

6

NSS

NOT SOLD SEPARAT

WIPER - rod, order kit 532531R92

1шт.

7

463-1104

SCREW,Hex Hd, #10-24 x 1/4"

Air bleed (Replaces screw 24535R1) Hex Hd, #10-24 x 1/4"

1шт.

8

NSS

NOT SOLD SEPARAT

WASHER - rubber bonded, order kit 532531R92

1шт.

532531R92

SEAL KIT

KIT - O-ring and seal service (Replaces kit 532531R91)

1шт.
