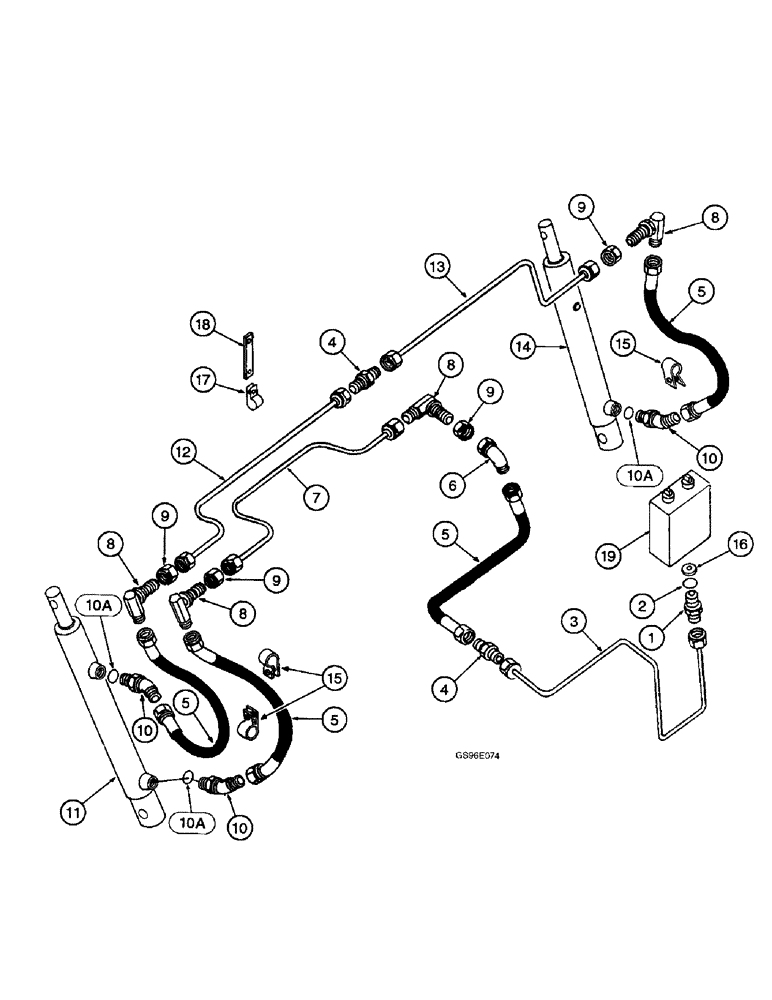

Запчасти Case IH INTERNATIONAL (4-14) - REEL HYDRAULICS (07) - HYDRAULICS

1

218-5057

HYD CONNECTOR,9/16" - 18 JIC x 9/16" - 18 ORB

ADAPTER - straight, 9/16-18 inch flare x O-ring boss

1шт.

3

832430C1

TUBE

- reel lift

1шт.

4

218-734

UNION,9/16"-18, 37 Degree x 9/16"-18, 37 Degree

CONNECTOR - straight, 9/16-18 inch flare (Replaces adapter 9402786)

2шт.

5

172373H1

HOSE

- reel lift, 35 inch (889 mm) long

4шт.

6

218-5172

ELBOW,45 Degree Elbow, 9/16" - 18 Male JIC x 9/16" - 18 Female JIC

- 45 degree, 9/16-18 inch flare (Replaces elbow 9410254)

1шт.

7

832113C1

TUBE

- master cylinder inlet, 12 foot header

1шт.

7

832114C1

TUBE

- master cylinder inlet, 14 foot header

1шт.

7

823524C1

TUBE

- master cylinder inlet, 16 foot header

1шт.

8

218-693

ELBOW,90 Degree Blkhd, 9/16"-18, 37 Degree x 9/16"-18, 37 Degree

(Replaces elbow 671943R1) 90º Blkhd, 9/16"-18, 37º x 9/16"-18, 37º

4шт.

9

218-1254

LOCK NUT,Blkhd, 9/16"-18

NUT - hex, lock, bulkhead, 9/16 inch NF (Replaces nut 9403293)

4шт.

495-81173

WASHER,19/32" x 1" x .120"

- flat, 19/32 x 1 x 7/64 inch (Replaces washer 21862R1)

4шт.

10

218-5135

ELBOW,45 Degree Elbow, 9/16" - 18 Male JIC x 9/16" - 18 Male ORB

- 45 degree, 9/16-18 inch flare x adjustable O-ring boss (Replaces elbow 9411104)

3шт.

11

158749C91

CYLINDER

ASSEMBLY - Cessna, reel lift master, no longer available, order cylinder assembly 547358R95

1шт.

11

547358R95

CYLINDER ASSY.

CYLINDER ASSEMBLY - IH, reel lift master, parts list page 4-51

1шт.

439-5844

HEADED PIN,1/2" x 2 3/4", G5

PIN - clevis, 1/2 x 5-3/4 inch (Replaces pin 23173R1)

1шт.

439-5836

HEADED PIN,12.7mm OD x 57.15mm L

PIN - headed, 1/2 x 2-1/4 inch (Replaces pin 26204R1)

1шт.

599744R1

AXLE PIN

PIN - hair, quick-attach cotter

2шт.

12

832111C1

TUBE,0.375" OD, 76.5, 2.8" Length

- cylinder to cylinder cross, left-hand, 12 foot header

1шт.

12

832112C1

TUBE,0.375" OD, 88.5, 2.8" Length

- cylinder to cylinder cross, left-hand, 14 foot header

1шт.

12

823525C1

TUBE

- cylinder to cylinder cross, left-hand, 16 foot header

1шт.

13

832109C1

TUBE,0.375" OD, 63.7, 5.8" Length

- cylinder to cylinder cross, right-hand, 12 foot header

1шт.

13

832110C1

TUBE,0.375" OD, 75.7, 5.8" Length

- cylinder to cylinder cross, right-hand, 14 foot header

1шт.

13

823526C1

TUBE

- cylinder to cylinder cross, right-hand, 16 foot header

1шт.

14

825295C91

CYLINDER

ASSEMBLY - Cessna, reel lift slave, no longer available, order cylinder assembly 532763R92 below

1шт.

14

532763R92

CYLINDER ASSY.

CYLINDER ASSEMBLY - IH, reel lift slave, part list page 4-53

1шт.

439-5844

HEADED PIN,1/2" x 2 3/4", G5

PIN - clevis, 1/2 x 5-3/4 inch (Replaces pin 23173R1)

2шт.

1978738C1

HAIR PIN COTTER

quick-attach (Replaces pin 599744R1)

2шт.

15

515-23206

CLAMP,13/16", Insul, 3/8" Bolt

Inlet and outlet hose, P type (Replaces clamp 299413C1) 13/16", Insul, 3/8" Bolt

3шт.

434-512

CARRIAGE BOLT,Sht Sq Nk, 5/16" - 18 x 3/4", Gr 5

BOLT - carriage, 5/16 NC x 3/4 inch (Replaces bolt 598802R1)

2шт.

425-105

NUT,5/16"-18, G5

- hex, 5/16 inch NC

2шт.

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

16

403967R1

VENT

PLATE - reel lift orifice, Cessna

1шт.

16

1261082C1

VALVE

- orfice, Victor

1шт.

17

595432R1

CLAMP

- tube

1шт.

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

(Replaces bolt 180120) Hex, 3/8"-16 x 3/4", G5, Full Thd

1шт.

7770

NUT,Hex, 1/4 - 20, Cl 5

1/4"-20, G5 (Replaces nut 120375)

1шт.

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, (Replaces washer 120380) 1/4"

1шт.

495-51028

WASHER,0.28" ID x 0.73" OD x 0.06" Thk

- flat, 9/32 x 47/64 x 1/16 inch (Replaces washer 21801R1)

1шт.

18

677458R1

BAR

- clamp, support

1шт.

19

REF

INSTRUCTION

VALVE - hydraulic control, for service parts refer to chassis parts catalog

1шт.

2

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk

1шт.

10a

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk

3шт.
