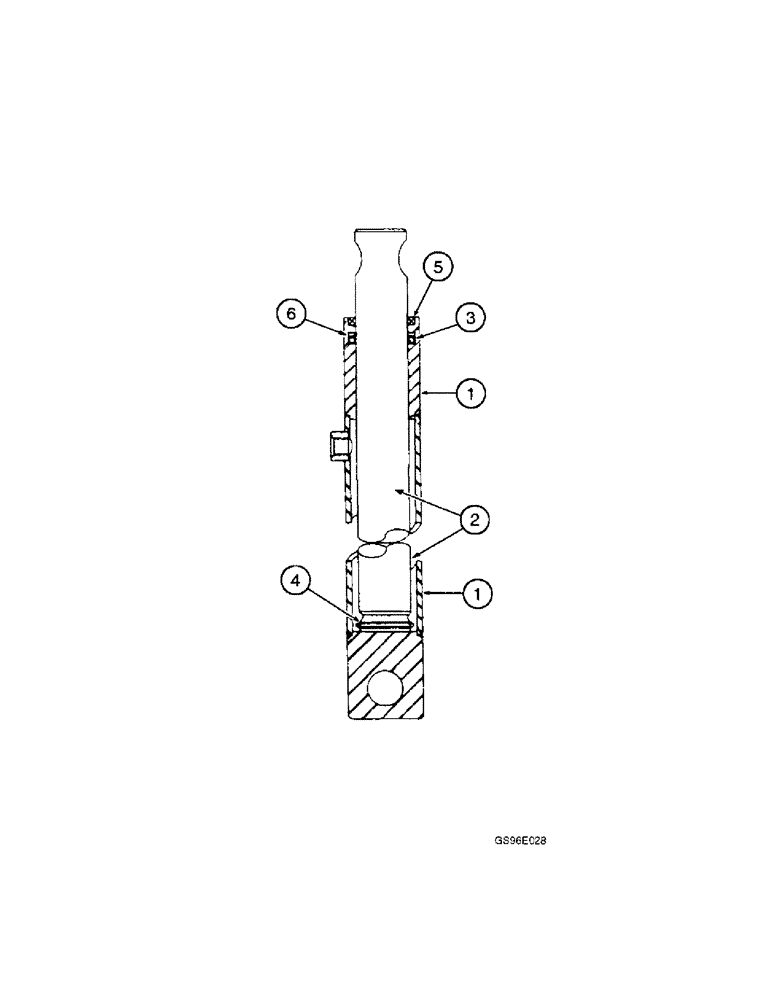

Запчасти Case IH INTERNATIONAL (3-88) - HEADER LIFT CYLINDER, 1.5 X 11.7 RAM TYPE, CESSNA (07) - HYDRAULICS

599221R92

CYLINDER

ASSEMBLY - 1-1/2 (38) ID x 11-11/16 (297 mm) stroke

2шт.

1

NSS

NOT SOLD SEPARAT

BODY - cylinder, oder cylinder assembly 599221R92

1шт.

2

599988R1

ROD

- piston

1шт.

3

NSS

NOT SOLD SEPARAT

O-RING - 1-1/2 x 1-7/8 inch, order kit 823375C3

1шт.

4

NSS

NOT SOLD SEPARAT

RING - rod lock, order kit 823375C3

1шт.

5

NSS

NOT SOLD SEPARAT

WIPER - piston rod, order kit 823375C3

1шт.

6

NSS

NOT SOLD SEPARAT

WASHER - O-ring back-up, order kit 823375C3

1шт.

823375C3

SEAL KIT

- O-ring and seal service, includes Dyna-Seal washer

1шт.
