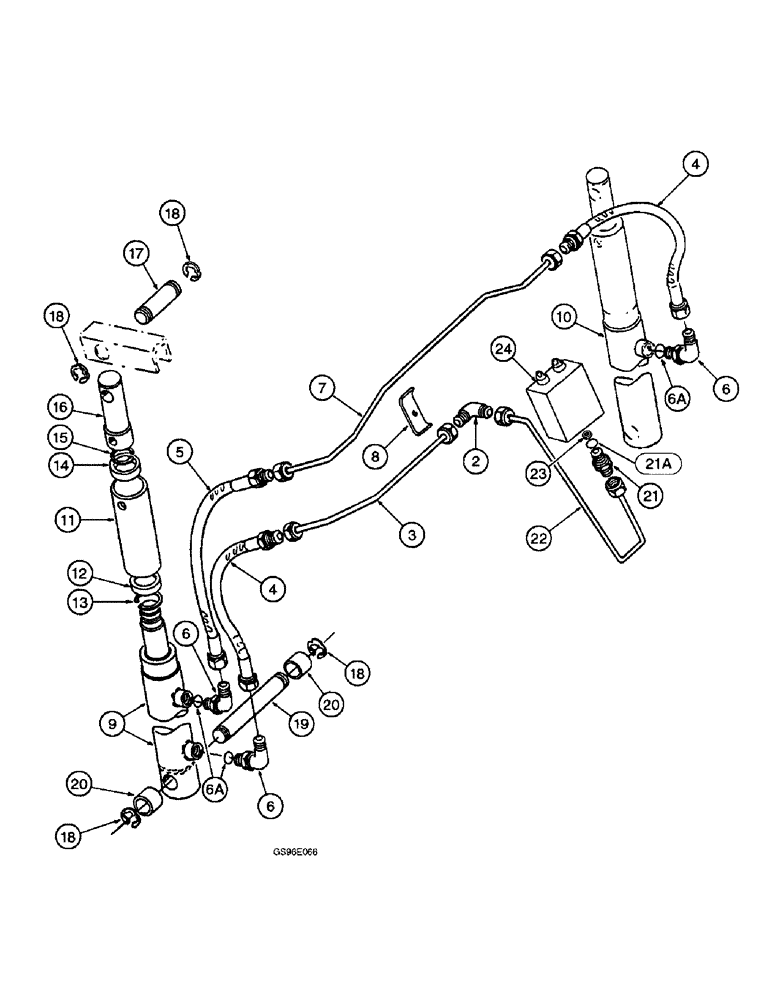

Запчасти Case IH INTERNATIONAL (3-80) - HEADER HYD. LIFT SYSTEM, LEFT HAND MASTER AND RIGHT HAND SLAVE CYLINDER, SERIAL NUMBER 3101 TO 5500 (07) - HYDRAULICS

2

218-473

ELBOW,90 Degree Elbow, 9/16" - 18 Male JIC x 9/16" - 18 Male JIC

- 90 degree, 9/16-18 inch flare x flare (Replaces elbow 9402942)

1шт.

3

832124C1

TUBE

- header lift cylinder

1шт.

4

611937R91

HOSE ASSY.

HOSE - header lift cylinder, 15-1/2 inch (396 mm) long

2шт.

5

832489C1

HOSE

- header lift cylinder, 9 inch (229 mm) long

1шт.

6

218-5105

ELBOW,90 Degree Elbow, 9/16" - 18 Male JIC x 9/16" - 18 Male ORB

- 90 degree, 9/16-18 inch flare x adjustable O-ring boss

3шт.

7

832123C1

TUBE

- header lift cylinder

1шт.

8

594005R2

CLAMP

- hydraulic tube

1шт.

850681C1

SELF-TAP SCREW,5/16" - 18 x 7/8"

- hex head, 5/16 NC x 3/4 inch

1шт.

9

832104C93

CYLINDER ASSY.

CYLINDER ASSEMBLY - header lift master, parts list page 3-85

1шт.

10

832042C91

CYLINDER

ASSEMBLY - header lift slave, parts list page 3-87

1шт.

11

832036C1

TUBE,1.75" ID, 2.25" OD, 6.8" Length

- cylinder piston rod extension

2шт.

12

832038C1

BUSHING

- extension tube lower

2шт.

13

968898R1

SNAP RING,1.938", Int, #193

RING - lower bushing retaining

2шт.

14

832037C1

BUSHING

- extension tube upper

2шт.

15

100-11137

SNAP RING,#137, Ext

Ring, Snap, , Upper bushing (Replaces ring 659380R1) #137, Ext

2шт.

16

832035C1

PIN

- cylinder piston rod extension

2шт.

38-33240

PIN,1/2" x 2 1/2", Coiled

- coiled spring, 1/2 x 4 inch (Replaces pin 19998R1)

2шт.

17

828150C1

PIN,25.4mm OD x 71.88mm L

- cylinder upper

2шт.

495-81074

WASHER,1 1/32" x 1 3/4" x .120"

- flat, 1-1/32 x 1-3/4 x 7/64" (Replaces washer 614451R1)

1шт.

18

827695C1

CIRCLIP

RING - retaining, pin

8шт.

19

828151C1

PIN

- cylinder lower

2шт.

20

557056R1

SPACER,1" Pipe x 1"

- cylinder lower, 1 inch (2.54 mm) long

4шт.

21

218-5057

HYD CONNECTOR,9/16" - 18 JIC x 9/16" - 18 ORB

ADAPTER - straight, 9/16-18 inch flare x O-ring boss

1шт.

22

828344C2

TUBE

-, Serial Range: valve-elbow

1шт.

23

824544C1

PLATE

- header lift orifice, Cessna, 7/64 ID hole

1шт.

23

H759110

ORIFICE PACKAGE

PLATE - header lift orifice, Cessna, 3/32 ID hole (Replaces plate 596300R1)

1шт.

23

1261081C1

VALVE

- orifice, Victor

1шт.

24

REF

INSTRUCTION

VALVE - hydraulic control, for service parts refer to chassis parts catalog

1шт.

6a

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk

3шт.

21a

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk

1шт.
