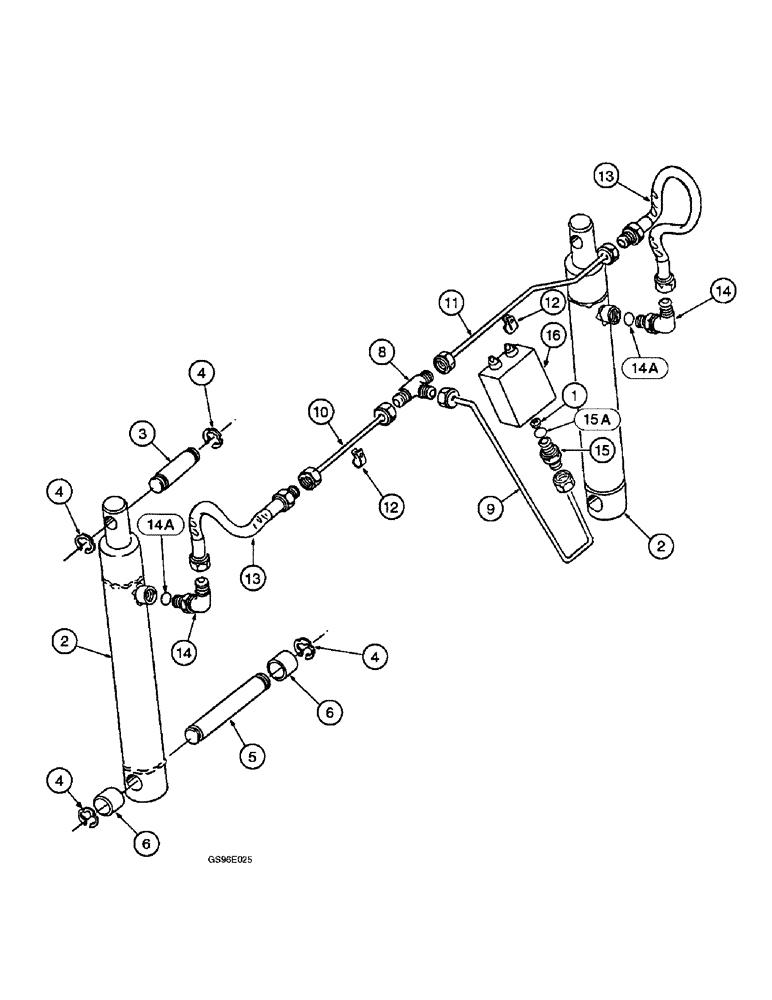

Запчасти Case IH INTERNATIONAL (3-78) - HEADER HYDRAULIC LIFT SYSTEM, TWO INDEPENDENT MASTER CYLINDERS, SERIAL NUMBER 3100 AND BELOW (07) - HYDRAULICS

1

824544C1

PLATE

- header lift orifice, Cessna, 7/64 ID hole

1шт.

1

H759110

ORIFICE PACKAGE

PLATE - header lift orifice, Cessna, 3/32 ID hole (Replaces plate 596300R1)

1шт.

1

1261081C1

VALVE

- orifice, Victor

1шт.

2

599221R92

CYLINDER

ASSEMBLY - 1-1/2 (38) ID x 11-11/16 (297 mm) stroke, header lift, Cessna, use only as a pair, parts list page 3-89

2шт.

2

123001C93

CYLINDER

ASSEMBLY - 1-1/2 (38) ID x 11-11/16 (297 mm) stroke, header lift, IH, use only as a pair, parts list page 3-89

2шт.

3

828150C1

PIN,25.4mm OD x 71.88mm L

- cylinder upper

2шт.

495-81074

WASHER,1 1/32" x 1 3/4" x .120"

- flat, 1-1/32 x 1-3/4 x 7/64" (Replaces washer 614451R1)

4шт.

4

827695C1

CIRCLIP

RING - retaining, pin

8шт.

5

828151C1

PIN

- cylinder lower

2шт.

6

557056R1

SPACER,1" Pipe x 1"

- cylinder lower, 1 inch (25.4 mm) long

4шт.

8

218-593

TEE,9/16"-18, 37 Degree

- adjustable, 9/16-18 inch flare (Replaces tee 9402981)

1шт.

9

828344C2

TUBE

-, Serial Range: valve-elbow

1шт.

10

828756C1

TUBE,0.375" OD, 11" Length

- lift cylinder, left-hand

1шт.

11

828343C1

TUBE,0.375" OD, 46, 1.5" Length

- lift cylinder, right-hand

1шт.

12

595432R1

CLAMP

- tube

2шт.

281-5488

SELF-TAP SCREW,Hex Wash Hd, 5/16"-18 x 1/2"

SCREW - hex head, 5/16 NC x 1/2 inch (Replaces screw 850677C1)

1шт.

413-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

- hex, 5/16 NC x 3/4 inch (Replaces bolt 180077)

1шт.

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

425-105

NUT,5/16"-18, G5

- hex, 5/16 inch NC

1шт.

13

611937R91

HOSE ASSY.

HOSE - header lift cylinder, 15-1/2 (396 mm) long

2шт.

14

218-5105

ELBOW,90 Degree Elbow, 9/16" - 18 Male JIC x 9/16" - 18 Male ORB

- 90 degree, 9/16-18 inch flare x adjustable O-ring boss

2шт.

15

218-5057

HYD CONNECTOR,9/16" - 18 JIC x 9/16" - 18 ORB

ADAPTER - straight, 9/16-18 inch flare x O-ring boss

1шт.

16

REF

INSTRUCTION

VALVE - hydraulic control, for service parts refer to chassis parts catalog

1шт.

14a

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk

2шт.

15a

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk

1шт.
