(3-70) - SLAVE REEL LIFT CYLINDER, 1.0 X 9.38 RAM TYPE, CESSNA

Запчасти Case IH INTERNATIONAL (3-70) - SLAVE REEL LIFT CYLINDER, 1.0 X 9.38 RAM TYPE, CESSNA (07) - HYDRAULICS

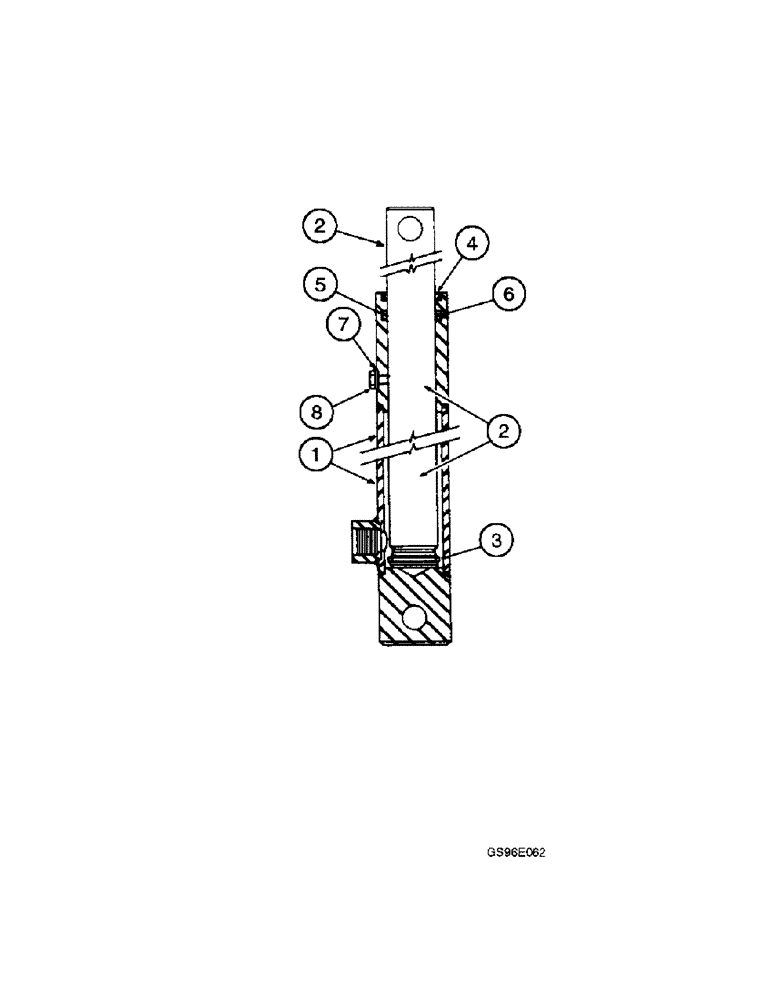

Схема запчастей Case IH INTERNATIONAL - (3-70) - SLAVE REEL LIFT CYLINDER, 1.0 X 9.38 RAM TYPE, CESSNA (07) - HYDRAULICS
4
3
1
2
5
2
6
8
7
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

825295C91

CYLINDER

ASSEMBLY - reel lift slave, no longer available, order cylinder assembly 532763R92 below

1шт.

1

NSS

NOT SOLD SEPARAT

BODY - cylinder, order cylinder assembly 825295C91

1шт.

2

609985R1

ROD

- piston

1шт.

3

NSS

NOT SOLD SEPARAT

SPRING - rod lock

1шт.

4

NSS

NOT SOLD SEPARAT

WIPER - piston rod, order kit 826027C91

1шт.

5

NSS

NOT SOLD SEPARAT

WASHER - O-ring back-up, order kit 826027C91

1шт.

6

NSS

NOT SOLD SEPARAT

O-RING - 1 x 1-1/4 inch, order kit 826027C91

1шт.

7

NSS

NOT SOLD SEPARAT

WASHER - Dyna-Seal, order kit 826027C91

1шт.

8

NSS

NOT SOLD SEPARAT

SCREW - machine, hex head, No. 10 NC x 3/16 inch, order kit 826027C91

1шт.

826027C91

SEAL KIT

KIT - O-ring and seal service

1шт.

532763R92

CYLINDER ASSY.

CYLINDER ASSEMBLY - reel lift slave (Replaces cylinder assemblies 532763R91 and 825295C91)

1шт.
