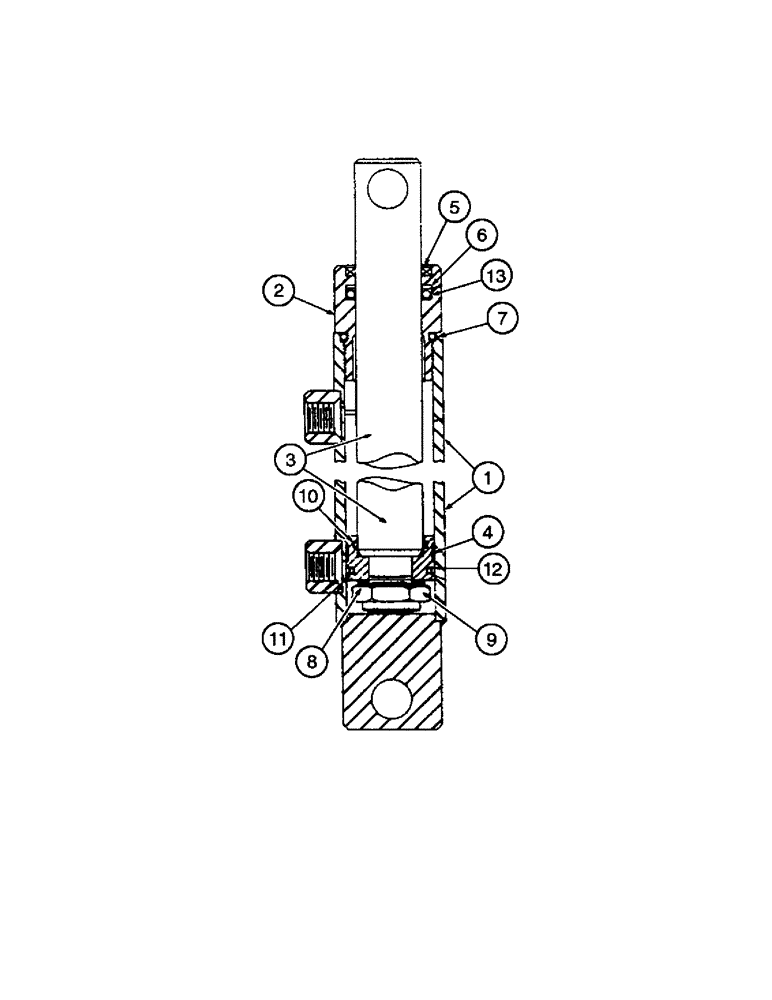

Запчасти Case IH INTERNATIONAL (3-68) - MASTER REEL LIFT CYLINDER, 1.5 X 9.38 REPHASING, CESSNA (07) - HYDRAULICS

158749C91

CYLINDER

ASSEMBLY - reel lift master, no longer available, order cylinder assembly 547358R95 below

1шт.

1

NSS

NOT SOLD SEPARAT

BODY - cylinder, order cylinder assembly 158749C91

1шт.

2

161333C1

HEAD

GLAND - cylinder, front

1шт.

3

161131C91

MAGNET

ROD - piston, no longer available

1шт.

4

161132C1

PISTON - cylinder, no longer available

1шт.

5

NSS

NOT SOLD SEPARAT

WIPER - piston rod, order kit F87180

1шт.

6

NSS

NOT SOLD SEPARAT

WASHER - O-ring back-up, order kit F87180

1шт.

7

NSS

NOT SOLD SEPARAT

O-RING - 1-3/8 x 1-9/16 inch, order kit F87180

1шт.

8

NSS

NOT SOLD SEPARAT

WASHER - flat, 25/32 x 1-1/8 x 3/64 inch, order cylinder assembly 158749C91

1шт.

9

NSS

NOT SOLD SEPARAT

NUT - thin, 3/4 inch NF, order cylinder assembly 158749C91

1шт.

10

NSS

NOT SOLD SEPARAT

O-RING - 1-1/8 x 1-1/4 inch, order kit F87180

1шт.

11

NSS

NOT SOLD SEPARAT

RING - slipper inch, order kit F87180

1шт.

12

NSS

NOT SOLD SEPARAT

O-RING - 1-1/4 x 1-3/8 inch, order kit F87180

1шт.

13

NSS

NOT SOLD SEPARAT

O-RING - 1-1/8 x 1-3/8 inch, order kit F87180

1шт.

F87180

SEAL

KIT - O-ring and seal service (Replaces kit 826021C91)

1шт.
