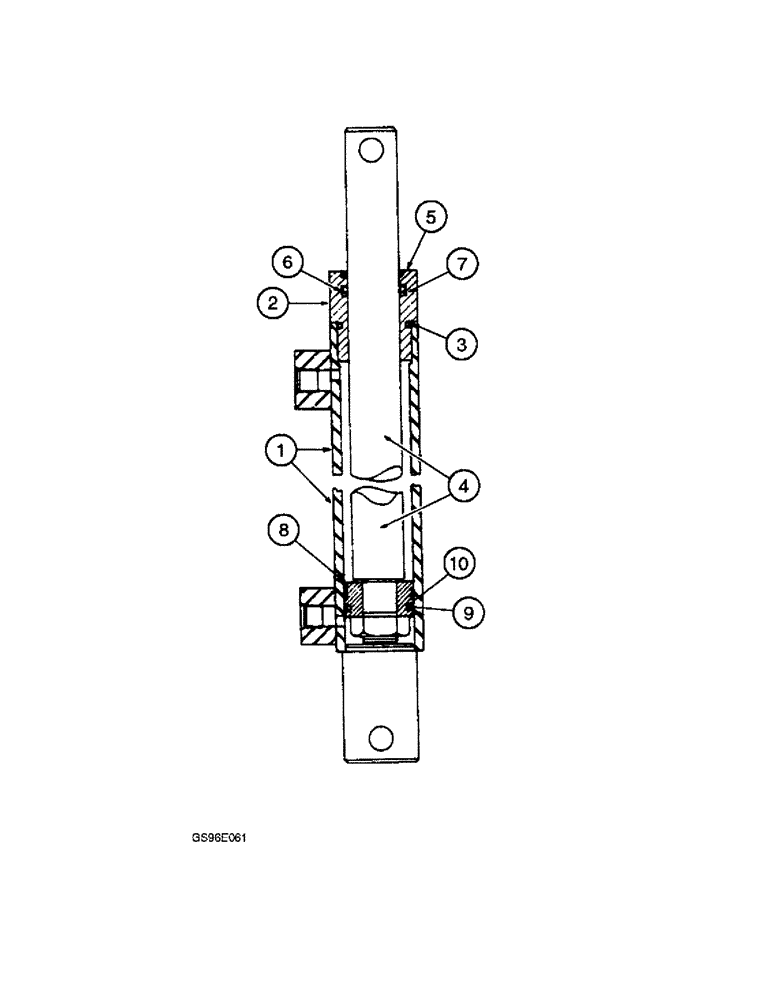

Запчасти Case IH INTERNATIONAL (3-68[A]) - MASTER REEL LIFT CYLINDER, 1.5 X 9.38 REPHASING, IH (07) - HYDRAULICS

547358R95

CYLINDER ASSY.

CYLINDER ASSEMBLY - reel lift master (Replaces cylinder assemblies 547358R92 and 158749C91)

1шт.

1

547328R3

BODY

- cylinder (Replaces cylinder body 547328R2)

1шт.

2

547384R1

CYLINDER HEAD

HEAD - front

1шт.

3

NSS

NOT SOLD SEPARAT

O-RING - 1-3/8 x 1-9/16 inch, class 6, order kit 547388R94

1шт.

4

547332R1

ROD

- piston

1шт.

548033R1

JAM NUT

NUT - hex jam lock, 3/4 inch NF

1шт.

5

NSS

NOT SOLD SEPARAT

WIPER - rod, order kit 547388R94

1шт.

6

NSS

NOT SOLD SEPARAT

O-RING - 1-1/8 x 1-3/8 inch, class 6, order kit 547388R94

1шт.

7

NSS

NOT SOLD SEPARAT

WASHER - O-ring back-up, order kit 547388R94

1шт.

8

547333R3

PISTON

- cylinder (Replaces piston 547333R1)

1шт.

9

NSS

NOT SOLD SEPARAT

O-RING - 1-3/16 x 1-3/8 inch, class 5, order kit 547388R94

1шт.

10

NSS

NOT SOLD SEPARAT

SEAL - piston, order kit 547388R94

1шт.

547388R94

SEAL KIT

KIT - O-ring and seal service (Replaces kit 547388R91)

1шт.
