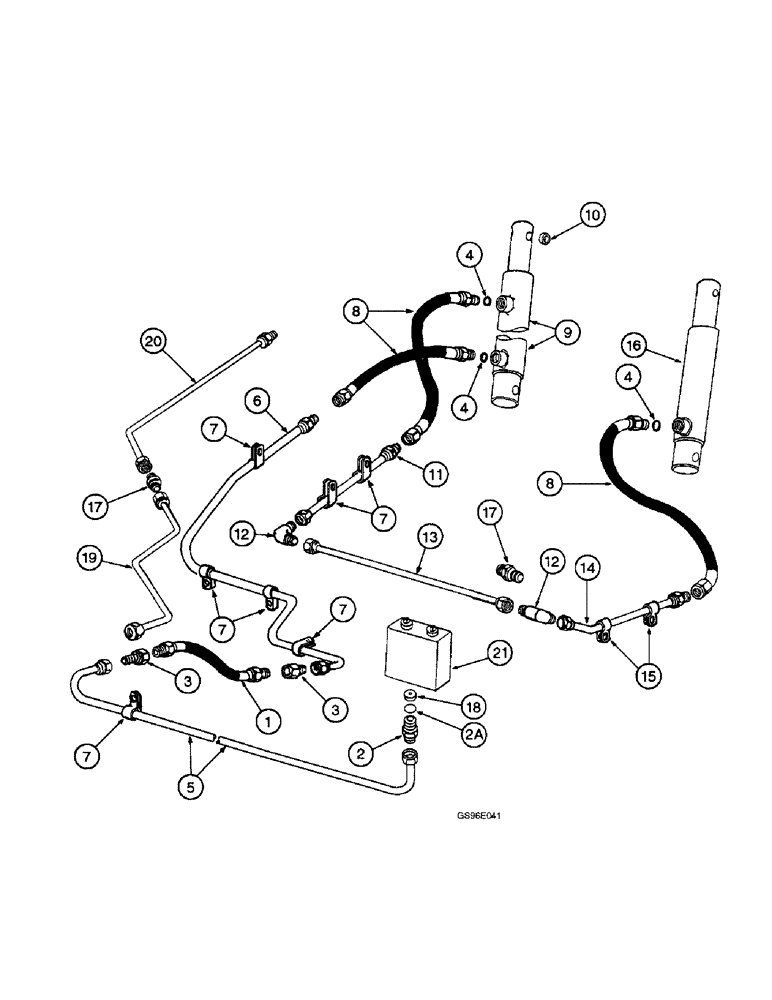

Запчасти Case IH INTERNATIONAL (3-24) - REEL HYDRAULICS (07) - HYDRAULICS

1

531886R1

HYDRAULIC HOSE,0.25" ID x 28.00", SAE 100R1 Class 7

HOSE - header to valve, 28 inch (711 mm) long

1шт.

2

218-5057

HYD CONNECTOR,9/16" - 18 JIC x 9/16" - 18 ORB

ADAPTER - straight, 9/16-18 inch flare x O-ring boss

1шт.

3

218-463

HYD CONNECTOR,9/16" - 18 Male JIC x 1/4" - 18 Female NPTF

ADAPTER - straight, 9/16-18 flare x 1/4 inch female PT(Replaces adapter 9402747)

2шт.

5

829503C2

TUBE

- valve to header hose

1шт.

6

829386C2

TUBE

- master cylinder inlet rear, 10-1/2 foot header

1шт.

6

829386C2

TUBE

- master cylinder inlet rear, 12-1/2 foot, prior to serial no. 2501

1шт.

6

829387C2

TUBE

- master cylinder inlet rear, 12-1/2 foot, serial no. 2501 and after

1шт.

6

829387C2

TUBE

- master cylinder inlet rear, 14-1/2 foot, prior to serial no. 2501

1шт.

6

829388C2

TUBE

- master cylinder inlet rear, 14-1/2 foot, serial no. 2501 and after

1шт.

6

829388C2

TUBE

- master cylinder inlet rear, 16-1/2 foot, prior to serial no. 2501

1шт.

6

829389C2

TUBE

- master cylinder inlet rear, 16-1/2 foot, serial no. 2501 and after

1шт.

6

829389C2

TUBE

- master cylinder inlet rear, 19-1/2 foot, prior to serial no. 2501

1шт.

6

831296C1

TUBE

- master cylinder inlet rear, 19-1/2 foot, serial no. 2501 and after

1шт.

6

830062C2

TUBE

- master cylinder inlet rear, 24-1/2 foot, prior to serial no. 3101

1шт.

6

832193C1

TUBE

- master cylinder inlet rear, 24 -1/2 foot, serial no. 3101 and after (See Note Page 3-25B)

1шт.

7

595432R1

CLAMP

- tube

6шт.

413-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

- hex, 5/16 NC x 3/4 inch (Replaces bolt 180077)

4шт.

425-105

NUT,5/16"-18, G5

- hex, 5/16 inch NC

4шт.

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

4шт.

8

826519C91

HOSE

- hydraulic, 15-1/2 inch (394 mm) long

3шт.

9

158749C91

CYLINDER

ASSEMBLY - Cessna, reel lift master, no longer available, order cylinder assembly 547358R95

1шт.

9

547358R95

CYLINDER ASSY.

CYLINDER ASSEMBLY - IH, reel lift master, use with 532763R91 slave cylinder

1шт.

439-5844

HEADED PIN,1/2" x 2 3/4", G5

PIN - clevis, 1/2 x 5-3/4 inch (Replaces pin 23173R1)

2шт.

132-91

COTTER PIN,3/16" x 1"

Pin, Split (Cotter), (Replaces pin 103407) 3/16" x 1"

1шт.

1978738C1

HAIR PIN COTTER

quick-attach (Replaces pin 599744R1)

1шт.

10

217779R1

SPACER

- cylinder

1шт.

11

829391C2

TUBE,0.375" OD, 10.7, 6" Length

- master cylinder outlet

1шт.

12

218-473

ELBOW,90 Degree Elbow, 9/16" - 18 Male JIC x 9/16" - 18 Male JIC

- 90 degree, 9/16-18 inch flare x flare (Replaces elbow 9402942)

2шт.

13

824648C11

TUBE

- slave cylinder, center, 10-1/2 foot

1шт.

13

824715C11

TUBE,0.375" OD, 143.2" Length

- slave cylinder, center, 12-1/2 foot

1шт.

13

824716C11

TUBE

- slave cylinder, center, 14-1/2 foot

1шт.

13

824717C11

TUBE

- slave cylinder, center, 16-1/2 foot

1шт.

13

824718C1

TUBE

- slave cylinder, center, 19-1/2 foot

1шт.

13

824715C11

TUBE,0.375" OD, 143.2" Length

- slave cylinder, center, 24 -1/2 foot

2шт.

14

829392C1

TUBE,0.375" OD, 14.5, 4.7" Length

- slave cylinder, right-hand

1шт.

15

595432R1

CLAMP

- tube

2шт.

413-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

- hex, 5/16 NC x 3/4 inch (Replaces bolt 180077)

2шт.

425-105

NUT,5/16"-18, G5

- hex, 5/16 inch NC

2шт.

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

16

825295C91

CYLINDER

ASSEMBLY - Cessna, reel lift slave, use with 158749C91 master cylinder, no longer available, order cylinder assembly 532763R92

1шт.

16

532763R92

CYLINDER ASSY.

CYLINDER ASSEMBLY - IH, reel lift slave, use with 547358C92 master cylinder, parts list page 3-71

1шт.

439-5840

HEADED PIN,1/2" x 2 1/2"

PIN - headed, 1/2 x 2-1/2 inch

2шт.

132-95

COTTER PIN,3/16" x 1 1/2"

Pin, Split (Cotter), (Replaces pin 103409) 3/16" x 1 1/2"

1шт.

1978738C1

HAIR PIN COTTER

quick-attach (Replaces pin 599744R1)

1шт.

17

218-734

UNION,9/16"-18, 37 Degree x 9/16"-18, 37 Degree

CONNECTOR - straight, 9/16-18 inch flare, tube, used with 24-1/2 foot header tube (Replaces adapter 9402786)

2шт.

18

403967R1

VENT

PLATE - reel lift orifice, Cessna

1шт.

18

1261082C1

VALVE

- orifice, Victor

1шт.

19

823594C1

TUBE

- master cylinder inlet, rear, 24-1/2 foot header

1шт.

20

823595C1

TUBE

- master cylinder inlet, side, 24-1/2 foot header

1шт.

21

REF

INSTRUCTION

VALVE ASSEMBLY - hydraulic control

1шт.

2a

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk

1шт.

4

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk (Replaces O-ring 364839R1)

3шт.
