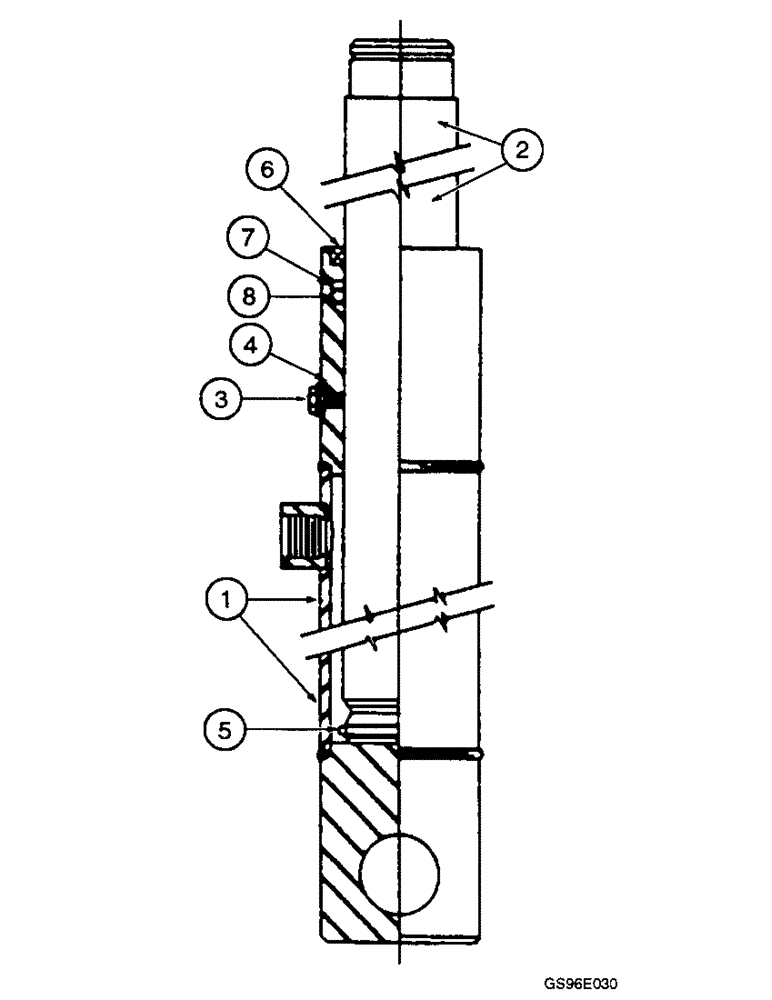

Запчасти Case IH INTERNATIONAL (2-60) - HEADER LIFT SLAVE CYLINDER 1.5 X 11.7 RAM TYPE, CESSNA (07) - HYDRAULICS

832042C91

CYLINDER

ASSEMBLY - header lift slave

1шт.

1

NSS

NOT SOLD SEPARAT

BODY - cylinder, order cylinder assembly 832042C91

1шт.

2

825535C1

ROD

- piston

1шт.

3

825536C1

FLANGE BOLT,Hex, #10 - 24 x 15/64"

SCREW - bleeder

1шт.

4

NSS

NOT SOLD SEPARAT

O-RING - 3/16 x 1-1/2 inch, order kit 823375C3

1шт.

5

NSS

NOT SOLD SEPARAT

WASHER - back-up, order kit 823375C3

1шт.

6

NSS

NOT SOLD SEPARAT

WASHER - Dyna-Seal, order kit 823375C3

1шт.

7

NSS

NOT SOLD SEPARAT

SEAL - wiper, order kit 823375C3

1шт.

8

NSS

NOT SOLD SEPARAT

RING - lock, order kit 823375C3

1шт.

823375C3

SEAL KIT

- seal repair

1шт.
