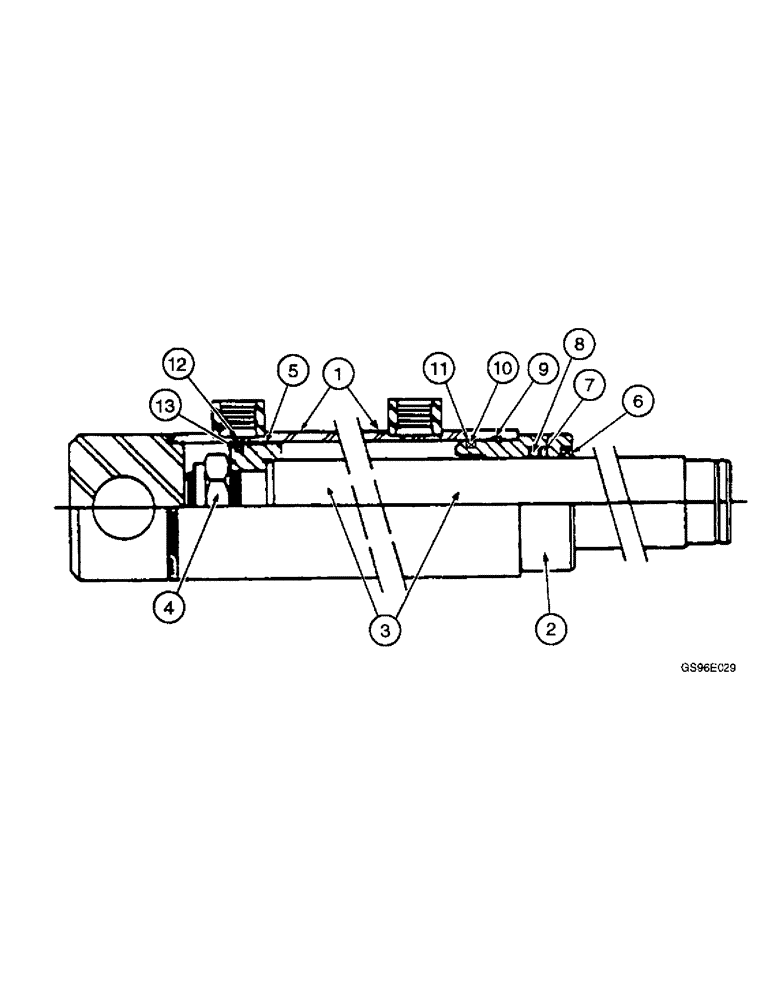

Запчасти Case IH INTERNATIONAL (2-58) - HEADER LIFT MASTER CYLINDER 2.12 X 11.7 REPHASING, CESSNA (07) - HYDRAULICS

832104C93

CYLINDER ASSY.

CYLINDER ASSEMBLY - header lift master (Replaces cylinder assembly 832104C92)

1шт.

1

NSS

NOT SOLD SEPARAT

BODY - cylinder, order cylinder assembly 832104C93

1шт.

2

825538C1

GLAND,1.62" ID x 1.876" OD x 2"

GLAND - cylinder, front

1шт.

3

825539C1

ROD

- piston

1шт.

4

823323C1

NUT

- hex, 1-1/8 inch NF

1шт.

5

825537C1

PISTON

- cylinder

1шт.

6

NSS

NOT SOLD SEPARAT

WIPER - piston rod, order kit 1286323C1

1шт.

7

NSS

NOT SOLD SEPARAT

WASHER - O-ring back-up, order kit 1286323C1

1шт.

8

NSS

NOT SOLD SEPARAT

O-RING - 1-1/2 x 1-7/8 inch, order kit 1286323C1

1шт.

9

NSS

NOT SOLD SEPARAT

RING - head locking, order kit 1286323C1

1шт.

10

NSS

NOT SOLD SEPARAT

WASHER - O-ring back-up, order kit 1286323C1

1шт.

11

NSS

NOT SOLD SEPARAT

O-RING - 1-15/16 x 2-1/8 inch, order kit 1286323C1

1шт.

12

NSS

NOT SOLD SEPARAT

RING - slipper, order kit 1286323C1

1шт.

13

NSS

NOT SOLD SEPARAT

O-RING - 1-13/16 x 2 inch, order kit 1286323C1

1шт.

1286323C1

SEAL KIT

- O-ring and seal service (Replaces kit 825541C2)

1шт.
