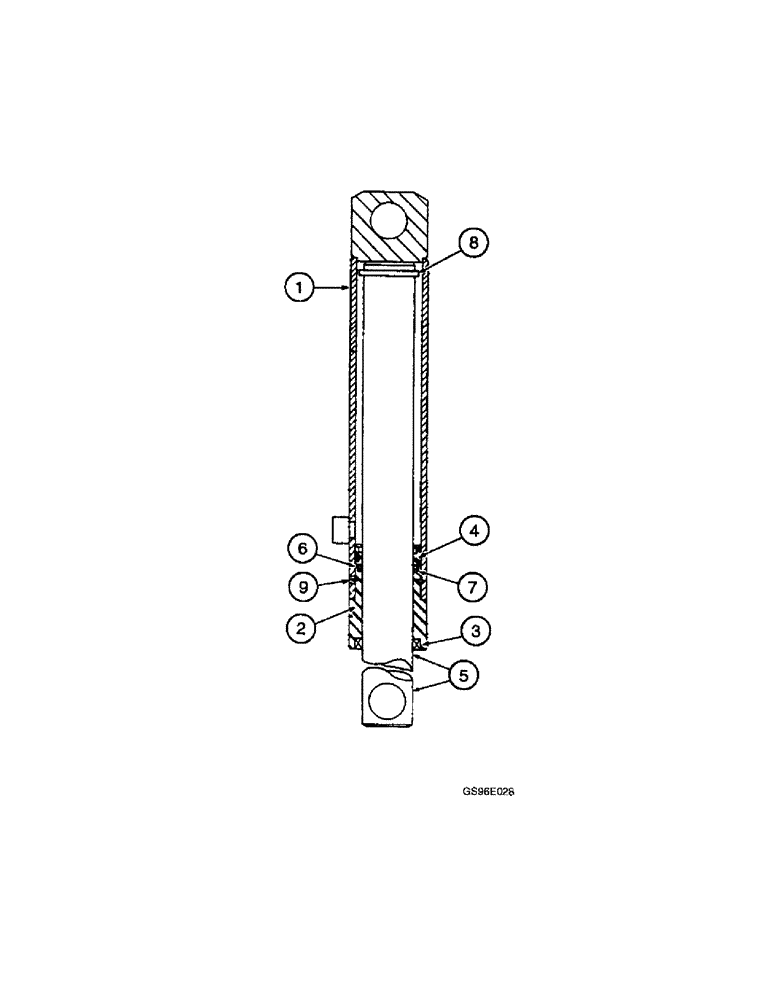

Запчасти Case IH INTERNATIONAL (2-56[A]) - HEADER LIFT MASTER CYLINDER 1.5 X 11.7 RAM TYPE, IH (07) - HYDRAULICS

123001C93

CYLINDER

ASSEMBLY - 1-1/2 (38) ID x 11-11/16 (297 mm) stroke (Replaces cylinder assembly 123001C92)

2шт.

1

NSS

NOT SOLD SEPARAT

TUBE - cylinder, order cylinder assembly 123001C93

1шт.

2

57018C2

JACK HEAD

GLAND - cylinder, front

1шт.

3

NSS

NOT SOLD SEPARAT

WIPER - rod, order kit 389270R92

1шт.

4

NSS

NOT SOLD SEPARAT

O-RING - 1-3/4 x 1-15/16 inch, class 6, order kit 389270R92

1шт.

5

123004C1

ROD

- piston

1шт.

6

NSS

NOT SOLD SEPARAT

O-RING - 1-1/2 x 1-3/4 inch, class 6, order kit 389270R92

1шт.

7

NSS

NOT SOLD SEPARAT

WASHER - O-ring back-up, order kit 389270R92

1шт.

8

NSS

NOT SOLD SEPARAT

RING - retaining snap, order kit 389270R92

1шт.

9

NSS

NOT SOLD SEPARAT

RING - retaining, order kit 389270R92

1шт.

389270R92

SEAL KIT

KIT - O-ring and seal service

1шт.
