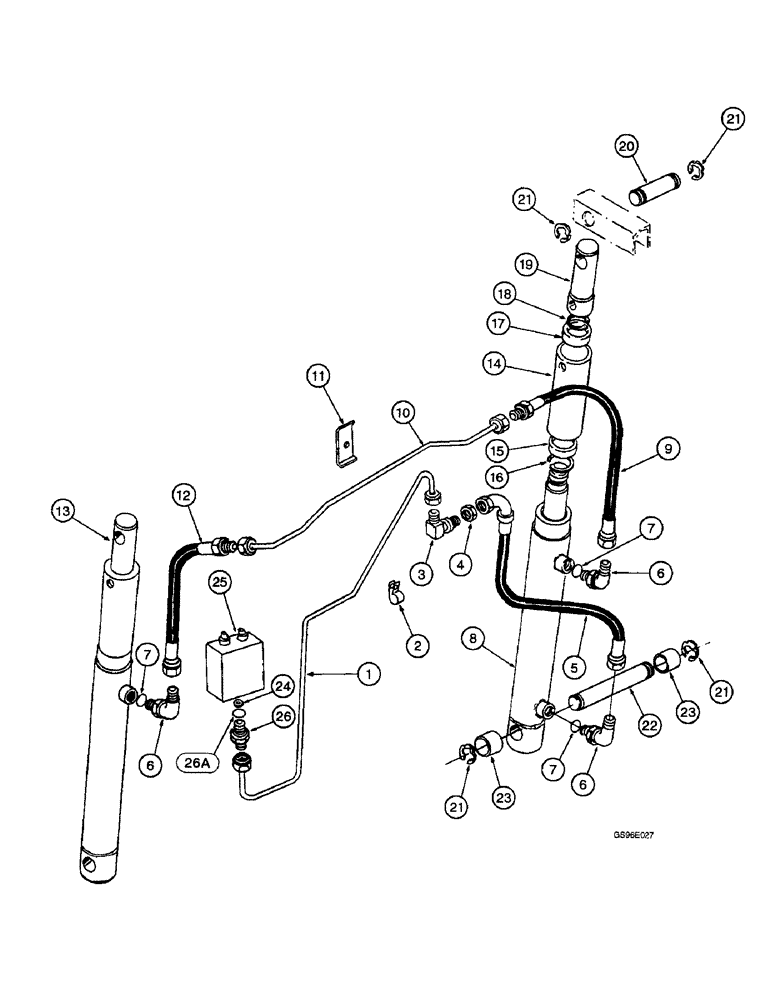

Запчасти Case IH INTERNATIONAL (2-54) - HEADER HYD. LIFT SYSTEM, RIGHT HAND MASTER & LEFT HAND SLAVE CYLINDERS, 4000, 5000 & 5500 WINDROWERS (07) - HYDRAULICS

1

826778C1

TUBE,220, 128 mm Length

- valve to elbow

1шт.

2

595432R1

CLAMP

- tube

1шт.

413-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

- hex, 5/16 inch NC x 3/4 inch (Replaces bolt 180077)

1шт.

425-105

NUT,5/16"-18, G5

- hex, 5/16 inch NC

1шт.

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

3

218-693

ELBOW,90 Degree Blkhd, 9/16"-18, 37 Degree x 9/16"-18, 37 Degree

(Replaces elbow 671943R1) 90º Blkhd, 9/16"-18, 37º x 9/16"-18, 37º

1шт.

4

218-1254

LOCK NUT,Blkhd, 9/16"-18

NUT - hex, lock, bulkhead, 9/16 inch NF (Replaces nut 9403293)

1шт.

5

826777C1

HOSE

- master cylinder inlet, 17 inch (432 mm) long

1шт.

6

218-5105

ELBOW,90 Degree Elbow, 9/16" - 18 Male JIC x 9/16" - 18 Male ORB

- 90 degree, 9/16-18 inch flare x adjustable O-ring boss

3шт.

8

832104C93

CYLINDER ASSY.

CYLINDER ASSEMBLY - header lift master, parts list page 2-59

1шт.

9

611937R91

HOSE ASSY.

HOSE - master cylinder outlet, 15-1/2 inch (396 mm) long

1шт.

10

832123C1

TUBE

- master to slave cylinder

1шт.

11

594005R2

CLAMP

- tube

1шт.

851942C1

SELF-TAP SCREW,Hex Wash Hd, 5/16"-18 x 1 1/4"

SCREW - hex head, 5/16 NC x 3/4 inch (Replaces screw 850681C1)

1шт.

12

832489C1

HOSE

- slave cylinder, 9 inch (229 mm) long

1шт.

13

832042C91

CYLINDER

ASSEMBLY - header lift slave, parts list page 2-61

1шт.

14

832036C1

TUBE,1.75" ID, 2.25" OD, 6.8" Length

- cylinder piston rod extension

2шт.

15

832038C1

BUSHING

- extension tube lower

2шт.

16

968898R1

SNAP RING,1.938", Int, #193

RING - retaining, 2-9/64 inch

2шт.

17

832037C1

BUSHING

- extension tube upper

2шт.

18

100-11137

SNAP RING,#137, Ext

Ring, Snap, (Replaces ring 659380R1) #137, Ext

2шт.

19

832035C1

PIN

- cylinder piston rod extension

2шт.

38-33240

PIN,1/2" x 2 1/2", Coiled

- coiled spring, 1/2 x 4 inch (Replaces pin 19998R1)

2шт.

20

828150C1

PIN,25.4mm OD x 71.88mm L

- cylinder upper

2шт.

495-81070

WASHER,1 1/32" x 1 1/2" x .120"

- flat, 1-1/32 x 1-1/2 x 7/64 inch (Replaces washer 20704R1)

1шт.

21

827695C1

CIRCLIP

RING - retaining, pin

8шт.

22

828151C1

PIN

- cylinder lower

2шт.

23

557056R1

SPACER,1" Pipe x 1"

- 1 inch long, cylinder lower

4шт.

24

824544C1

PLATE

- header lift orifice, Cessna, 7/64 inch diameter hole

1шт.

24

H759110

ORIFICE PACKAGE

PLATE - header lift orifice, Cessna, 3/32 inch diameter hole (Replaces plate 596300R1)

1шт.

24

1261081C1

VALVE

- orifice, Victor

1шт.

25

REF

INSTRUCTION

VALVE - hydraulic control, for service parts refer to Chassis parts catalog

1шт.

26

218-5057

HYD CONNECTOR,9/16" - 18 JIC x 9/16" - 18 ORB

ADAPTER - straight, 9/16-18 inch flare x O-ring boss

1шт.

7

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk

3шт.

26a

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk

1шт.
