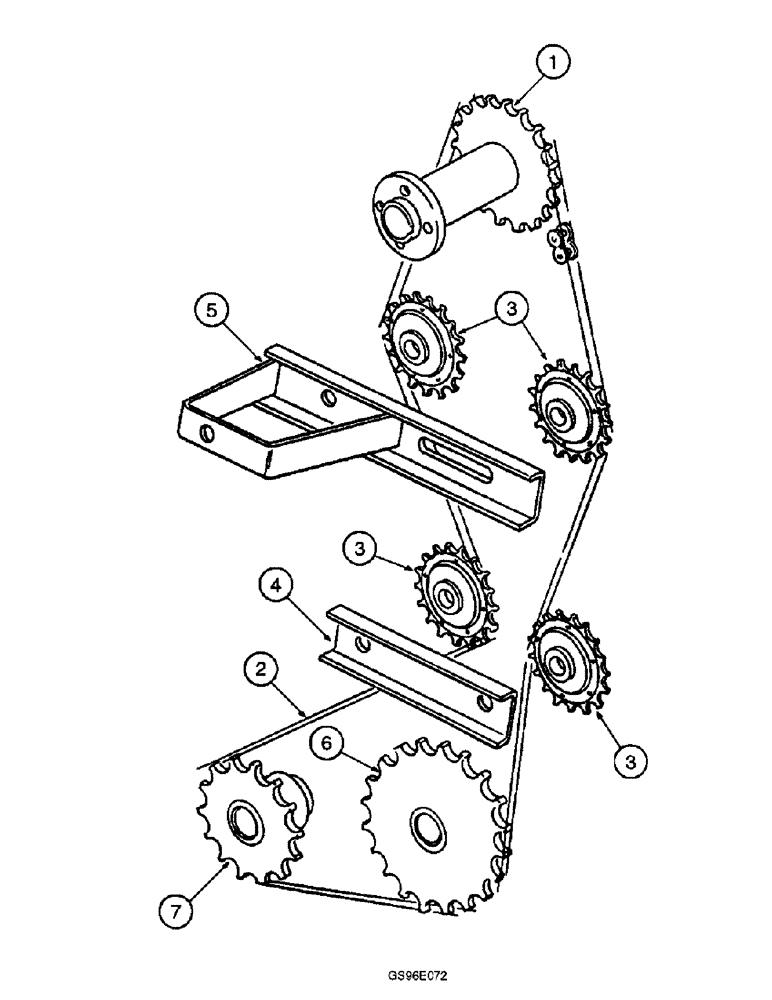

Запчасти Case IH INTERNATIONAL (4-10) - AUGER DRIVE, LEFT HAND (03) - MAIN GEARBOX

1

831876C1

SPROCKET ASSY.

SPROCKET - auger drive, left-hand, for connecting parts see pages 4-5 and 4-5B

1шт.

Q3936

KEY,Gib, 5/16" Sq x 2 1/2"

- gib, 5/16 x 2-1/2 inch

1шт.

2

REF

INSTRUCTION

CHAIN ASSEMBLY - auger drive use 161 links of 5/8 inch pitch roller chain from 10 foot roll 1791D

1шт.

241-1315

LINK, CONNECTING

LINK - connecting, single pitch, No. 50, 5/8 inch pitch

1шт.

3

565442R91

SPROCKET

- tightener, 17 tooth

4шт.

4

831945C1

CHANNEL

- chain guide front

1шт.

433-836

CARRIAGE BOLT,Sq Nk, 1/2" - 13 x 2 1/4", Gr 5

BOLT - carriage, 1/2 NC x 2-1/4 inch (Replaces bolt 486180R1)

2шт.

129-105

NUT,Hex, 1/2" - 13, Gr 5

(Replaces nut 120378) 1/2"-13, G5

2шт.

192-23

LOCK WASHER,1/2"

WASHER, LOCK, (Replaces washer 120384) 1/2"

2шт.

495-81024

WASHER,17/32" x 1 1/4" x .060"

- flat, 17/32 x 1-1/4 x 1/16 inch (Replaces washer 178374R1)

2шт.

498-81006

SQ HOLE WASHER,13.49mm ID x 31.75mm OD x 3.05mm Thk

- square hole, 17/32 x 1-1/4 x 1/8 inch (Replaces washer 607896R1)

2шт.

495-81287

WASHER,13.49mm ID x 31.75mm OD x 3.4mm Thk

- flat, 17/32 x 1-1/4 x 7/64 inch

2шт.

5

832147C1

SUPPORT

- knife drive rear

1шт.

433-840

CARRIAGE BOLT,Sq Nk, 1/2" - 13 x 2 1/2", Gr 5

BOLT - carriage, 1/2 NC x 2-1/2 inch (Replaces bolt 598815R1)

1шт.

433-836

CARRIAGE BOLT,Sq Nk, 1/2" - 13 x 2 1/4", Gr 5

BOLT - carriage, 1/2 NC x 2-1/4 inch (Replaces bolt 486180R1)

1шт.

129-105

NUT,Hex, 1/2" - 13, Gr 5

(Replaces nut 120378) 1/2"-13, G5

2шт.

192-23

LOCK WASHER,1/2"

WASHER, LOCK, (Replaces washer 120384) 1/2"

2шт.

495-81024

WASHER,17/32" x 1 1/4" x .060"

- flat, 17/32 x 1-1/4 x 1/16 inch (Replaces washer 178374R1)

2шт.

498-81006

SQ HOLE WASHER,13.49mm ID x 31.75mm OD x 3.05mm Thk

- square hole, 17/32 x 1-1/4 x 1/8 inch (Replaces washer 607896R1)

2шт.

6

609762R21

SPROCKET ASSY.

SPROCKET - rear auger driven, 30 tooth, for connecting parts see page 4-7 or 4-9

1шт.

249-1

KEY

- gib, 1/4 x 1-3/4 inch (Replaces key 249)

2шт.

7

609747R21

SPROCKET ASSY.

SPROCKET - front auger driven, 20 tooth, for connecting parts see page 4-7 or 4-9

1шт.

249-1

KEY

- gib, 1/4 x 1-3/4 inch (Replaces key 249)

2шт.

495-81073

WASHER,1-1/32" x 1-3/4" x .060" Thk

- flat, 1-1/32 x 1-3/4 x 1/16 inch (Replaces washer 609836R1)

1шт.

1791D

CHAIN (AG),#50, 192 Links x 15.88mm = 3048mm

CHAIN - bulk, 10 foot (3480 mm) roll

1шт.
