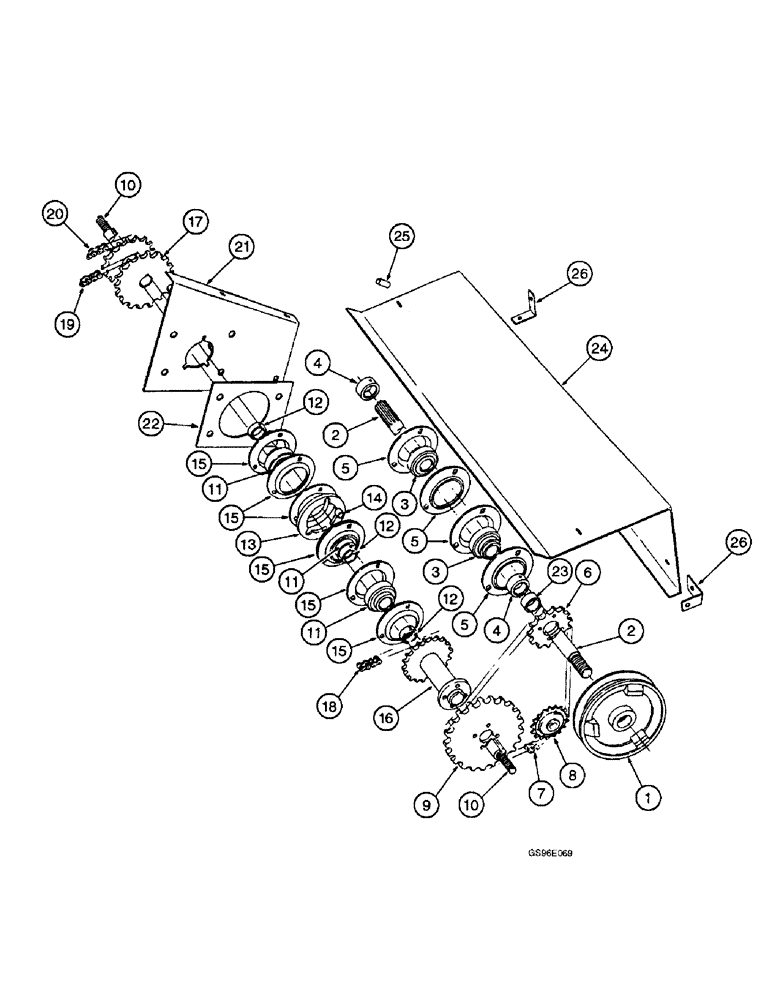

Запчасти Case IH INTERNATIONAL (4-04) - HEADER DRIVE (03) - MAIN GEARBOX

1

828965C1

PULLEY

- knife drive, for connecting parts, see page 4-21

1шт.

2

832355C1

SHAFT

- header drive, 12 foot

1шт.

2

832356C1

SHAFT

- header drive, 14 foot

1шт.

2

823529C1

SHAFT

- header drive, 16 foot

1шт.

3

485259R91

BEARING ASSY,1.2505" ID x 72 mm OD x 1.4844"

- fan, drive shaft

2шт.

4

455104R11

COLLAR

ASSEMBLY - locking, bearing

2шт.

483-1386

SET SCREW,Hex Soc, 3/8"-16 x 3/8"

SCREW - set, hex socket headless, 3/8 NC x 3/8 inch, cup point (Replaces screw 102592)

2шт.

5

825620C1

RETAINER

- bearing

4шт.

434-616

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1", Gr 5

BOLT - carriage, 3/8 NC x 1 inch (Replaces bolt 495967R1)

12шт.

425-106

NUT,3/8"-16, Cl 5

12шт.

192-21

LOCK WASHER,3/8"

WASHER, LOCK, (Replaces washer 120382) 3/8"

12шт.

6

595696R1

SPROCKET ASSY.

SPROCKET - countershaft drive, 24 tooth

1шт.

6

592960R1

SPROCKET ASSY.

SPROCKET - countershaft drive, slow speed, 20 tooth

1шт.

413-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

- hex, 5/16 NC x 3/4 inch (Replaces bolt 180077)

4шт.

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

4шт.

7

REF

INSTRUCTION

CHAIN ASSEMBLY - countershaft drive, use 63 links of 5/8 inch single pitch roller chain from 10 foot roll 1791D

1шт.

241-1315

LINK, CONNECTING

LINK - connecting, single pitch, No. 50, 5/8 inch pitch

1шт.

241-1715

LINK,15.88mm Pitch

LINK - offset, single pitch, No. 50, 5/8 inch pitch

1шт.

7

REF

INSTRUCTION

CHAIN ASSEMBLY - countershaft drive, slow speed, use 67 links of 5/8 inch single pitch roller chain from 10 foot roll 1791D

1шт.

241-1315

LINK, CONNECTING

LINK - connecting, single pitch, No. 50, 5/8 inch pitch

1шт.

241-1715

LINK,15.88mm Pitch

LINK - offset, single pitch, No. 50, 5/8 inch pitch

2шт.

8

565442R91

SPROCKET

- tightener, 17 tooth

1шт.

413-832

BOLT,Hex, 1/2" - 13 x 2", Gr 5

(Replaces bolt 180181) Hex, 1/2"-13 x 2", G5

1шт.

129-105

NUT,Hex, 1/2" - 13, Gr 5

(Replaces nut 120378) 1/2"-13, G5

1шт.

192-23

LOCK WASHER,1/2"

WASHER, LOCK, (Replaces washer 120384) 1/2"

1шт.

495-81287

WASHER,13.49mm ID x 31.75mm OD x 3.4mm Thk

- flat, 17/32 x 1-1/4 x 7/64 inch

1шт.

9

595707R1

SPROCKET ASSY.

SPROCKET - countershaft driven, 42 tooth

1шт.

9

595968R1

SPROCKET ASSY.

SPROCKET - countershaft driven, slow speed, 52 tooth

1шт.

113-103

BOLT,Hex, 5/16" - 18 x 1", Gr 5

(Replaces bolt 180079) Hex, 5/16"-18 x 1", G5, Full Thd

4шт.

425-105

NUT,5/16"-18, G5

- hex, 5/16 inch NC

4шт.

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

4шт.

10

831948C1

SHAFT

- counter, header drive, 12 foot

1шт.

10

831949C1

SHAFT

- counter, header drive, 14 foot

1шт.

10

823527C1

SHAFT

- counter, header drive, 16 foot

1шт.

425-1512

JAM NUT,Jam, 3/4"-10, G5

- hex jam, 3/4 inch NF

4шт.

11

455959R92

BEARING ASSY,28.57mm ID x 62mm OD x 18mm W

- countershaft

3шт.

12

557115R11

COLLAR

COLLAR - locking

3шт.

83-1315

SET SCREW,Hex Soc, 5/16"-18 x 5/16"

SCREW - set, hex socket, 5/16 NC x 5/16 inch, cup point (Replaces screw 115321)

3шт.

13

826058C1

RING

- countershaft center bearing support, 4-19/32 ID, used with headers having serial no. 1313 and after

1шт.

14

561277R1

SPACER,5/8" Tube x 1/2"

- support ring, 13/32 x 5/8 x 7/16 inch

3шт.

15

H747188

FLANGED BEARING,112.73 mm OD x 8.74 mm

FLANGE - bearing (Replaces flange 565631R1)

7шт.

434-616

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1", Gr 5

BOLT - carriage, 3/8 NC x 1 inch (Replaces bolt 495967R1)

3шт.

113-207

BOLT,Hex, 3/8" - 16 x 1", Gr 5

(Replaces bolt 180122) Hex, 3/8"-16 x 1", G5, Full Thd

3шт.

434-620

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1 1/4", Gr 5

BOLT, CARRIAGE, (Replaces bolt 550796R1) Short NK, 3/8"-16 x 1 1/4", G5, Full Thd

3шт.

425-106

NUT,3/8"-16, Cl 5

6шт.

192-21

LOCK WASHER,3/8"

WASHER, LOCK, (Replaces washer 120382) 3/8"

9шт.

16

831876C1

SPROCKET ASSY.

SPROCKET - auger drive, left-hand, for connecting parts see page 4-11

1шт.

Q3936

KEY,Gib, 5/16" Sq x 2 1/2"

- gib, 5/16 x 2-1/2 inch

1шт.

17

831883C1

SPROCKET ASSY.

SPROCKET - auger drive, right-hand, for connecting parts see page 4-13

1шт.

Q3936

KEY,Gib, 5/16" Sq x 2 1/2"

- gib, 5/16 x 2-1/2 inch

1шт.

18

REF

INSTRUCTION

CHAIN - auger drive, left-hand, for connecting parts see page 4-11

1шт.

19

REF

INSTRUCTION

CHAIN - auger drive, right-hand, for connecting parts see page 4-13

1шт.

20

REF

INSTRUCTION

CHAIN - reel drive, for connecting parts see pages 4-25 and 4-25B

1шт.

21

831999C1

SUPPORT

- countershaft, right-hand

1шт.

113-417

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5, Full Thd

(Replaces bolt 180175) Hex, 1/2"-13 x 1 1/4", G5, Full Thd

4шт.

129-105

NUT,Hex, 1/2" - 13, Gr 5

(Replaces nut 120378) 1/2"-13, G5

2шт.

192-23

LOCK WASHER,1/2"

WASHER, LOCK, (Replaces washer 120384) 1/2"

4шт.

22

832330C1

BAR

- countershaft, right-hand, support shim

2шт.

23

825531C1

SPACER

- countershaft drive sprocket

1шт.

24

832018C1

SHIELD

- drive shaft, 12 foot header (Replaces shield 824068C91)

1шт.

24

832019C1

SHIELD

- drive shaft, 14 foot header (Replaces shield 824069C91)

1шт.

24

823528C1

SHIELD

- drive shaft, 16 foot header

1шт.

413-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

- hex, 5/16 NC x 3/4 inch (Replaces bolt 180077)

2шт.

113-121

BOLT,Hex, 5/16" - 18 x 2", Gr 5

(Replaces bolt 180087) Hex, 5/16"-18 x 2", G5

1шт.

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT - hex serrated flange, 5/16 inch NC

2шт.

495-81114

WASHER,8.74mm ID x 19.05mm OD x 1.7mm Thk

- flat, 11/32 x 3/4 x 3/64 inch (Replaces washer 619855R1)

3шт.

25

65881H

SPACER,1/4" Pipe x 1 1/4"

- tubular, 1/4 x 1-1/4 inch, shield mounting

1шт.

25

121606A1

SPACER

- pipe, 1/4 x 1 inch, shield mounting (Replaces spacer U13039)

1шт.

26

832161C1

ANGLE

- shield, outer left-hand support

2шт.

413-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

- hex, 5/16 NC x 3/4 inch (Replaces bolt 180077)

3шт.

113-207

BOLT,Hex, 3/8" - 16 x 1", Gr 5

(Replaces bolt 180122) Hex, 3/8"-16 x 1", G5, Full Thd

1шт.

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT - hex serrated flange, 5/16 inch NC

2шт.

425-105

NUT,5/16"-18, G5

- hex, 5/16 inch NC

1шт.

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

192-21

LOCK WASHER,3/8"

WASHER, LOCK, (Replaces washer 120382) 3/8"

1шт.

495-81114

WASHER,8.74mm ID x 19.05mm OD x 1.7mm Thk

- flat, 11/32 x 3/4 x 1/16 inch (Replaces washer 619855R1)

3шт.

1791D

CHAIN (AG),#50, 192 Links x 15.88mm = 3048mm

CHAIN - bulk, 10 foot (3480 mm) roll

1шт.
