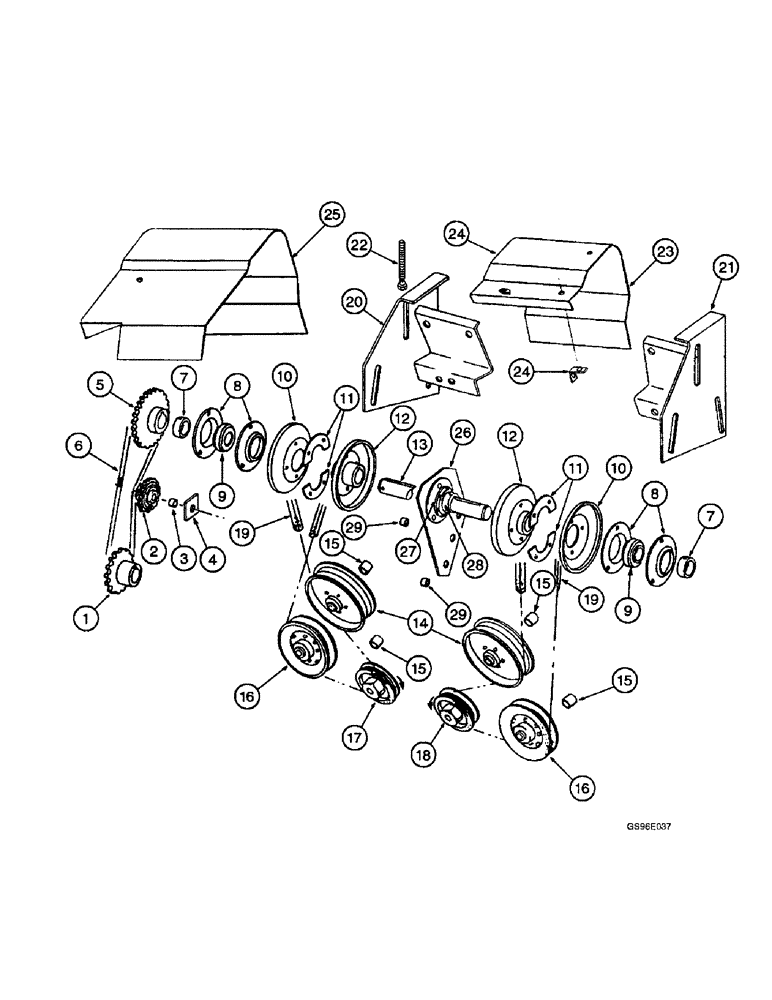

Запчасти Case IH INTERNATIONAL (3-18) - CONVEYOR DRIVE (03) - MAIN GEARBOX

1

829353C1

DRIVE SPROCKET

SPROCKET - roller drive shaft, 23 tooth, for connecting parts see page 3-11 or 3-13

1шт.

126-125

WOODRUFF KEY,#B, 5/16" x 1", HT

1шт.

83-1315

SET SCREW,Hex Soc, 5/16"-18 x 5/16"

SCREW - set, hex socket, 5/16 NC x 5/16 inch, cup point

1шт.

2

607779R91

DRIVE SPROCKET

SPROCKET - idler, roller drive tightener, 18 tooth

1шт.

113-427

BOLT,Hex, 1/2" - 13 x 3-1/4", Gr 5

(Replaces bolt 180191) Hex, 1/2"-13 x 3 1/4", G5

1шт.

129-105

NUT,Hex, 1/2" - 13, Gr 5

(Replaces nut 120378) 1/2"-13, G5

1шт.

192-23

LOCK WASHER,1/2"

WASHER, LOCK, (Replaces washer 120384) 1/2"

1шт.

495-81287

WASHER,13.49mm ID x 31.75mm OD x 3.4mm Thk

- flat, 17/32 x 1-1/4 x 7/64 inch

1шт.

3

259342R1

SPACER

- sprocket, 1-1/4 inch (32 mm) long, cut from 1/2 inch pipe

1шт.

4

647605C1

BAR

- tightener sprocket spacer

1шт.

5

829359C1

SPROCKET ASSY.

SPROCKET - roller drive shaft driven, 35 tooth

1шт.

Q1482

KEY,5/16" Sq x 1", Par

- square, 5/16 x 1 inch

1шт.

6

REF

INSTRUCTION

CHAIN ASSEMBLY - roller driveshaft drive, use 57 links of 1/2 inch pitch standard roller chain from 10 foot roll 1790D

1шт.

241-1314

CHAIN LINK

LINK - connecting, single pitch, No. 40, 1/2 inch pitch

1шт.

241-1714

CHAIN LINK

LINK - offset, single pitch, No. 40, 1/2 inch pitch

1шт.

7

557115R11

COLLAR

COLLAR - locking, bearing

2шт.

83-1315

SET SCREW,Hex Soc, 5/16"-18 x 5/16"

SCREW - set, hex socket, 5/16 NC x 5/16 inch, cup point

2шт.

8

H747188

FLANGED BEARING,112.73 mm OD x 8.74 mm

FLANGE - bearing (Replaces flange 565631R1)

6шт.

434-616

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1", Gr 5

BOLT - carriage, 3/8 NC x 1 inch (Replaces bolt 495967R1)

9шт.

425-106

NUT,3/8"-16, Cl 5

9шт.

192-21

LOCK WASHER,3/8"

WASHER, LOCK, (Replaces washer 120382) 3/8"

9шт.

9

455959R92

BEARING ASSY,28.57mm ID x 62mm OD x 18mm W

- shaft, roller drive

2шт.

10

592730R1

PULLEY

- roller drive shaft, adjustable half

2шт.

11

592127R1

SPACER

- pulley

24шт.

12

829357C1

PULLEY

- roller drive shaft, adjustable half

2шт.

23875R1

KEY,5/16" Sq x 6 1/2", Par

- square, 5/16 x 5/16 inch, 6-1/2 inch long, purchase locally

2шт.

485-15016

SET SCREW,Sq Hd, 1/2"-13 x 1"

SCREW - set, square head, 1/2 NC x 1 inch, cup point

2шт.

329-148

NUT,Jam, 1/2"-13, G8

- hex jam, 1/2 inch NC (Replaces nut 120238)

2шт.

426-516

BOLT,Hex, 5/16" - 18 x 1", Gr 8

- hex, 5/16 NC x 1 inch, grade 8 (Replaces bolt 20617R1)

8шт.

329-105

NUT,5/16"-18, G8

(Replaces nut 25520R1) 5/16"-18, G8

8шт.

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

8шт.

13

829362C1

SHAFT

- roller drive

1шт.

132-150

COTTER PIN,1/4" x 1 1/2"

Pin, Split (Cotter), (Replaces pin 103420) 1/4" x 1 1/2"

1шт.

495-81191

WASHER,1 5/32" x 2" x .060"

- flat, 1-5/32 x 2 x 3/64 inch (Replaces washer 20885R1)

1шт.

14

607443R91

PULLEY

- roller drive belt tightener

2шт.

433-836

CARRIAGE BOLT,Sq Nk, 1/2" - 13 x 2 1/4", Gr 5

BOLT - carriage, 1/2 NC x 2-1/4 inch, not used with 24-1/2 foot header

2шт.

413-832

BOLT,Hex, 1/2" - 13 x 2", Gr 5

Used with 24-1/2 foot header only Hex, 1/2"-13 x 2", G5

2шт.

129-105

NUT,Hex, 1/2" - 13, Gr 5

(Replaces nut 120378) 1/2"-13, G5

2шт.

192-23

LOCK WASHER,1/2"

WASHER, LOCK, (Replaces washer 120384) 1/2"

2шт.

498-81006

SQ HOLE WASHER,13.49mm ID x 31.75mm OD x 3.05mm Thk

- square hole, 17/32 x 1-1/4 x 1/8 inch

2шт.

495-81287

WASHER,13.49mm ID x 31.75mm OD x 3.4mm Thk

- flat, 17/32 x 1-1/4 x 7/64 inch

2шт.

15

610395R1

SPACER,1/2" X-Strng Pipe x 3/8"

- pulley, 1/2 x 3/8 inch

4шт.

16

161173C91

PULLEY

- idler, roller drive belt tightener

2шт.

433-836

CARRIAGE BOLT,Sq Nk, 1/2" - 13 x 2 1/4", Gr 5

BOLT - carriage, not used with 24-1/2 foot header (Replaces bolt 486180R1)

2шт.

80087972

BOLT,Hex, 1/2" - 13 x 2 1/2", Gr 5

- hex, 1/2 NC x 2-1/2 inch, used with 24-1/2 foot header only

2шт.

129-105

NUT,Hex, 1/2" - 13, Gr 5

(Replaces nut 120378) 1/2"-13, G5

2шт.

192-23

LOCK WASHER,1/2"

WASHER, LOCK, (Replaces washer 120384) 1/2"

2шт.

498-81006

SQ HOLE WASHER,13.49mm ID x 31.75mm OD x 3.05mm Thk

- square hole, 17/32 x 1-1/4 x 1/8 inch, not for 24-1/2 foot header

2шт.

495-81024

WASHER,17/32" x 1 1/4" x .060"

- flat, 17/32 x 1-1/4 x 1/16 inch (Replaces washer 178374R1)

2шт.

495-81287

WASHER,13.49mm ID x 31.75mm OD x 3.4mm Thk

- flat, 17/32 x 1-1/4 x 7/64 inch, used with 24-1/2 foot header

4шт.

17

824910C1

PULLEY

- apron roller driven, left-hand

1шт.

18

824911C1

PULLEY

- apron roller driven, right-hand, for connecting parts see page 3-15 or 3-17

1шт.

19

829356C1

BELT

- roller drive, not for use with 24-1/2 foot header

2шт.

19

607666R1

V-BELT,0.63" W

Roller drive, Used with 24-1/2 foot header 0.63" W

2шт.

20

830095C1

BRACKET

- pulley adjusting, left-hand, used with 24-1/2 foot header

1шт.

21

830096C1

BRACKET

- pulley adjusting, right-hand, used with 24-1/2 foot header

1шт.

113-417

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5, Full Thd

(Replaces bolt 180175) Hex, 1/2"-13 x 1 1/4", G5, Full Thd

4шт.

113-410

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

(Replaces bolt 180177) Hex, 1/2"-13 x 1 1/2", G5, Full Thd

2шт.

129-105

NUT,Hex, 1/2" - 13, Gr 5

(Replaces nut 120378) 1/2"-13, G5

2шт.

192-23

LOCK WASHER,1/2"

WASHER, LOCK, (Replaces washer 120384) 1/2"

6шт.

495-81287

WASHER,13.49mm ID x 31.75mm OD x 3.4mm Thk

- flat, 17/32 x 1-1/4 x 7/64 inch

10шт.

495-81024

WASHER,17/32" x 1 1/4" x .060"

- flat, 17/32 x 1-1/4 x 1/16 inch (Replaces washer 178374R1)

2шт.

22

599424R1

BOLT,Hex, 7/16" - 14 x 4.25", Gr 2

- bracket adjusting, used with 24-1/2 foot header

2шт.

129-104

NUT,7/16"-14, G5

(Replaces nut 271501) 7/16"-14, G5

2шт.

23

830879C1

SHIELD

- roller drive, right-hand, used with headers having serial no. 1225 and after

1шт.

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

(Replaces bolt 180120) Hex, 3/8"-16 x 3/4", G5, Full Thd

3шт.

425-106

NUT,3/8"-16, Cl 5

3шт.

192-21

LOCK WASHER,3/8"

WASHER, LOCK, (Replaces washer 120382) 3/8"

3шт.

24

823660C1

ANGLE

- right-hand shield, serial no. 1225 and after

2шт.

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

(Replaces bolt 180120) Hex, 3/8"-16 x 3/4", G5, Full Thd

2шт.

425-106

NUT,3/8"-16, Cl 5

2шт.

192-21

LOCK WASHER,3/8"

WASHER, LOCK, (Replaces washer 120382) 3/8"

2шт.

25

830911C1

SHIELD

- left-hand, roller drive, serial no. 1225 and after

1шт.

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

(Replaces bolt 180120) Hex, 3/8"-16 x 3/4", G5, Full Thd

4шт.

425-106

NUT,3/8"-16, Cl 5

2шт.

192-21

LOCK WASHER,3/8"

WASHER, LOCK, (Replaces washer 120382) 3/8"

4шт.

495-61041

WASHER,10.31mm ID x 25.4mm OD x 1.6mm Thk

2шт.

26

830316C1

SUPPORT

- roller drive shaft center, used with headers having serial no. 2501 and after

1шт.

113-708

BOLT,Hex, 3/4" - 10 x 2", Gr 5

(Replaces bolt 271771) Hex, 3/4"-10 x 2", G5

1шт.

129-108

NUT,3/4"-10, G5

(Replaces nut 220086) 3/4"-10, G5

1шт.

192-27

LOCK WASHER,3/4"

WASHER, LOCK, (Replaces washer 131046) 3/4"

1шт.

495-81042

WASHER,25/32" x 1 1/2" x .120"

- flat, 25/32 x 1-1/2 x 7/64 inch

2шт.

27

155802C91

BEARING

- roller drive shaft center, used with headers having serial no., Serial Range: 2501-2523

1шт.

For service order bearing 455960R92, collar 557115R11 and (2) 565631R1 retainers.

1шт.

27

455959R92

BEARING ASSY,28.57mm ID x 62mm OD x 18mm W

- shaft, roller drive shaft center, used with headers having serial no. 2524 and after

1шт.

434-616

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1", Gr 5

BOLT - carriage, 3/8 NC x 1 inch (Replaces bolt 495967R1)

3шт.

425-106

NUT,3/8"-16, Cl 5

3шт.

192-21

LOCK WASHER,3/8"

WASHER, LOCK, (Replaces washer 120382) 3/8"

3шт.

28

572224R11

COLLAR

ASSEMBLY - locking, used with headers having serial no., Serial Range: 2501-2523

1шт.

For service order bearing 455960R92, collar 557115R11 and (2) 565631R1 retainers.

1шт.

483-1254

SET SCREW,Hex Soc, 1/4"-20 x 1/4"

SCREW - set, hex socket headless, 1/4 NC x 1/4 inch, cup point

1шт.

28

557115R11

COLLAR

COLLAR ASSEMBLY - locking, used with headers having serial no. 2524 and after

1шт.

83-1315

SET SCREW,Hex Soc, 5/16"-18 x 5/16"

SCREW - set, hex socket, 5/16 NC x 5/16 inch, cup point

1шт.

29

468530R1

SPACER,3/4" Pipe x 9/16"

- center support

2шт.

1790D

CHAIN (AG)

CHAIN - bulk, 10 foot (3048 mm) long

1шт.
