Запчасти Case IH INTERNATIONAL (3-16) - CONVEYOR DRIVE ROLLER AND SHIELD 10.5, 12.5, 14.5, 16.5, 19.5 AND 24.5 FOOT HEADERS (03) - MAIN GEARBOX

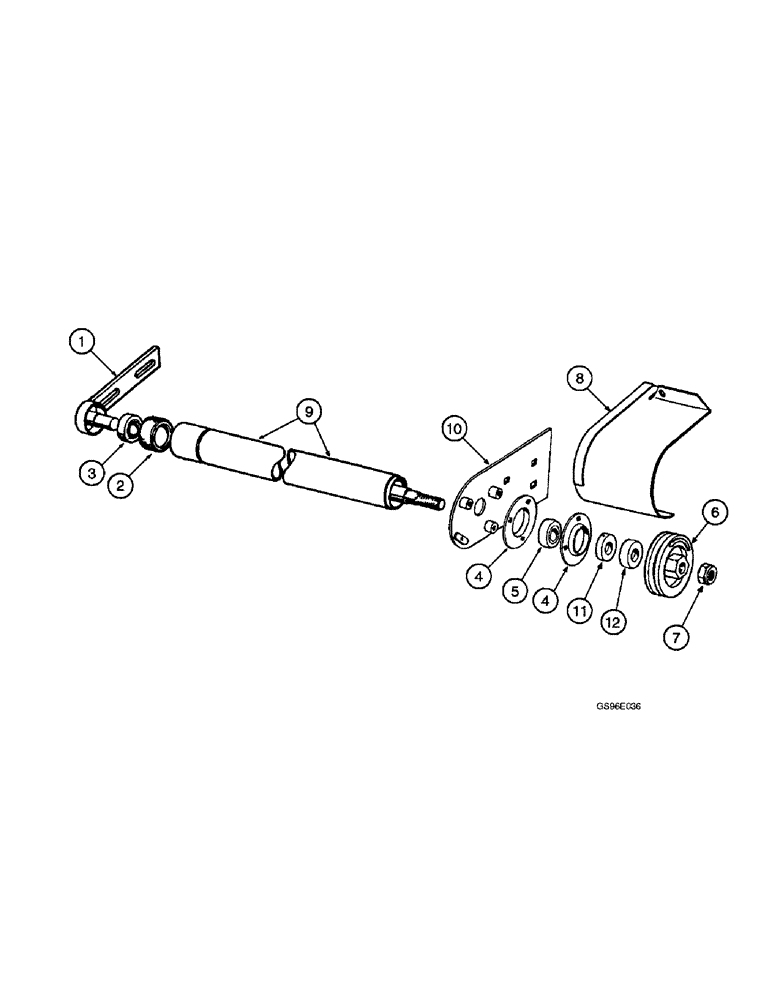

Схема запчастей Case IH INTERNATIONAL - (3-16) - CONVEYOR DRIVE ROLLER AND SHIELD 10.5, 12.5, 14.5, 16.5, 19.5 AND 24.5 FOOT HEADERS (03) - MAIN GEARBOX

Артикул

Название

Примечание

Количество

1

824563C1

SUPPORT ASSY.

SUPPORT - drive roller front

2шт.

113-207

BOLT,Hex, 3/8" - 16 x 1", Gr 5

(Replaces bolt 180122) Hex, 3/8"-16 x 1", G5, Full Thd

4шт.

192-21

LOCK WASHER,3/8"

WASHER, LOCK, (Replaces washer 120382) 3/8"

4шт.

495-61041

WASHER,10.31mm ID x 25.4mm OD x 1.6mm Thk

4шт.

2

592142R1

RETAINER

- drive roller front

2шт.

3

537290R91

BALL BEARING,20mm ID x 47mm OD x 14mm W

- Roller front (Replaces bearing 608130R91)

2шт.

4

462360R1

FLANGED BEARING

- bearing

4шт.

413-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

- hex, 5/16 NC x 3/4 inch (Replaces bolt 180077)

6шт.

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

6шт.

495-81114

WASHER,8.74mm ID x 19.05mm OD x 1.7mm Thk

- flat, 11/32 x 3/4 x 3/64 inch (Replaces washer 619855R1)

6шт.

5

204807C91

BEARING ASSY,25.4mm ID x 52mm OD x 15mm W

BEARING - ball, drive roller rear

2шт.

6

824910C1

PULLEY

- apron roller driven, left-hand, right-hand thread

1шт.

6

824911C1

PULLEY

- apron roller driven, right-hand, left-hand thread (Shown)

1шт.

7

22346R1

JAM NUT,Jam, 3/4"-10, G5, LH

- hex jam, 3/4 inch NC, with left-hand thread

1шт.

7

425-1412

JAM NUT,Jam, 3/4"-10, G5

- hex jam, 3/4 inch NC, left-hand, with right-hand thread (Replaces nut 426897)

1шт.

8

824934C2

SHIELD

- driven pulley, left-hand

1шт.

8

824935C2

SHIELD

- driven pulley, right-hand (Shown)

1шт.

413-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

- hex, 5/16 NC x 3/4 inch (Replaces bolt 180077)

2шт.

425-105

NUT,5/16"-18, G5

- hex, 5/16 inch NC

2шт.

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

4шт.

440-13112

SCREW,Cross Pan Hd, 5/16"-18 x 3/4"

- machine, pan head, 5/16 NC x 3/4 inch (Replaces screw 160688)

2шт.

9

827525C1

ROLLER

- apron drive, left-hand

1шт.

9

827526C1

ROLLER

- apron drive, right-hand

1шт.

10

830985C1

SUPPORT

- roller rear, left-hand

1шт.

10

830986C1

SUPPORT

- roller rear, right-hand

1шт.

434-612

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 3/4", Gr 5

BOLT - carriage, 3/8 NC x 3/4 inch (Replaces bolt 598809R1)

6шт.

425-106

NUT,3/8"-16, Cl 5

6шт.

192-21

LOCK WASHER,3/8"

WASHER, LOCK, (Replaces washer 120382) 3/8"

6шт.

11

455102R21

COLLAR

ASSEMBLY - locking, bearing

2шт.

83-1254

SET SCREW,Hex Soc, 1/4"-20 x 1/4"

SCREW - set, hex socket, 1/4 NC x 1/4 inch, cup point (Replaces screw 102569)

2шт.

12

831664C1

SPACER

- driven pulley

1шт.

Выбрано товаров: 31
