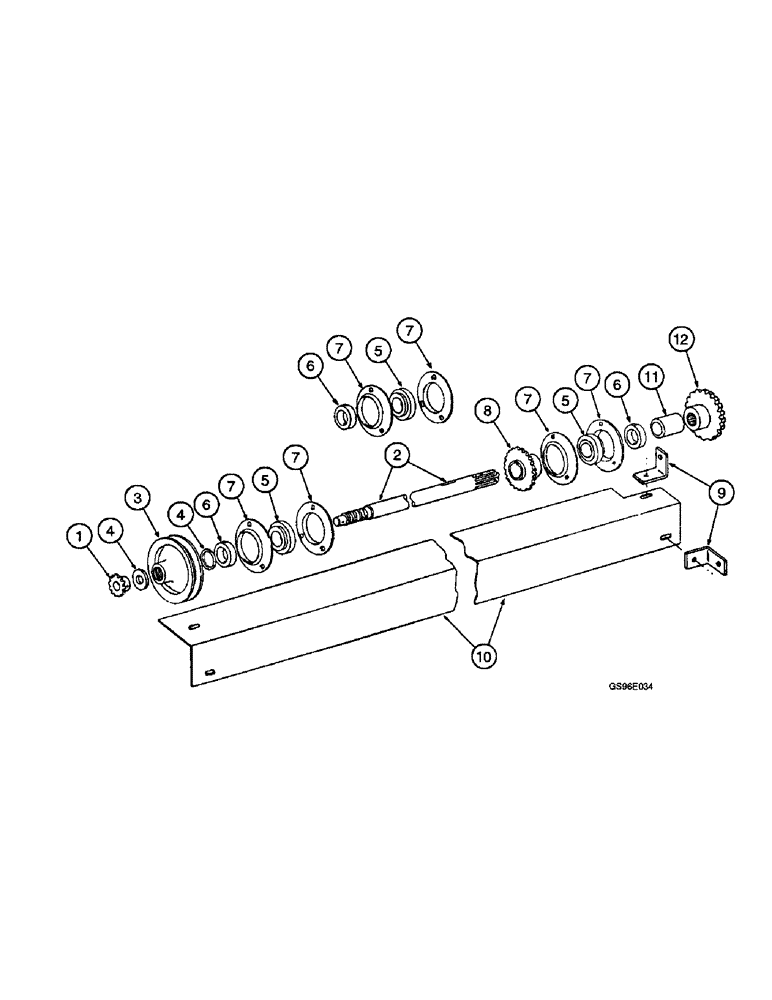

Запчасти Case IH INTERNATIONAL (3-12) - HEADER DRIVE 12.5, 14.5, 16.5 AND 19.5 FOOT HEADERS, SERIAL NUMBER 2501 AND AFTER (03) - MAIN GEARBOX

1

829299C1

SPROCKET ASSY.

SPROCKET - reel drive, 11 tooth, for connecting parts see pages 3-41 and 3-41B

1шт.

38-32020

PIN,5/16" x 1 1/4", Coiled

(replaces pin 19790R1) 5/16" x 1 1/4", Coiled

1шт.

2

829349C1

SHAFT

- counter, header drive, 12-1/2 foot

1шт.

2

829350C1

SHAFT

- counter, header drive, 14-1/2 foot

1шт.

2

829351C2

SHAFT

- counter, header drive, 16-1/2 foot

1шт.

2

831294C1

SHAFT

- counter, header drive, 19-1/2 foot

1шт.

3

REF

INSTRUCTION

PULLEY - knife drive, for service parts see page 3-37

1шт.

4

495-81041

WASHER,25/32" x 1 1/2" x .060"

- flat, 25/32 x 1-1/2 x 1/16 inch (Replaces washer 21753R1)

3шт.

5

565672R92

SPHERICAL BEARING,1.2505" ID x 72 mm OD x 1"

BEARING - countershaft, three used with 19-1/2 foot (Replaces bearing 565672R91)

2шт.

6

455104R11

COLLAR

- locking, bearing, three used with 19-1/2 foot

2шт.

483-1386

SET SCREW,Hex Soc, 3/8"-16 x 3/8"

SCREW - set, hex socket headless, 3/8 NC x 3/8 inch, cup point, three used with 19-1/2 foot (Replaces screw 102592)

2шт.

7

617863R1

FLANGED BEARING

- bearing, six used with 19-1/2 foot

4шт.

434-616

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1", Gr 5

BOLT - carriage, 3/8 NC x 1 inch, nine used with 19-1/2 foot (Replaces bolt 495967R1)

6шт.

425-106

NUT,3/8"-16, Cl 5

9 used with 19-1/2 foot 3/8"-16, G5

6шт.

192-21

LOCK WASHER,3/8"

WASHER, LOCK, , 9 used with 19-1/2 foot (Replaces washer 120382) 3/8"

6шт.

8

829353C1

DRIVE SPROCKET

SPROCKET - roller drive shaft, 23 tooth

1шт.

126-125

WOODRUFF KEY,#B, 5/16" x 1", HT

1шт.

83-1315

SET SCREW,Hex Soc, 5/16"-18 x 5/16"

SCREW - set, hex socket, 5/16 NC x 5/16 inch cup point (Replaces screw 115321)

1шт.

9

829393C1

ANGLE

- drive shaft shield support

4шт.

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

(Replaces bolt 180120) Hex, 3/8"-16 x 3/4", G5, Full Thd

6шт.

113-207

BOLT,Hex, 3/8" - 16 x 1", Gr 5

(Replaces bolt 180122) Hex, 3/8"-16 x 1", G5, Full Thd

2шт.

425-106

NUT,3/8"-16, Cl 5

8шт.

192-21

LOCK WASHER,3/8"

WASHER, LOCK, (Replaces washer 120382) 3/8"

8шт.

10

829396C2

ANGLE

- drive shaft shield, 12-1/2 foot

1шт.

10

829397C2

ANGLE

- drive shaft shield, 14-1/2 foot

1шт.

10

829398C2

ANGLE

- drive shaft shield, 16-1/2 foot

1шт.

10

831295C3

ANGLE

- drive shaft shield, 19-1/2 foot

1шт.

11

829352C1

SPACER

- drive sprocket, for use with hay conditioner, prior to serial no. 3101

1шт.

12

828807C1

SPROCKET ASSY.

SPROCKET - drive, for use with hay conditioner, prior to serial no. 3101

1шт.

38904K

SET SCREW,1/2" - 20 x 1-9/16"

SCREW - set, 1/2 NF x 1 inch, sprocket retaining

1шт.

425-158

JAM NUT,Jam, 1/2"-20, G5

(Replaces nut 124934) Jam, 1/2"-20, G5

1шт.
