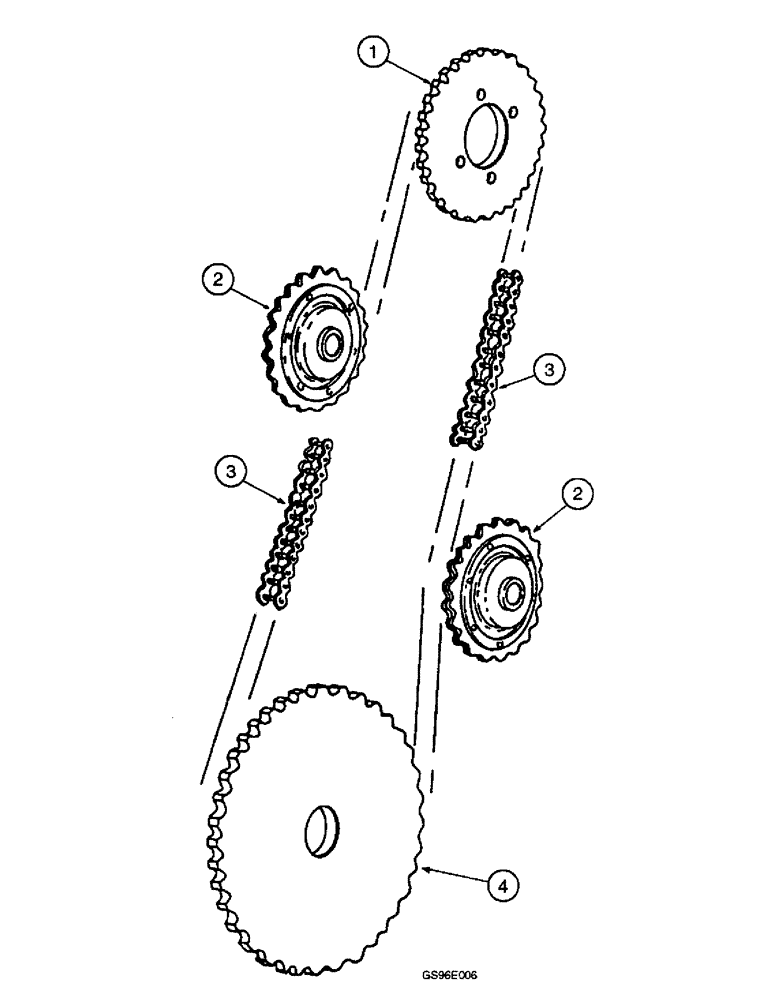

Запчасти Case IH INTERNATIONAL (2-12) - AUGER DRIVE (03) - MAIN GEARBOX

1

595696R1

SPROCKET ASSY.

SPROCKET - auger drive, regular, 24 tooth

1шт.

413-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

- hex, 5/16 NC x 3/4 inch (Replaces bolt 180077)

4шт.

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

4шт.

2

565442R91

SPROCKET

- tightener, 17 teeth

2шт.

113-441

BOLT,Hex, 1/2" - 13 x 2-1/4", Gr 5

Hex, 1/2"-13 x 2 1/4", G5 (Replaces bolt 180183)

2шт.

129-105

NUT,Hex, 1/2" - 13, Gr 5

(Replaces nut 120378) 1/2"-13, G5

2шт.

192-23

LOCK WASHER,1/2"

WASHER, LOCK, (Replaces washer 120384) 1/2"

2шт.

495-81287

WASHER,13.49mm ID x 31.75mm OD x 3.4mm Thk

- flat, 17/32 x 1-1/4 x 7/64 inch

3шт.

3

REF

INSTRUCTION

CHAIN ASSEMBLY - auger drive, use 153 links of 5/8 inch pitch standard roller chain from 10 foot roll 1791D

1шт.

241-1315

LINK, CONNECTING

LINK - connecting, 5/8 inch pitch, No. 50, single pitch

1шт.

241-1715

LINK,15.88mm Pitch

LINK - offset, 5/8 inch pitch, No. 50, single pitch

1шт.

4

828835C91

SPROCKET ASSY.

SPROCKET - auger drive, 66 tooth

1шт.

1791D

CHAIN (AG),#50, 192 Links x 15.88mm = 3048mm

CHAIN - bulk, 10 foot (3048 mm) roll

1шт.
