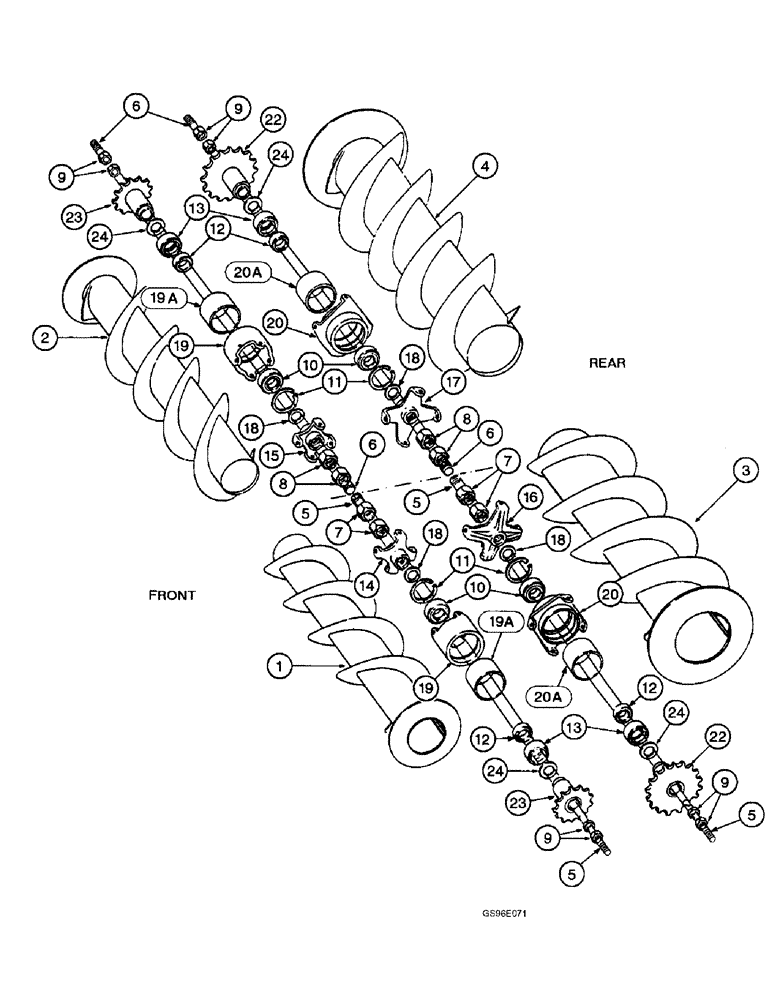

Запчасти Case IH INTERNATIONAL (4-08) - AUGER AND SHAFTS, FRONT AND REAR AUGER BEARING STOPS WELDED TO FRAME, SERIAL NUMBER 1370 AND AFTER (15) - CROP CONDITIONING

1

609666R92

AUGER

- 12 foot front, left-hand

1шт.

1

609668R92

AUGER

- 14 foot front, left-hand

1шт.

1

595636R92

AUGER

- 16 foot front, left-hand

1шт.

2

609667R92

AUGER

- 12 foot front, right-hand

1шт.

2

609669R92

AUGER

- 14 foot front, right-hand

1шт.

2

595637R92

AUGER

- 16 foot front, right-hand

1шт.

3

609687R92

AUGER

- 12 foot rear, left-hand

1шт.

3

609689R92

AUGER

- 14 foot rear, left-hand

1шт.

3

595642R92

AUGER

- 16 foot rear, left-hand

1шт.

4

609688R92

AUGER

- 12 foot rear, right-hand

1шт.

4

609690R92

AUGER

- 14 foot rear, right-hand

1шт.

4

595643R92

AUGER

- 16 foot rear, right-hand

1шт.

598059R1

SCREW

- hex socket, 3/8 NC x 7/16 inch (Replaces screw 823944C1)

32шт.

495-51041

WASHER,3/8"

- flat, 13/32 x 47/64 x 1/16 inch, front auger (Replaces washer 469668R1)

8шт.

5

831908C1

SHAFT

- front and rear auger drive, left-hand

2шт.

6

831905C1

SHAFT

- front and rear auger drive, right-hand

2шт.

7

425-1416

JAM NUT,Jam, 1"-8, G5

- hex jam, 1 inch NC (Replaces nut 426899)

4шт.

8

129-356

NUT - hex jam, type 5, left-hand (Replaces nuts 22851R1 and 16683R1)

4шт.

9

425-1510

JAM NUT,Jam, 5/8"-18, G5

- hex, jam, 5/8 inch NF (Replaces nut 124944)

8шт.

10

609654R91

BEARING, BALL,25mm ID x 62mm OD x 17mm W

BEARING - drive shaft inner

4шт.

11

100-21244

SNAP RING,2.44", Int, #244

Ring, Snap, , 2 per brg (Replaces 641207R1) 2.44", Int, #244

8шт.

12

295109R91

BALL BEARING

- ball, drive shaft outer

4шт.

13

609659R2

RETAINER

PAD - outer bearing

4шт.

14

609660R2

DIFF. SPIDER

SPIDER - front auger drive shaft, left-hand

1шт.

15

609661R2

DIFF. SPIDER

SPIDER - front auger drive shaft, right-hand

1шт.

16

609682R2

SPIDER

- rear auger drive shaft, left-hand

1шт.

17

609683R2

DIFF. SPIDER

SPIDER - rear auger drive shaft, right-hand

1шт.

18

495-81074

WASHER,1 1/32" x 1 3/4" x .120"

- flat, 1-1/32 x 1-3/4 x 7/64" (Replaces washer 614451R1)

8шт.

19

825090C91

HOUSING

ASSEMBLY - front auger support

2шт.

19a

609663R2

BUSHING

- auger support

2шт.

20

825091C91

HOUSING

ASSEMBLY - rear auger support

2шт.

20a

609663R2

BUSHING

- auger support

2шт.

86636814

LUBE NIPPLE,1/4"-28 x .52" lg

FITTING - grease, straight, 1/4-28 special threads x 1/2"

4шт.

22

609762R21

SPROCKET ASSY.

SPROCKET - rear auger driven, 30 tooth, for connecting parts see page 4-11 or 4-13

2шт.

249-1

KEY

- gib, 1/4 x 1-3/4 inch (Replaces key 249)

2шт.

23

609747R21

SPROCKET ASSY.

SPROCKET - front auger driven, 20 tooth, for connecting parts see page 4-11 or 4-13

1шт.

249-1

KEY

- gib, 1/4 x 1-3/4 inch (Replaces key 249)

2шт.

24

495-81073

WASHER,1-1/32" x 1-3/4" x .060" Thk

- flat, 1-1/32 x 1-3/4 x 1/16 inch (Replaces washer 609836R1)

1шт.
