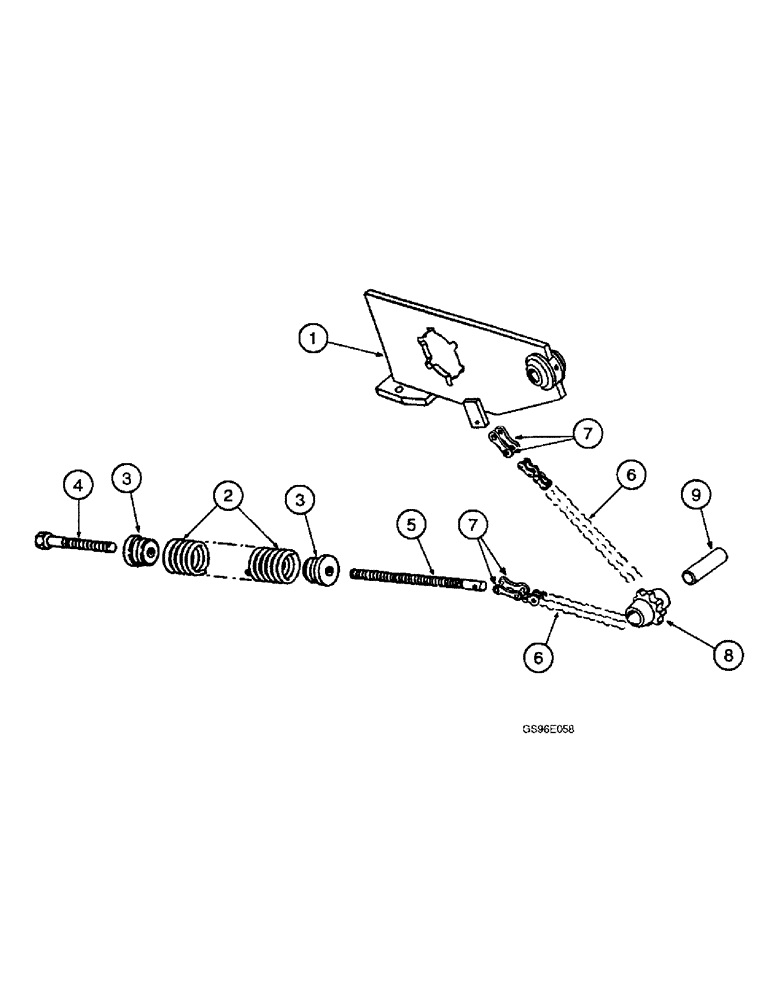

Запчасти Case IH INTERNATIONAL (3-62) - CONDITIONER ROLL TENSION ADJUSTMENT, HEADER MOUNTED, PRIOR TO SERIAL NUMBER 3101 (15) - CROP CONDITIONING

1

REF

INSTRUCTION

ARM - upper roll pivot, for service see page 3-61

1шт.

2

596191R1

SPRING

- roll tension

2шт.

3

591547R1

PLUG

- spring retaining

4шт.

4

149439C1

SPECIAL BOLT,Spcl, Hex, 1/2" - 13 x 4.25", Gr 5

BOLT - tension spring anchor (Replaces bolt 596366R1)

2шт.

129-105

NUT,Hex, 1/2" - 13, Gr 5

(Replaces nut 120378) 1/2"-13, G5

2шт.

5

828087C1

STUD

- tension adjusting

2шт.

129-105

NUT,Hex, 1/2" - 13, Gr 5

(Replaces nut 120378) 1/2"-13, G5

2шт.

6

REF

INSTRUCTION

CHAIN ASSEMBLY - roll tension, use 51 links of 5/8 inch standard pitch roller chain from 10 foot roll 1791D

2шт.

7

242-1310

SPRING CLIP

LINK - connecting, double pitch, No. 2050, 1-1/4 inch

4шт.

8

828526C2

SPROCKET ASSY.

SPROCKET - tension chain, 10 tooth

2шт.

219-28

LUBE NIPPLE,5/16" - 32

FITTING - grease, 5/16 inch straight

2шт.

9

829532C1

SPACER

- sprocket

2шт.

113-447

BOLT,Hex, 1/2" - 13 x 3-1/2", Gr 5

(Replaces bolt 180192) Hex, 1/2"-13 x 3 1/2", G5

2шт.

129-105

NUT,Hex, 1/2" - 13, Gr 5

(Replaces nut 120378) 1/2"-13, G5

2шт.

192-23

LOCK WASHER,1/2"

WASHER, LOCK, (Replaces washer 120384) 1/2"

2шт.

495-81041

WASHER,25/32" x 1 1/2" x .060"

- flat, 25/32 x 1-1/2 x 1/16 inch (Replaces washer 21753R1)

8шт.

1791D

CHAIN (AG),#50, 192 Links x 15.88mm = 3048mm

CHAIN - bulk, 10 foot (3480 mm) roll

1шт.
