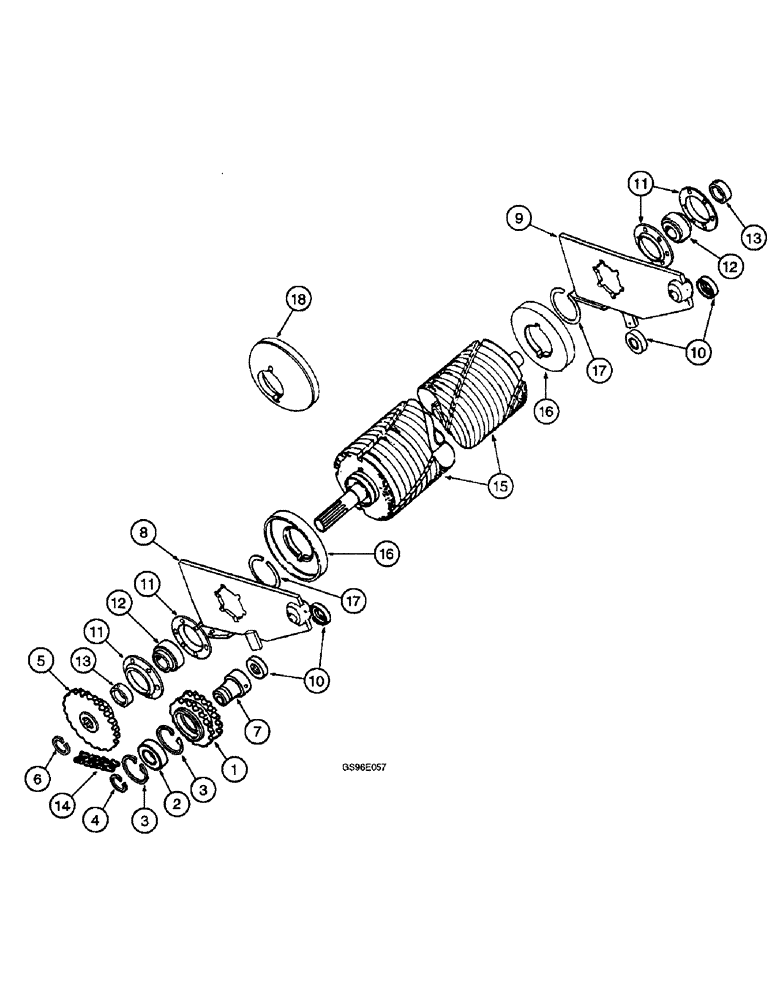

Запчасти Case IH INTERNATIONAL (3-60) - CONDITIONER UPPER ROLL, HEADER MOUNTED, PRIOR TO SERIAL NUMBER 3101 (15) - CROP CONDITIONING

1

828070C1

SPROCKET ASSY.

SPROCKET - dual idler, 20 tooth

1шт.

2

584148R91

BEARING ASSY,35mm ID x 72mm OD x 25mm W

BEARING - ball, idler sprocket

1шт.

3

103-21281

SNAP RING,66.92mm ID x 2.36mm W, Int

Ring, Snap, , Brg (Replaces ring 468337R1) 2.812", Int, #281

2шт.

4

103-16137

SNAP RING,#137. Ext

Ring, Snap, #137, Ext, Sprocket

1шт.

5

828550C1

SPROCKET ASSY.

SPROCKET - upper roll drive, 26 tooth

1шт.

495-81213

WASHER,35.71mm ID x 50.8mm OD x 1.7mm Thk

- flat, 1-13/32 x 2 x 3/64 inch (Replaces washer 608085R1)

1шт.

495-81212

WASHER,35.71mm ID x 50.8mm OD x 1.07mm Thk

- flat, 1-13/32 x 2 x 5/16 inch (Replaces washer 21794R1)

1шт.

6

103-16137

SNAP RING,#137. Ext

Ring, Snap, #137, Ext, Upper roll sprocket

1шт.

7

828069C1

SHAFT

- idler sprocket cam

1шт.

495-81213

WASHER,35.71mm ID x 50.8mm OD x 1.7mm Thk

- flat, 1-13/32 x 2 x 3/64 inch (Replaces washer 608085R1)

1шт.

8

829381C2

ARM

- upper roll pivot, left-hand

1шт.

9

829382C2

ARM

- upper roll pivot, right-hand

1шт.

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease, straight, 1/8 PT x 21/32 inch

2шт.

113-728

BOLT,Hex, 3/4" - 10 x 6-1/2", Gr 5

(Replaces bolt 19866R1) Hex, 3/4"-10 x 6 1/2", G5

1шт.

113-716

BOLT,Hex, 3/4" - 10 x 3", Gr 5

(Replaces bolt 271775) Hex, 3/4"-10 x 3", G5

1шт.

129-108

NUT,3/4"-10, G5

(Replaces nut 220086) 3/4"-10, G5

2шт.

192-27

LOCK WASHER,3/4"

WASHER, LOCK, (Replaces washer 131046) 3/4"

2шт.

495-81042

WASHER,25/32" x 1 1/2" x .120"

- flat, 25/32 x 1-1/2 x 7/64 inch

1шт.

495-81255

WASHER,0.78" ID x 1.5" OD x 0.18" Thk

- flat, 25/32 x 1-1/2 x 11/64 inch (Replaces washer 21211R1)

1шт.

10

829542C1

SEAL

- ball joint

4шт.

11

825620C1

RETAINER

FLANGE - bearing

4шт.

434-620

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1 1/4", Gr 5

BOLT, CARRIAGE, (Replaces bolt 550796R1) Short NK, 3/8"-16 x 1 1/4", G5, Full Thd

12шт.

425-106

NUT,3/8"-16, Cl 5

12шт.

192-21

LOCK WASHER,3/8"

WASHER, LOCK, (Replaces washer 120382) 3/8"

12шт.

12

611583R91

BALL BEARING

BEARING - ball, roll

2шт.

13

517645R11

COLLAR

ASSEMBLY - locking, bearing

2шт.

483-1386

SET SCREW,Hex Soc, 3/8"-16 x 3/8"

SCREW - set, hex socket headless, 3/8 NC x 3/8 inch, cup point (Replaces screw 102592)

2шт.

14

REF

INSTRUCTION

CHAIN ASSEMBLY - upper roll, for service parts see page 3-57

1шт.

15

828009C92

ROLL

ASSEMBLY - upper, rubber (Replaces roll 828009C91)

1шт.

16

598317R2

CAP

- roller end

2шт.

17

101-11350

SNAP RING,#350, Ext

RING, SNAP, , End cap (Replaces ring 598318R1) #350, Ext

2шт.

18

598316R1

DISC

DISK - rubber

117шт.
