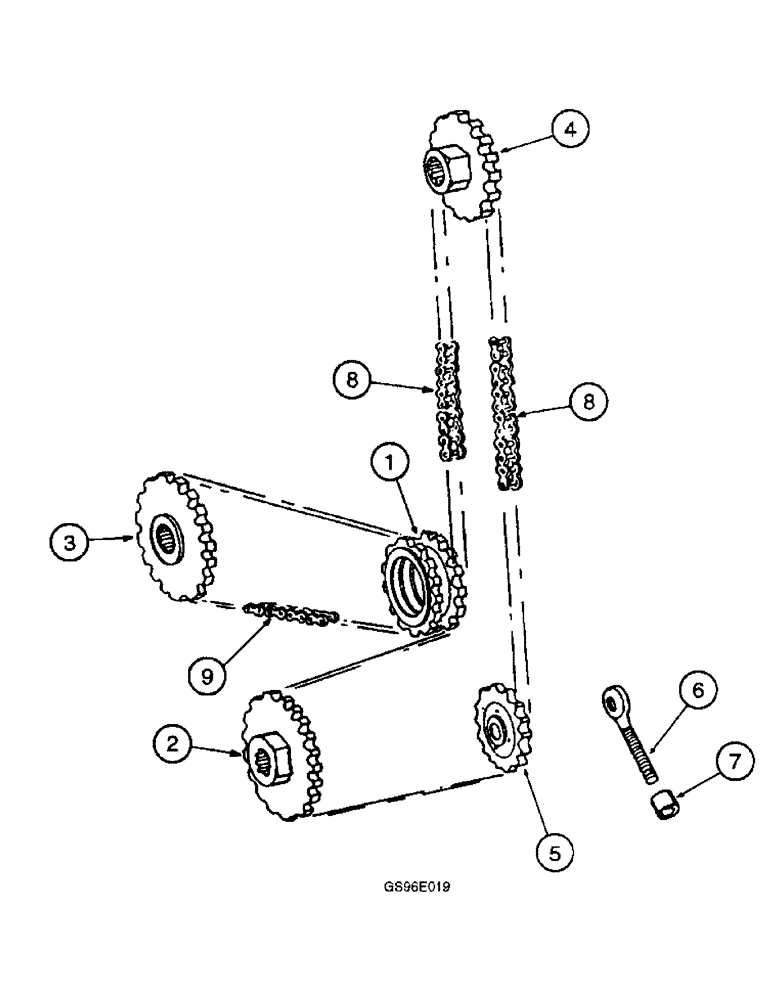

Запчасти Case IH INTERNATIONAL (3-56) - CONDITIONER DRIVE, HEADER MOUNTED, PRIOR TO SERIAL NUMBER 3101 (15) - CROP CONDITIONING

1

828070C1

SPROCKET ASSY.

SPROCKET - dual idler, 20 tooth, for connecting parts see page 3-61

1шт.

2

828550C1

SPROCKET ASSY.

SPROCKET - lower roll drive, 26 tooth, for connecting parts see page 3-59

1шт.

3

828550C1

SPROCKET ASSY.

SPROCKET - upper roll drive, 26 tooth, for connecting parts see page 3-61

1шт.

4

828807C1

SPROCKET ASSY.

SPROCKET - hay conditioner drive, 18 tooth, for connecting parts see page 3-11 or 3-13

1шт.

5

825512C1

SPROCKET ASSY.

SPROCKET - main drive chain tightener, 15 tooth

1шт.

113-620

BOLT,Hex, 5/8" - 11 x 2-1/4", Gr 5

- hex, 5/8 NC x 2-1/4 inch (Replaces bolt 271724)

1шт.

192-25

LOCK WASHER,5/8"

WASHER, LOCK, (Replaces washer 121574) 5/8"

1шт.

495-81027

WASHER,21/32" x 1 1/2" x .120"

- flat, 21/32 x 1-1/2 x 7/64 inch

1шт.

6

828221C1

BOLT,Eye, 1/2" - 13 x 3.25"

- tightener pulley adjusting

1шт.

129-105

NUT,Hex, 1/2" - 13, Gr 5

2шт.

7

M42296

SPACER,1/2" X-Strng Pipe x 1/2"

- pipe, 1/2 ID x 1/2 inch, adjusting bolt

1шт.

8

REF

INSTRUCTION

CHAIN ASSEMBLY - hay conditioner drive, use 127 links of 3/4 inch standard pitch roller chain from a 10 foot roll 611362R91

1шт.

241-1316

LINK,19.05mm Pitch

LINK - connecting, single pitch, No. 60, 3/4 inch pitch

1шт.

9

REF

INSTRUCTION

CHAIN ASSEMBLY - upper roll drive, use 39 links of 3/4 standard pitch roller chain from a 10 foot roll 611362R91

1шт.

241-1716

LINK,19.05mm Pitch

LINK - offset, single pitch, No. 60, 3/4 inch pitch

1шт.

241-1316

LINK,19.05mm Pitch

LINK - connecting, single pitch, No. 60, 3/4 inch pitch

1шт.

611362R91

CHAIN (AG)

CHAIN - bulk, 10 foot (3480 mm) roll

1шт.
