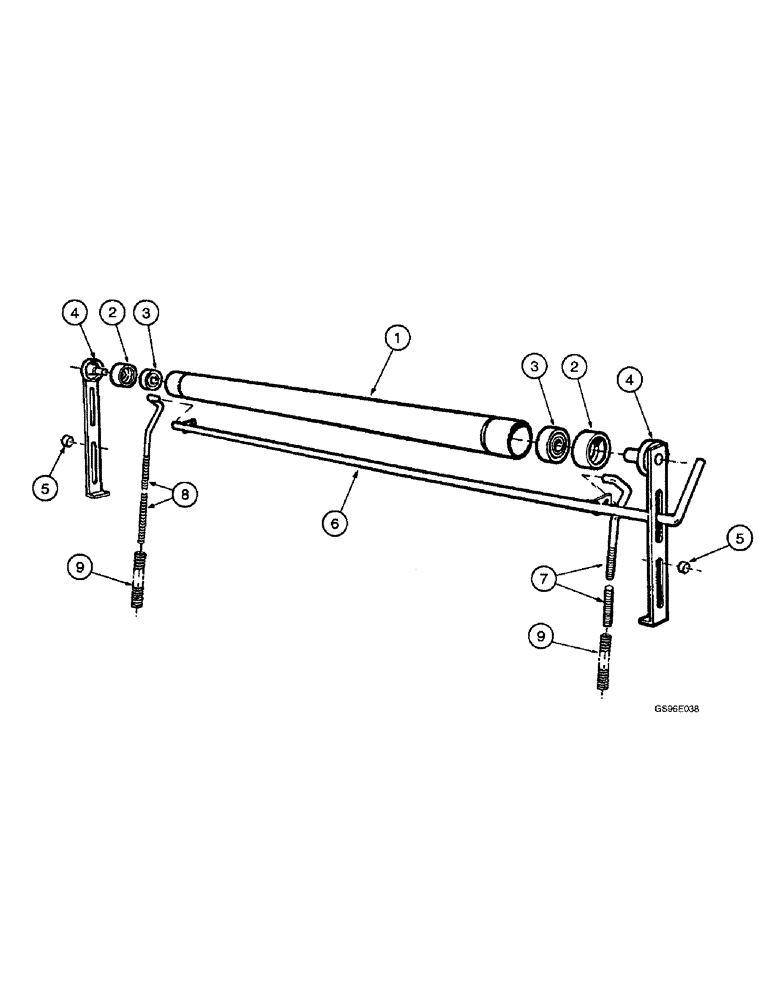

Запчасти Case IH INTERNATIONAL (3-20) - CONVEYOR IDLER ROLLERS AND TIGHTENERS (15) - CROP CONDITIONING

1

592147R1

TUBE,2.25" OD, 40.94" Length

- header idler roller

2шт.

2

592142R1

RETAINER

- idler roller, rubber

4шт.

3

537290R91

BALL BEARING,20mm ID x 47mm OD x 14mm W

- Idler roller (Replaces bearing 608130R91)

4шт.

4

824565C2

SUPPORT

- idler roller adjusting

4шт.

113-207

BOLT,Hex, 3/8" - 16 x 1", Gr 5

(Replaces bolt 180122) Hex, 3/8"-16 x 1", G5, Full Thd

4шт.

425-106

NUT,3/8"-16, Cl 5

4шт.

192-21

LOCK WASHER,3/8"

WASHER, LOCK, (Replaces washer 120382) 3/8"

4шт.

495-81136

WASHER,10.31mm ID x 25.4mm OD x 3.81mm Thk

- flat, 13/32 x 1 x 1/8 inch (Replaces washer 20803R1)

4шт.

5

824574C1

BUSHING

- support mounting bolt

4шт.

6

824560C1

ROD

- idler roller adjusting

2шт.

495-81026

WASHER,21/32" x 1 1/2" x .060"

- flat, 21/32 x 1-1/2 x 3/64 inch

4шт.

132-91

COTTER PIN,3/16" x 1"

Pin, Split (Cotter), (Replaces pin 103407) 3/16" x 1"

4шт.

7

824558C1

ROD

- roller tightener, left-hand front and right-hand rear

2шт.

8

824596C1

ROD

- roller tightener, right-hand front and left-hand rear

2шт.

495-81158

WASHER,0.47" ID x 1" OD x 0.06" Thk

- flat, 15/32 x 1 x 3/64 inch (Replaces washer 607891R1)

8шт.

129-104

NUT,7/16"-14, G5

(Replaces nut 271501) 7/16"-14, G5

8шт.

132-91

COTTER PIN,3/16" x 1"

Pin, Split (Cotter), (Replaces pin 103407) 3/16" x 1"

4шт.

9

17460K

SPRING

- tightener

4шт.
