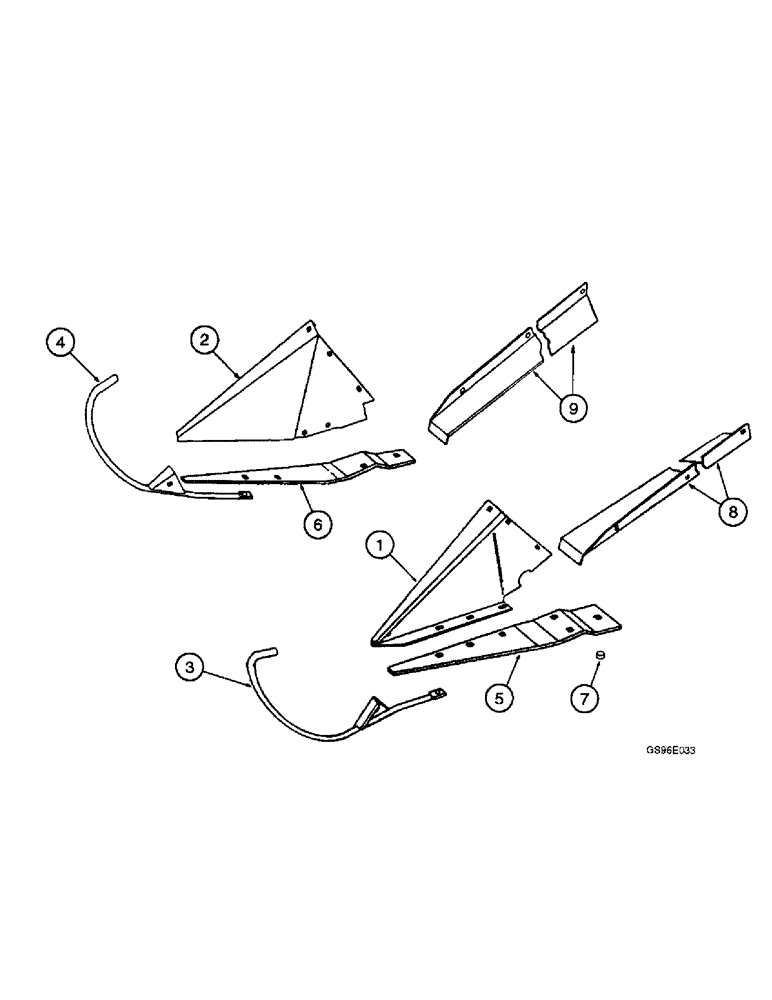

Запчасти Case IH INTERNATIONAL (3-08) - DIVIDERS AND SOLE PLATES (15) - CROP CONDITIONING

1

829339C1

DIVIDER

- left-hand

1шт.

2

829345C1

DIVIDER

- right-hand

1шт.

434-612

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 3/4", Gr 5

BOLT - carriage, 3/8 NC x 3/4 inch (Replaces bolt 598809R1)

6шт.

425-106

NUT,3/8"-16, Cl 5

6шт.

192-21

LOCK WASHER,3/8"

WASHER, LOCK, (Replaces washer 120382) 3/8"

6шт.

3

829343C1

ROD

- divider, left-hand

1шт.

4

829344C1

ROD

- divider, right-hand

1шт.

434-612

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 3/4", Gr 5

BOLT - carriage, 3/8 NC x 3/4 inch (Replaces bolt 598809R1)

2шт.

425-106

NUT,3/8"-16, Cl 5

2шт.

192-21

LOCK WASHER,3/8"

WASHER, LOCK, (Replaces washer 120382) 3/8"

2шт.

5

829342C1

SOLE

- divider, left-hand

1шт.

6

829346C1

SOLE

- divider, right-hand

1шт.

434-816

CARRIAGE BOLT,Sht Sq Nk, 1/2" - 13 x 1", Gr 5

BOLT - carriage, 1/2 NC x 1 inch, right-hand (Replaces bolt 598813R1)

1шт.

434-824

CARRIAGE BOLT,Sht Sq Nk, 1/2" - 13 x 1 1/2", Gr 5

BOLT - carriage, 1/2 NC x 1-1/2 inch, left-hand

2шт.

413-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

- hex, 3/8 NC x 1-1/4 inch, Right-hand

1шт.

113-209

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

LH (Replaces bolt 180126) Hex, 3/8"-16 x 1 1/2", G5

1шт.

434-616

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1", Gr 5

BOLT - carriage, 3/8 NC x 1 inch, left-hand (Replaces bolt 495967R1)

3шт.

425-106

NUT,3/8"-16, Cl 5

5шт.

129-105

NUT,Hex, 1/2" - 13, Gr 5

(Replaces nut 120378) 1/2"-13, G5

3шт.

192-21

LOCK WASHER,3/8"

WASHER, LOCK, (Replaces washer 120382) 3/8"

5шт.

192-23

LOCK WASHER,1/2"

WASHER, LOCK, (Replaces washer 120384) 1/2"

3шт.

495-81136

WASHER,10.31mm ID x 25.4mm OD x 3.81mm Thk

- flat, 13/32 x 1 x 1/8 inch (Replaces washer 20803R1)

5шт.

7

M42296

SPACER,1/2" X-Strng Pipe x 1/2"

- pipe, 1/2 ID x 7/16 inch, left-hand sole (Replaces spacer 622535R1)

1шт.

8

829573C1

DEFLECTOR

- inside divider, left-hand

1шт.

9

829574C1

DEFLECTOR

- inside divider, right-hand

1шт.

434-612

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 3/4", Gr 5

BOLT - carriage, 3/8 NC x 3/4 inch (Replaces bolt 598809R1)

6шт.

425-106

NUT,3/8"-16, Cl 5

6шт.

192-21

LOCK WASHER,3/8"

WASHER, LOCK, (Replaces washer 120382) 3/8"

6шт.
