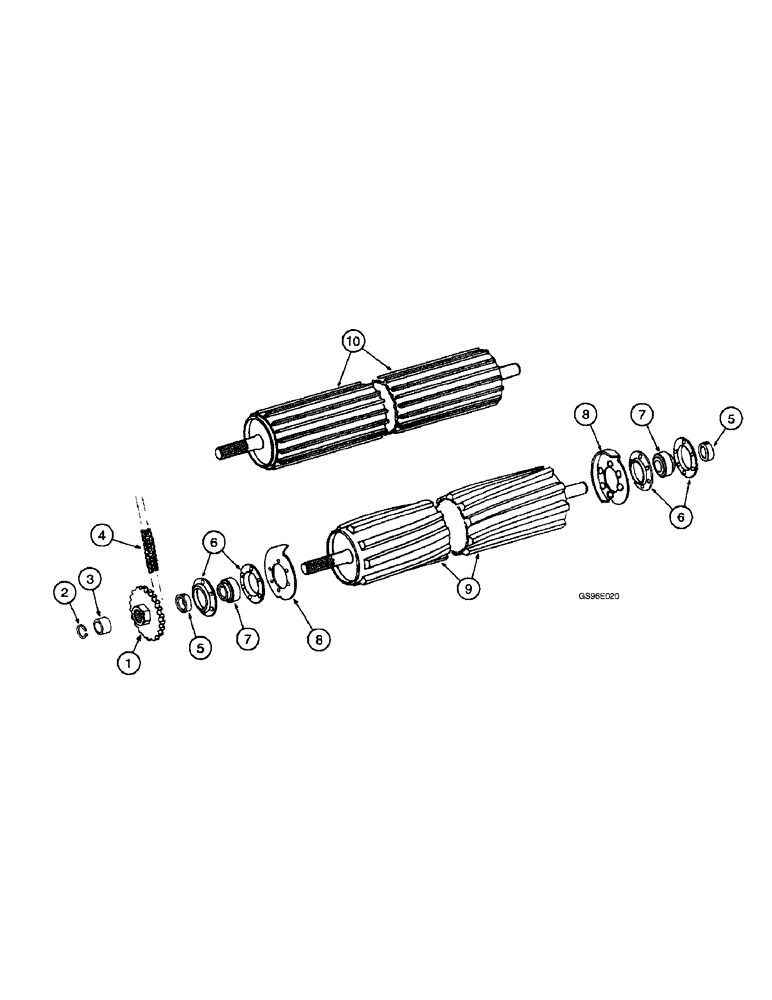

Запчасти Case IH INTERNATIONAL (2-40) - CONDITIONER LOWER ROLL, HEADER MOUNTED (15) - CROP CONDITIONING

1

828550C1

SPROCKET ASSY.

SPROCKET - lower roll drive, 26 tooth

1шт.

495-81213

WASHER,35.71mm ID x 50.8mm OD x 1.7mm Thk

- flat, 1-13/32 x 2 x 3/64 inch (Replaces washer 608085R1)

1шт.

829560C1

WASHER

- flat, 1-13/32 x 2 x 5/16 inch

1шт.

2

103-16137

SNAP RING,#137. Ext

Ring, Snap, #137, Ext, Lower roll sprocket

1шт.

3

M93915

SPACER,1 1/4" Pipe x 3/4"

- pipe, 1-1/4 x 3/4 inch

1шт.

4

REF

INSTRUCTION

CHAIN ASSEMBLY - lower roll, see page 2-39

1шт.

5

517645R11

COLLAR

ASSEMBLY - locking

2шт.

483-1386

SET SCREW,Hex Soc, 3/8"-16 x 3/8"

SCREW - set, hex socket headless, 3/8 NC x 3/8 inch, cup point (Replaces screw 102592)

2шт.

6

825620C1

RETAINER

- bearing

4шт.

113-207

BOLT,Hex, 3/8" - 16 x 1", Gr 5

(Replaces bolt 180122) Hex, 3/8"-16 x 1", G5, Full Thd

12шт.

192-21

LOCK WASHER,3/8"

WASHER, LOCK, (Replaces washer 120382) 3/8"

12шт.

7

611583R91

BALL BEARING

BEARING - ball, roll

2шт.

8

828644C1

SHROUD

- lower roll

2шт.

9

828010C3

ROLL

- lower steel

1шт.

10

828697C1

ROLL

- crimper (See Note)

1шт.

NOTE: Use one on conditioner lower roll and one on upper roll together.

1шт.
