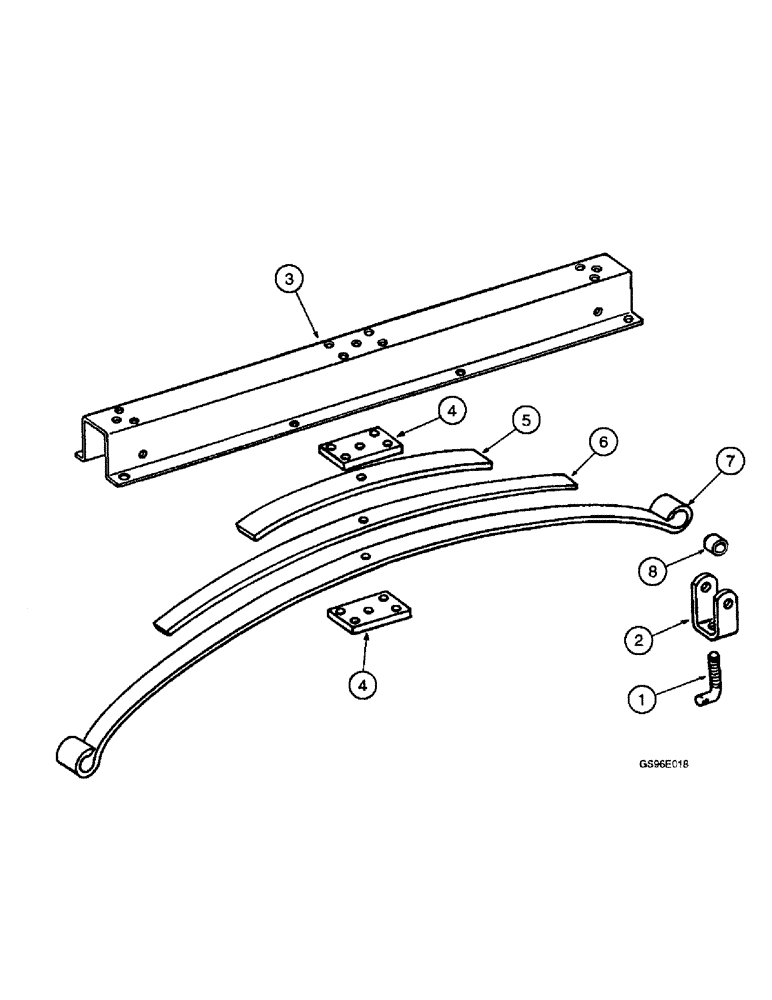

Запчасти Case IH INTERNATIONAL (2-36) - CONDITIONER ROLL TENSION SPRING, HEADER MOUNTED (15) - CROP CONDITIONING

1

829020C1

BOLT,Adj, 3/4" - 10 x 3.2"

- leaf spring

2шт.

129-108

NUT,3/4"-10, G5

(Replaces nut 220086) 3/4"-10, G5

4шт.

1978738C1

HAIR PIN COTTER

quick-attachable (Replaces pin 599744R1)

2шт.

2

829019C1

CLEVIS

- leaf spring

2шт.

3

1281437C91

SUPPORT

- leaf spring (Replaces support 829015C1)

1шт.

113-207

BOLT,Hex, 3/8" - 16 x 1", Gr 5

(Replaces bolt 180122) Hex, 3/8"-16 x 1", G5, Full Thd

4шт.

425-106

NUT,3/8"-16, Cl 5

4шт.

192-21

LOCK WASHER,3/8"

WASHER, LOCK, (Replaces washer 120382) 3/8"

4шт.

4

829017C1

BAR

- leaf spring clamping

2шт.

113-241

BOLT,Hex, 3/8" - 16 x 3", Gr 5

(Replaces bolt 180138) Hex, 3/8"-16 x 3", G5

5шт.

425-106

NUT,3/8"-16, Cl 5

5шт.

192-21

LOCK WASHER,3/8"

WASHER, LOCK, (Replaces washer 120382) 3/8"

5шт.

5

829014C1

SPRING

- third leaf

1шт.

6

829013C1

SPRING, LEAF

SPRING - second leaf

1шт.

7

829012C1

SPRING, LEAF

SPRING - main leaf

1шт.

8

829533C1

BUSHING

- main leaf spring

2шт.

113-629

BOLT,Hex, 5/8" - 11 x 3-3/4", Gr 5

- hex, 5/8 NC x 3-3/4 inch (Replaces bolt 271730)

2шт.

129-107

NUT,5/8"-11, G5

(Replaces nut 124589) 5/8"-11, G5

2шт.

192-25

LOCK WASHER,5/8"

WASHER, LOCK, (Replaces washer 121574) 5/8"

2шт.
