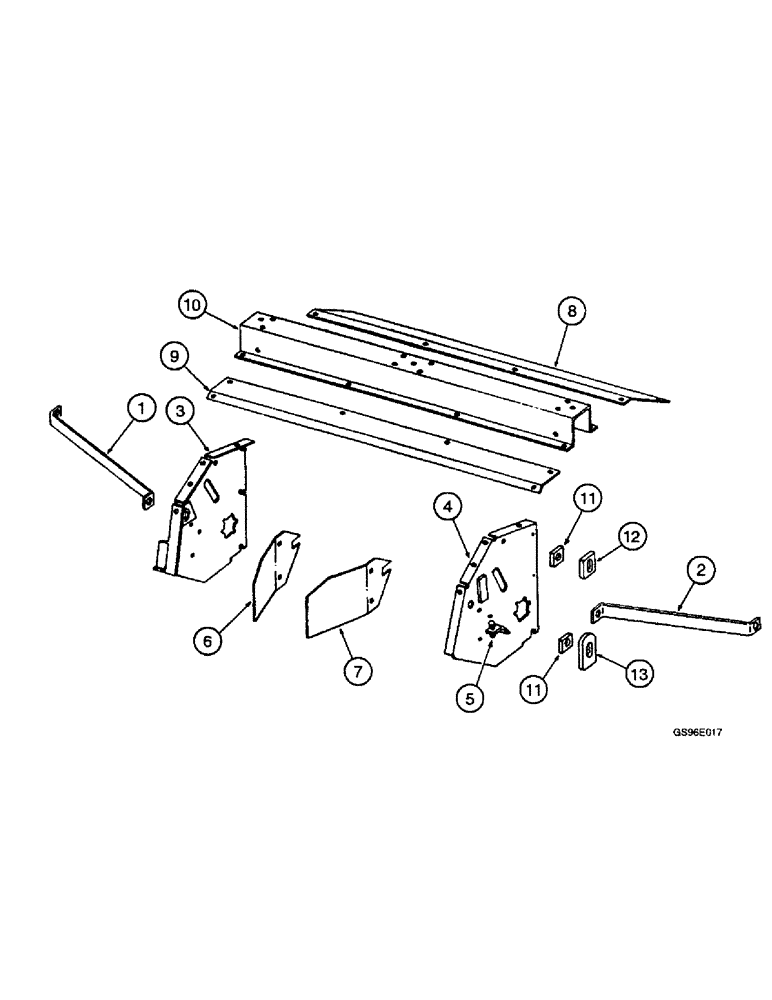

Запчасти Case IH INTERNATIONAL (2-34) - CONDITIONER FRAME AND SHIELDS, HEADER MOUNTED (15) - CROP CONDITIONING

1

828530C2

SUPPORT

- left-hand side

1шт.

2

828531C1

SUPPORT

- right-hand side

1шт.

113-417

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5, Full Thd

(Replaces bolt 180175) Hex, 1/2"-13 x 1 1/4", G5, Full Thd

2шт.

129-105

NUT,Hex, 1/2" - 13, Gr 5

(Replaces nut 120378) 1/2"-13, G5

2шт.

192-23

LOCK WASHER,1/2"

WASHER, LOCK, (Replaces washer 120384) 1/2"

2шт.

3

828512C3

SIDE ASSY.

SIDE - frame, left-hand

1шт.

4

828513C2

SIDE ASSY.

SIDE - frame, right-hand

1шт.

409-7820

BOLT,Hex Flg, 1/2" - 13 x 1 1/4", Spcl

2шт.

409-7816

BOLT,Hex Flg, 1/2" - 13 x 1", Spcl

- hex serrated flange, 1/2 NC x 1 inch

2шт.

5

650006R1

BOLT,Hex, 5/8" - 11 x 2 1/2", Full Thd

- control arm stop adjusting, hex, 5/8 NC x 1/2 inch

2шт.

129-107

NUT,5/8"-11, G5

(Replaces nut 124589) 5/8"-11, G5

2шт.

6

828523C1

SHIELD

- hay conditioner, inner left-hand

1шт.

7

828946C1

SHIELD

- hay conditioner, inner right-hand

1шт.

434-612

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 3/4", Gr 5

BOLT - carriage, 3/8 NC x 3/4 inch (Replaces bolt 598809R1)

4шт.

425-106

NUT,3/8"-16, Cl 5

4шт.

192-21

LOCK WASHER,3/8"

WASHER, LOCK, (Replaces washer 120382) 3/8"

4шт.

8

829969C1

SHIELD

- cover front

1шт.

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

(Replaces bolt 180120) Hex, 3/8"-16 x 3/4", G5, Full Thd

4шт.

425-106

NUT,3/8"-16, Cl 5

4шт.

192-21

LOCK WASHER,3/8"

WASHER, LOCK, (Replaces washer 120382) 3/8"

4шт.

9

829970C2

SHIELD

- cover rear

1шт.

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

(Replaces bolt 180120) Hex, 3/8"-16 x 3/4", G5, Full Thd

6шт.

231-5146

FLANGE NUT,3/8"-16

6шт.

10

1281437C91

SUPPORT

- leaf spring (Replaces support 829015C1)

1шт.

11

829984C1

BAR

- stop spacer

4шт.

12

830228C1

BAR

- roll stop adjusting

2шт.

433-1032

CARRIAGE BOLT,Sq Nk, 5/8" - 11 x 2", Gr 5

BOLT - carriage, 5/8 NC x 2 inch (Replaces bolt 441452R1)

2шт.

129-107

NUT,5/8"-11, G5

(Replaces nut 124589) 5/8"-11, G5

2шт.

192-25

LOCK WASHER,5/8"

WASHER, LOCK, (Replaces washer 121574) 5/8"

2шт.

495-81027

WASHER,21/32" x 1 1/2" x .120"

- flat, 21/32 x 1-1/2 x 7/64 inch

4шт.

13

828064C1

BAR

- stop, roll adjusting

2шт.

433-1032

CARRIAGE BOLT,Sq Nk, 5/8" - 11 x 2", Gr 5

BOLT - carriage, 5/8 NC x 2 inch (Replaces bolt 441452R1)

2шт.

129-107

NUT,5/8"-11, G5

(Replaces nut 124589) 5/8"-11, G5

2шт.

192-25

LOCK WASHER,5/8"

WASHER, LOCK, (Replaces washer 121574) 5/8"

2шт.

495-81027

WASHER,21/32" x 1 1/2" x .120"

- flat, 21/32 x 1-1/2 x 7/64 inch

2шт.

495-81026

WASHER,21/32" x 1 1/2" x .060"

- flat, 21/32 x 1-1/2 x 3/64 inch

4шт.
