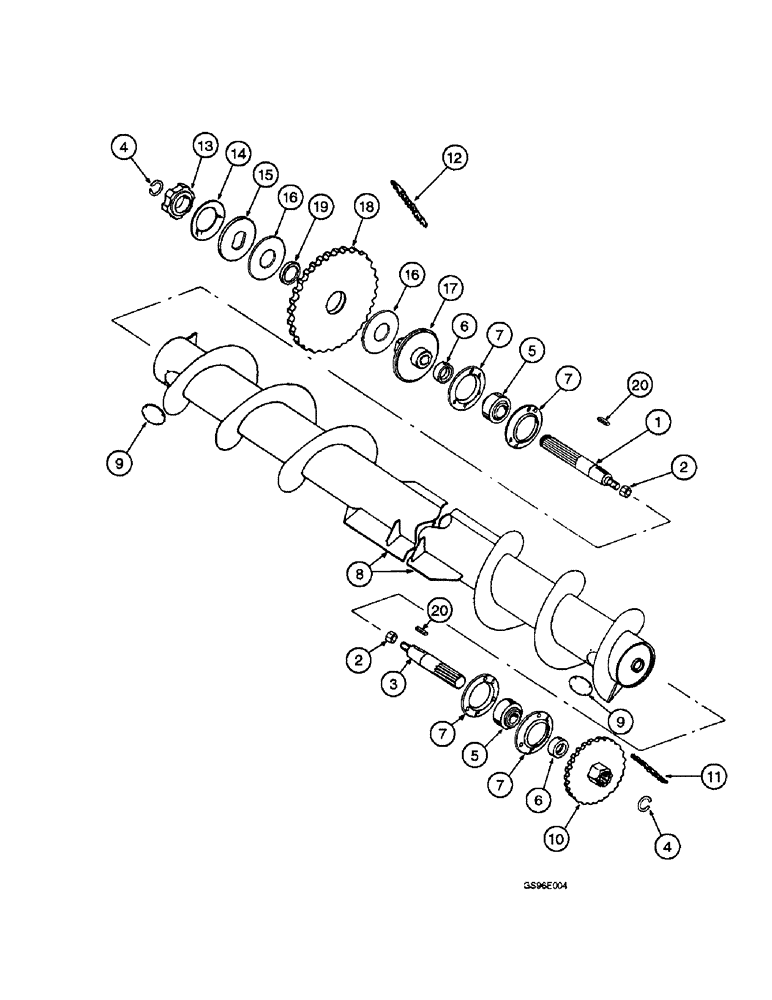

Запчасти Case IH INTERNATIONAL (2-08) - AUGER AND SHAFTS (15) - CROP CONDITIONING

1

828176C92

SHAFT ASSY.

SHAFT - auger, left-hand (Replaces shaft 828176C91)

1шт.

495-81030

WASHER,21/32" x 2" x .179"

- flat, 21/32 x 2 x 11/64 inch (Replaces washer 23276R1)

2шт.

495-81215

WASHER,35.71mm ID x 57.15mm OD x 3.4mm Thk

- flat, 1-13/32 x 2-1/4 x 7/64 inch

2шт.

2

231-46110

LOCK NUT,5/8"-18, GB

NUT - hex, self-locking, 5/8 inch NF (Replaces nut 9413970)

2шт.

3

828461C92

SHAFT

- auger, right-hand (Replaces shaft 828461C91)

1шт.

495-81030

WASHER,21/32" x 2" x .179"

- flat, 21/32 x 2 x 11/64 inch (Replaces washer 23276R1)

2шт.

495-81213

WASHER,35.71mm ID x 50.8mm OD x 1.7mm Thk

- flat, 1-13/32 x 2 x 3/64 inch (Replaces washer 608085R1)

4шт.

4

103-16137

SNAP RING,#137. Ext

Ring, Snap, #137, Ext, Auger shaft

2шт.

5

571588R92

BALL BEARING,1.3755" ID x 72 mm OD x 1"

- auger shaft

2шт.

6

517645R11

COLLAR

ASSEMBLY - locking, bearing

2шт.

483-1386

SET SCREW,Hex Soc, 3/8"-16 x 3/8"

SCREW - set, hex socket headless, 3/8 NC x 3/8 inch, cup point (Replaces screw 102592)

2шт.

7

617863R1

FLANGED BEARING

- bearing

4шт.

425-106

NUT,3/8"-16, Cl 5

6шт.

192-21

LOCK WASHER,3/8"

WASHER, LOCK, (Replaces washer 120382) 3/8"

6шт.

8

828356C2

AUGER

- 12 foot

1шт.

8

828166C2

AUGER

- 14 foot

1шт.

9

828706C1

COVER

- auger tube hand hole

2шт.

470-1258

SCREW,Slotted Pan Hd, 1/4"-20 x 1/2"

BOLT - machine, pan head slotted, 1/4 NC x 1/2 inch (Replaces bolt 20710R1)

8шт.

564791R1

SPRING NUT

- Tinnerman, 1/4 inch NC, J-type speed

8шт.

10

828667C1

SPROCKET ASSY.

SPROCKET - reel driveshaft drive, 20 tooth

1шт.

11

REF

INSTRUCTION

CHAIN - reel drive, for service parts see page 2-29

1шт.

12

REF

INSTRUCTION

CHAIN - auger drive, for service parts see page 2-29

1шт.

13

592957R1

COLLAR

- clutch locking

1шт.

485-13116

SET SCREW,Sq Hd, 5/16"-18 x 1", Cup pt

SCREW - set square head , 5/16 NC x 1 inch, cup point (Replaces screw 107327)

1шт.

14

820669C1

WASHER

- thrust, Belleville spring

1шт.

15

592955R1

PLATE

- clutch

1шт.

16

95909C1

FACING

- clutch (Replaces facing 592952R1)

2шт.

17

828831C1

HUB

- auger clutch

1шт.

18

828835C91

SPROCKET ASSY.

SPROCKET - auger driver, 66 tooth

1шт.

19

828689C1

BUSHING

- sprocket

1шт.

20

126-133

WOODRUFF KEY,#D, 5/16" x 1 1/4", HT

(Replaces key 117991) #D, 5/16" x 1 1/4", HT

2шт.
