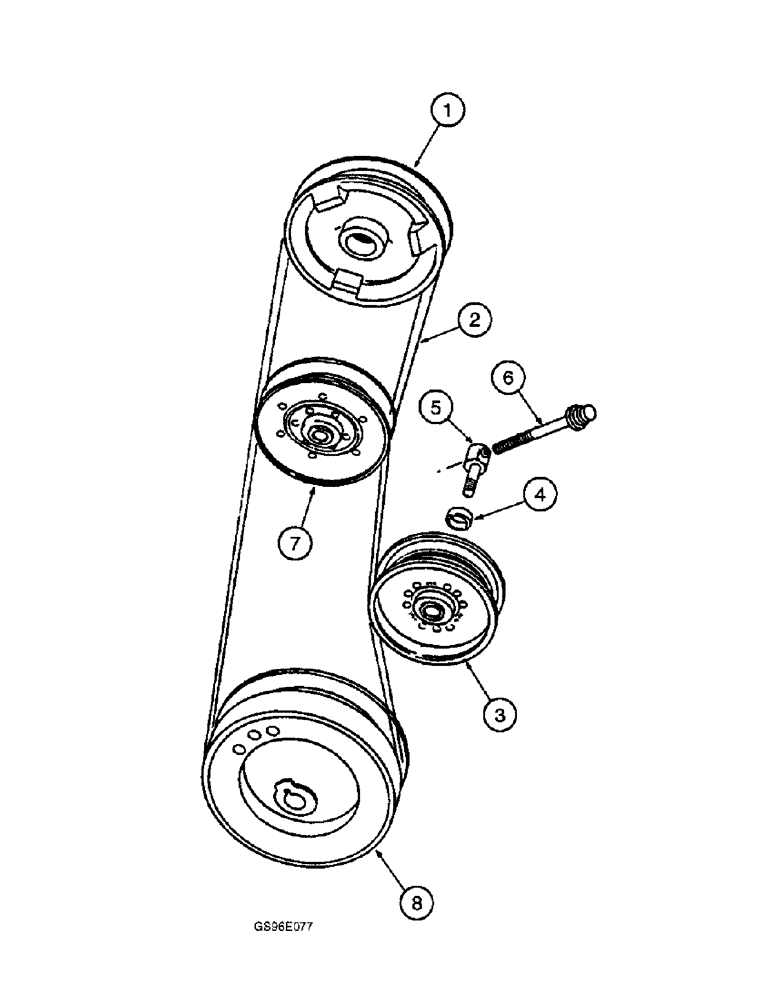

Запчасти Case IH INTERNATIONAL (4-20) - KNIFE DRIVE (14) - CROP CUTTING

1

828965C1

PULLEY

- knife drive, for connecting parts see page 4-5 and 4-5B

1шт.

2

832017C1

BELT,134.50" L

Knife Drive 134.50" L

1шт.

3

607443R91

PULLEY

- front tightener

1шт.

4

576248R1

SPACER - pulley mounting

1шт.

5

595758R4

BOLT,Hex, 1/2" - 13 x 2.75"

- tightener pulley mounting

1шт.

129-105

NUT,Hex, 1/2" - 13, Gr 5

(Replaces nut 120384) 1/2"-13, G5

1шт.

192-23

LOCK WASHER,1/2"

WASHER, LOCK, (Replaces washer 120384) 1/2"

1шт.

495-81287

WASHER,13.49mm ID x 31.75mm OD x 3.4mm Thk

- flat, 17/32 x 1-1/4 x 7/64 inch

4шт.

6

595358R91

BOLT

- pulley tightener

1шт.

433-1048

CARRIAGE BOLT,Sq Nk, 5/8" - 11 x 3", Gr 5

BOLT - carriage, 5/8 NC x 3 inch (Replaces bolt 608337R1)

2шт.

129-107

NUT,5/8"-11, G5

(Replaces nut 124589) 5/8"-11, G5

1шт.

192-25

LOCK WASHER,5/8"

WASHER, LOCK, (Replaces washer 121574) 5/8"

1шт.

495-81027

WASHER,21/32" x 1 1/2" x .120"

- flat, 21/32 x 1-1/2 x 7/64 inch

5шт.

498-81010

SQ HOLE WASHER,16.66mm ID x 38.1mm OD x 2.67mm Thk

- square hole, 21/32 x 1-1/2 x 3/32 inch (Replaces washer 21783R1)

1шт.

8

830454C1

PULLEY

- knife driven, for connecting parts see page 4-17

1шт.

Q53

KEY,1/4" Sq x 1", Par

1шт.
