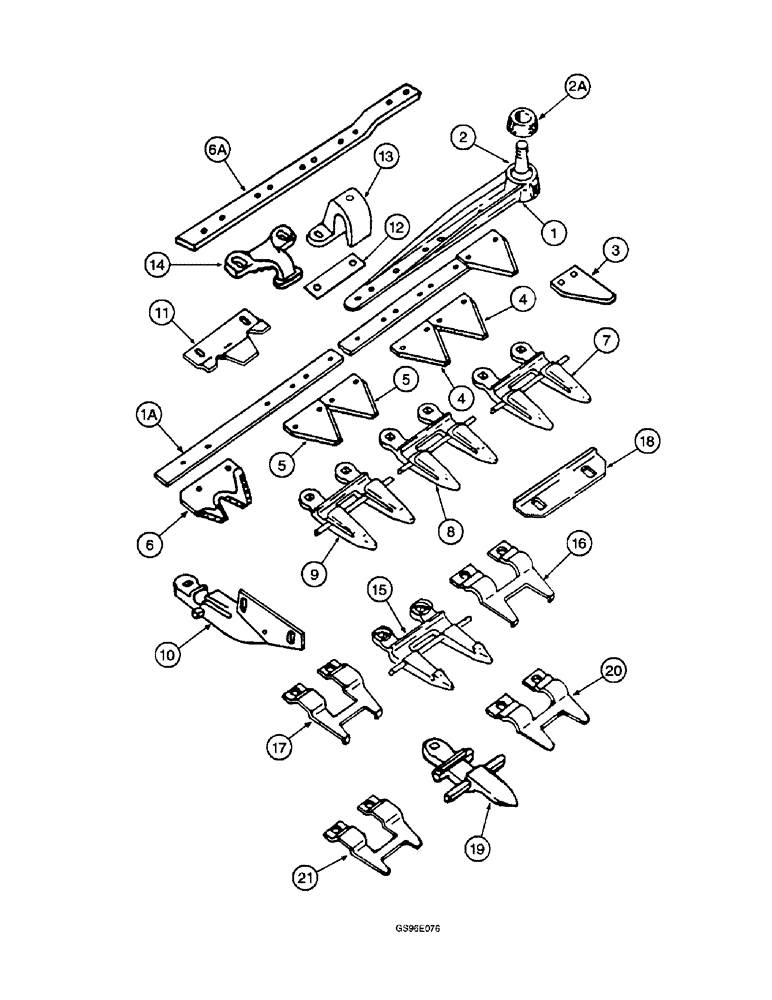

Запчасти Case IH INTERNATIONAL (4-18) - KNIFE AND GUARDS, DUAL AUGER (14) - CROP CUTTING

1

832051C93

KNIFE

ASSEMBLY - 12 foot, chrome plated underserrated sections, for first conversion only, order knife assembly 827724C92, guide 595648R1, two 595213R1 shims and two 420-3728 bolts

1шт.

1

827724C92

KNIFE ASSY

KNIFE ASSEMBLY - 12 foot, chrome plated underserrated sections (Replaces knife assembly 827724C91)

1шт.

1

830716C93

KNIFE

ASSEMBLY - 12 foot, chrome plated overserrated sections, for first conversion only, order knife assembly 827700C92, guide 595648R1, two 595213R1 shims and two 420-3728 bolts

1шт.

1

827700C92

KNIFE ASSY

KNIFE ASSEMBLY - 12 foot, chrome plated overserrated sections (Replaces knife assembly 827700C91)

1шт.

1

832052C93

KNIFE

ASSEMBLY - 14 foot, chrome plated underserrated sections, for first conversion only, order knife assembly 827725C92, guide 595648R1, two 595213R1 shims and two 420-3728 bolts

1шт.

1

827725C92

KNIFE ASSY

KNIFE ASSEMBLY - 14 foot, chrome plated underserrated sections (Replaces knife assembly 827725C91)

1шт.

1

830717C93

KNIFE

ASSEMBLY - 14 foot, chrome plated overserrated sections, for first conversion only, order knife assembly 827701C92, guide 595648R1, two 595213R1 shims and two 420-3728 bolts

1шт.

1

827701C92

KNIFE ASSY

KNIFE ASSEMBLY - 14 foot, chrome plated overserrated sections (Replaces knife assembly 827701C91)

1шт.

1

823579C92

KNIFE

ASSEMBLY - 16 foot, chrome plated underserrated sections, for first conversion only, order knife assembly 827726C92, guide 595648R1, two 595213R1 shims and two 420-3728 bolts

1шт.

1

827726C92

KNIFE

ASSEMBLY - 16 foot, chrome plated underserrated sections, no longer available, order knife assembly 827702C92 below

1шт.

1

823578C92

KNIFE

ASSEMBLY - 16 foot, chrome plated overserrated sections, for first conversion only, order knife assembly 827702C92, guide 595648R1, two 595213R1 shims and two 420-3728 bolts

1шт.

1

827702C92

KNIFE ASSY

KNIFE ASSEMBLY - 16 foot, chrome plated overserrated sections (Replaces knife assembly 827702C91)

1шт.

1a

NSS

NOT SOLD SEPARAT

BAR - knife back, order knife assembly

1шт.

824594C91

END ASSY.

END ASSEMBLY - knife head with step (Replaces end assembly 824812C94 without step)

1шт.

2

NSS

NOT SOLD SEPARAT

HEAD - knife, order end assembly 824594C91

1шт.

2a

A31186

BOOT

SEAL - knife head end (Replaces seals 194690R1 and 180800C1)

1шт.

NLS

NO LONGER SERVICED

- hex, 5/8 inch NF (Replaces nut 102903H1)

1шт.

219-37

LUBE NIPPLE,45 Degree Elbow, 1/4" - 28 NPTF

FITTING - grease, 45 degree, 1/4-28 x 13/16 inch (Replaces fitting 117175)

1шт.

132-335

COTTER PIN,1/8" x 1 1/4"

1/8" x 1-1/4" (Replaces pin 103386)

1шт.

495-81026

WASHER,21/32" x 1 1/2" x .060"

- flat, 21/32 x 1-1/2 x 3/64 inch (Replaces washer 21782R1)

1шт.

3

599733R1

CUTTER BAR

SECTION - knife half, left-hand end

1шт.

2195

RIVET

- small oval head, 5-1/2 x 1-1/8 inch, one pound package

2шт.

4

823711C3

KNIFE SECTION

SECTION - chrome plated, underserrated, left-hand, used with knife assemblies 832051C93, 827724C91, 832052C93, 827725C91, 823579C92 and 827726C91 (Replaces section 823711C2)

4шт.

4

823713C2

KNIFE SECTION

SECTION - chrome plated, overserrated, left-hand, used with knife assemblies 830716C93, 827700C92, 830717C93, 827701C92, 823578C92 and 827702C92

4шт.

104086

RIVET,But Hd, 1/4" x 1 1/8"

1шт.

RIVET - button head, 1/4 x 1-1/8 inch, one pound package, three used with knife assemblies 827724C92, 827700C92, 827725C92, 827701C92, 827726C92 and 827702C92; seven used with knife assemblies 832051C93, 830716C93, 832052C93, 830717C93, 823579C92 and 823578C92 (Replaces rivet 990727R91)

1шт.

990325R91

RIVET

- button head, 1/4 x 1 inch, one pound package

1шт.

104087

RIVET,But Hd, 1/4" x 1 1/4"

- button head, 1/4 x 1-1/4 inch, used with knife assemblies 827724C92, 827700C92, 827725C92, 827701C92, 827726C92 and 827702C92

4шт.

5

457607R3

KNIFE SECTION

1шт.

SECTION - chrome plated, underserrated, forty-three used with knife assemblies 832051C93 and 827724C92; fifty-one used with knife assemblies 832052C93 and 827725C92; fifty-nine used with knife assemblies 823579C92 and 827726C92 (Replaces section 457607R2)

1шт.

5

596321R4

KNIFE SECTION

1шт.

SECTION - chrome plated, overserrated, forty-three used with knife assemblies 830716C93 and 827700C92; fifty-one used with knife assemblies 830717C93 and 827701C92; fifty-nine used with knife assemblies 823578C92 and 827702C92 (Replaces section 596321R3)

1шт.

990719R91

RIVET

RIVET - oval head, No. 6 x 7/8 inch, one pound package

7шт.

991014R91

KIT

1шт.

RIVET - oval head, 1/2 x 9/16 inch, one pound package, 71 used with knife assemblies 827724C92 and 827700C92; 81 used with assemblies 832051C93 and 830716C93; 87 used with assemblies 827725C91 and 827701C91; 97 used with assemblies 832052C93 and 830717C93; 103 used with assemblies 827726C92 and 827702C92; 113 used with assemblies 823579C92 and 823578C92

1шт.

148-361

RIVET - oval head, No. 6 x 15/16 inch, used with knife assemblies 827724C92, 827700C92, 827725C92, 827701C92, 827726C92 and 827702C92 (Replaces rivet 14765R1)

17шт.

6

148200C1

KNIFE SECTION

SECTION - chrome plated, overserrated, double right-hand end (Replaces triple right-hand end)

1шт.

6a

824595C1

REINFORCEMENT

- knife back, used with knife assemblies 832051C93, 830716C93, 832052C93, 830717C93, 823579C92 and 823578C92

1шт.

6a

827733C2

REINFORCEMENT

- knife back, used with knife assemblies 827724C92, 827700C92, 827725C92, 827701C92, 827726C92 and 827702C92 (Replaces reinforcement 827733C1)

1шт.

991014R91

KIT

RIVET - oval head, 1/2 x 9/16 inch, one pound package

2шт.

7

831633C1

GUARD

- knife, first double left-hand end

1шт.

168930C1

CARRIAGE BOLT,Sq Nk, 7/16" - 14 x 1 1/2", Gr 5

BOLT - carriage, 7/16 NC x 1-1/2 inch (Replaces bolt 18696R1)

1шт.

M805X

BOLT AND NUT

BOLT - plow, 7/16 NC x 1-5/16 inch, type 5 (Replaces bolt 592722R1)

1шт.

8

483500R4

GUARD

- knife, second or third double left-hand end (Replaces guard 483500R3)

2шт.

REF: #8 - 483500R4 IS A STANDARD GUARD, NOWS THERE'S A DOUBLE HEAT TREATED GUARD PART NUMBER IS 187346A1.

1шт.

M805X

BOLT AND NUT

BOLT - plow, 7/16 NC x 1-5/16 inch, type 5 (Replaces bolt 592722R1)

1шт.

420-3728

CARRIAGE BOLT,#3, 7/16" - 14 x 1 3/4", Gr 8

BOLT - plow, 7/16 NC x 1-3/4 inch, grade 8 (Replaces bolts 609826R1 and 489246R1)

1шт.

111-422

CARRIAGE BOLT,Short NK, 7/16"-14 x 2", G2

BOLT, CARRIAGE, (Replaces bolt 18698R1) Short NK, 7/16"-14 x 2", G2

1шт.

129-104

NUT,7/16"-14, G5

1 per bolt (Replaces nut 271501) 7/16"-14, G5

1шт.

9

613838R2

GUARD

- knife double, twenty-one used with 12 foot, twenty-five used with 14 foot, twenty-nine used with 16 foot

1шт.

REF: #9 - 613838R2 IS A STANDARD GUARD, NOWS THERE'S A DOUBLE HEAT TREATED GUARD PART NUMBER IS 187350A1.

1шт.

M805X

BOLT AND NUT

BOLT - plow, 7/16 NC x 1-5/16 inch, type 5, nineteen used with 12 foot, twenty-three used with 14 foot, twenty-seven used with 16 foot (Replaces bolt 592722R1)

1шт.

M806

PLOW BOLT

BOLT - plow, 7/16 NC x 1-9/16 inch, type 5, twenty-one used with 12 foot, twenty-five used with 14 foot, twenty-nine used with 16 foot (Replaces bolt 592724R1)

1шт.

420-3728

CARRIAGE BOLT,#3, 7/16" - 14 x 1 3/4", Gr 8

BOLT - plow, 7/16 NC x 1-3/4 inch, grade 8 (Replaces bolts 609826R1 and 489246R1)

3шт.

433-728

CARRIAGE BOLT,Sq Nk, 7/16" - 14 x 1 3/4", Gr 5

BOLT - carraige, 7/16 NC x 1-3/4 inch (Replaces bolt 632593R1)

3шт.

129-104

NUT,7/16"-14, G5

1 per bolt (Replaces nut 271501) 7/16"-14, G5

1шт.

10

831487C2

GUARD

- knife single, right-hand

1шт.

M805X

BOLT AND NUT

BOLT - plow, 7/16 NC x 1-5/16 inch, type 5 (Replaces bolt 592722R1)

1шт.

434-616

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1", Gr 5

BOLT - carriage, 3/8 NC x 1 inch (Replaces bolt 495967R1)

2шт.

425-106

NUT,3/8"-16, Cl 5

(Replaces nut 120377) 3/8"-16, G5

2шт.

129-104

NUT,7/16"-14, G5

(Replaces nut 271501) 7/16"-14, G5

1шт.

192-21

LOCK WASHER,3/8"

WASHER, LOCK, (Replaces washer 120382) 3/8"

2шт.

11

613842R2

GUIDE

HOLDER - knife, nine used with 12 foot, eleven used with 14 foot, thirteen used with 16 foot

1шт.

12

595213R1

STRIP

SHIM - knife holder, fifteen used with 12 foot, seventeen used with 14 foot, nineteen used with 16 foot

1шт.

13

824981C1

GUIDE

- knife high arch, left-hand

1шт.

14

595648R1

GUIDE

- knife high arch, right-hand, not for use with strut or stub guards

2шт.

15

58600C1

GUARD ASSY.

GUARD - strut, for use in extremely rocky conditions, twenty-one used with 12 foot, twenty-five used with 14 foot, twenty-nine used with 16 foot

1шт.

16

58601C1

CLIP

- low arch, strut, for use in extremely rocky conditions, one per guard 58600C1

1шт.

17

58602C1

CLIP

- high arch, strut, for use in extremely rocky conditions

2шт.

18

179759C1

PLATE

- wear, for strut and stub guards (Replaces plate MC468)

1шт.

19

472717R2

GUARD

- single, stub, for use when excessive plugging of standard guard occurs, forty-six used with 12 foot, fifty-four used with 14 foot, sixty-two used with 16 foot

1шт.

20

101831C2

CLIP

- low arch, stub, for use when excessive plugging of standard guard occurs, one per two guards

1шт.

21

101832C2

CLIP

- high arch, stub, for use when excessive plugging of standard guard occurs

2шт.
