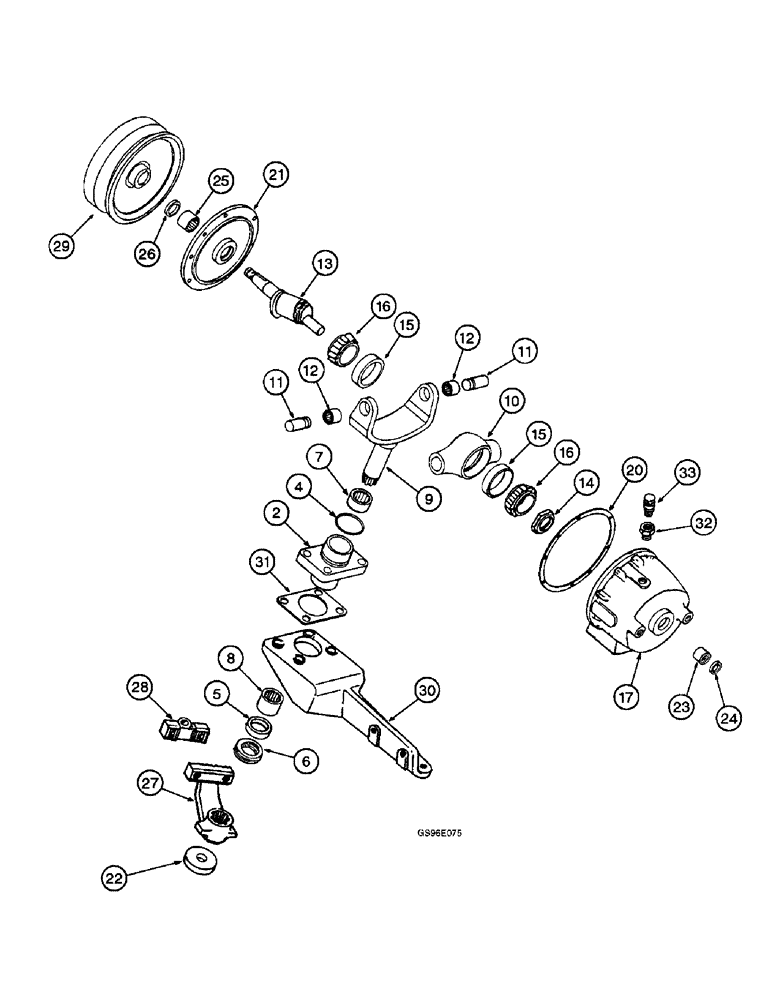

Запчасти Case IH INTERNATIONAL (4-16) - KNIFE DRIVE CONNECTIONS, SINGLE & DUAL AUGER (14) - CROP CUTTING

136323C92

DRIVE

ASSEMBLY - knife (Replaces drive assembly 136323C91)

1шт.

Used on Dual Auger Only

1шт.

136323C92R

REMAN-WOBBLE BOX

Remanufactured, Wobble Box, N.A. Only

1шт.

136323C92C

CORE-WOBBLE BOX

Return Number, Wobble Box, N.A. Only

1шт.

2

136324C1

HOUSING

- yoke bearing

1шт.

113-607

BOLT,Hex, 5/8" - 11 x 1-1/2", Gr 5, Full Thd

- hex, 5/8 NC x 2-1/2 inch (Replaces bolt 271547)

1шт.

831675C2

BOLT,5/8" - 11 x 2 3/4", Gr 8

- hex, 5/8 NC x 2-3/4 inch

4шт.

496-21066

WASHER,16.6mm ID x 33.5mm OD x 3.8mm Thk

- flat, 21/32 x 1-5/16 x 5/32 inch, hardened (Replaces washer 589068R1)

4шт.

4

238-3231

O-RING,2.609" ID x 2.887" OD x 0.139"

- yoke bearing housing (Replaces O-ring 21552R1)

1шт.

5

101295C1

OIL SEAL

- oil, housing

1шт.

6

116955C1

GASKET,41.27mm ID x 76.2mm OD x 14.22mm Thk

WASHER - felt, 1-5/8 x 3 x 9/16 inch

1шт.

7

205369R91

NEEDLE BEARING,Needle, 41.26mm ID x 50.81mm OD x 15.88mm W

BEARING - needle, housing inner

1шт.

8

166957R91

NEEDLE BEARING,Needle, 41.26mm ID x 50.81mm OD x 31.75mm W

BEARING - needle, housing outer

1шт.

9

101301C1

SHIFTER FORK

YOKE - knife drive

1шт.

26323R1

BOLT,Hex, 3/4" - 10 x 1 1/2", Gr 8

- hex prevailing torque, 3/4 NC x 1-1/2 inch

1шт.

10

62520C2

TRUNNION

- wobble shaft (Replaces trunnion 62520C1)

1шт.

38-32024

PIN,5/16" x 1 1/2", Coiled

- spiral, 5/16 x 2 inch (Replaces pin 617939R1)

2шт.

11

62522C1

STUD

- trunnion

2шт.

12

A12652

NEEDLE BEARING,1" ID x 1.251" OD x 0.75"

BEARING - needle, trunnion stud (Replaces bearing 550839R91)

2шт.

13

101300C1

SHAFT

- wobble

1шт.

414089C1

FLANGE NUT,5/8" - 18

NUT - hex, 5/8 inch NC

1шт.

14

62521C2

NUT

- stake

1шт.

15

364463C91

BEARING ASSY,2.0005" ID x 3.2283" OD x 0.875"

BEARING - tapered roller, wobble shaft bearing

2шт.

16

364462C1

BEARING CUP,82.55mm OD x 16.51mm W

CUP - bearing, wobble shaft bearing

2шт.

17

136325C2

HOUSING

- wobble shaft

1шт.

113-417

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5, Full Thd

(Replaces bolt 180175) Hex, 1/2"-13 x 1 1/4", G5, Full Thd

2шт.

192-23

LOCK WASHER,1/2"

WASHER, LOCK, (Replaces washer 120384) 1/2"

2шт.

495-81024

WASHER,17/32" x 1 1/4" x .060"

- flat, 17/32 x 1-1/4 x 1/16 inch (Replaces washer 178374R1)

1шт.

823781C1

WASHER

- flat, 17/32 x 1-1/4 x 7/64 inch, no longer used, order two 495-81024 washers

1шт.

217-436

PLUG,Hex Soc, 3/8" - 18 NPTF

- hex socket, 3/8 inch PT (Replaces plug 445673)

3шт.

20

62525C2

GASKET,0.76mm Thk

- cover (Replaces gasket 62525C1)

1шт.

21

62526C1

COVER

- knife drive box, housing

1шт.

117045C1

LOCK BOLT

BOLT - hex dry lock, 3/8 NC x 1 inch

8шт.

22

116954C1

WASHER

- flat, 5/32 x 2-13/32 x 5/16 inch

1шт.

23

101293C91

NEEDLE BEARING,Needle, 22.21mm ID x 47.75mm OD x 25.4mm W

BEARING - wobble shaft inner

1шт.

24

544667R91

SEAL,22.23mm ID x 31.85mm OD x 4.78mm Thk

SEAL - inner oil

1шт.

25

F60368

NEEDLE BEARING

BEARING - needle, wobble shaft outer (Replaces bearing 143996H1)

1шт.

26

62527C1

OIL SEAL,25.4mm ID x 41.35mm OD x 6.5mm Thk

- oil, outer

1шт.

27

62529C1

CRANK

- knife

1шт.

326-1036

BOLT,Hex, 5/8" - 11 x 2-1/4", Gr 8

(Replaces bolt 24876R1) Hex, 5/8"-11 x 2 1/4", G8

2шт.

192-25

LOCK WASHER,5/8"

WASHER, LOCK, (Replaces washer 121574) 5/8"

2шт.

67872C1

WASHER

- flat, 21/32 x 1-1/8 x 1/4 inch

2шт.

28

101296C2

NOZZLE HOLDER

HOLDER - ball stud

1шт.

29

830454C1

PULLEY

- knife driven

1шт.

Q53

KEY,1/4" Sq x 1", Par

1шт.

30

831844C1

SUPPORT

- knife drive

1шт.

409-7816

BOLT,Hex Flg, 1/2" - 13 x 1", Spcl

- hex serrated flange, 1/2 NC x 1 inch

4шт.

31

829374C2

BAR

- shim

1шт.

32

217-41

REDUCER,3/8"-18 NPTF x 1/8"-27 Fem NPTF

- 3/8 x 1/8 inch (Replaces bushings 444333 and 119933)

1шт.

33

152127H1

BREATHER,1/8"-27, Short

- 1/8 inch PT

1шт.
