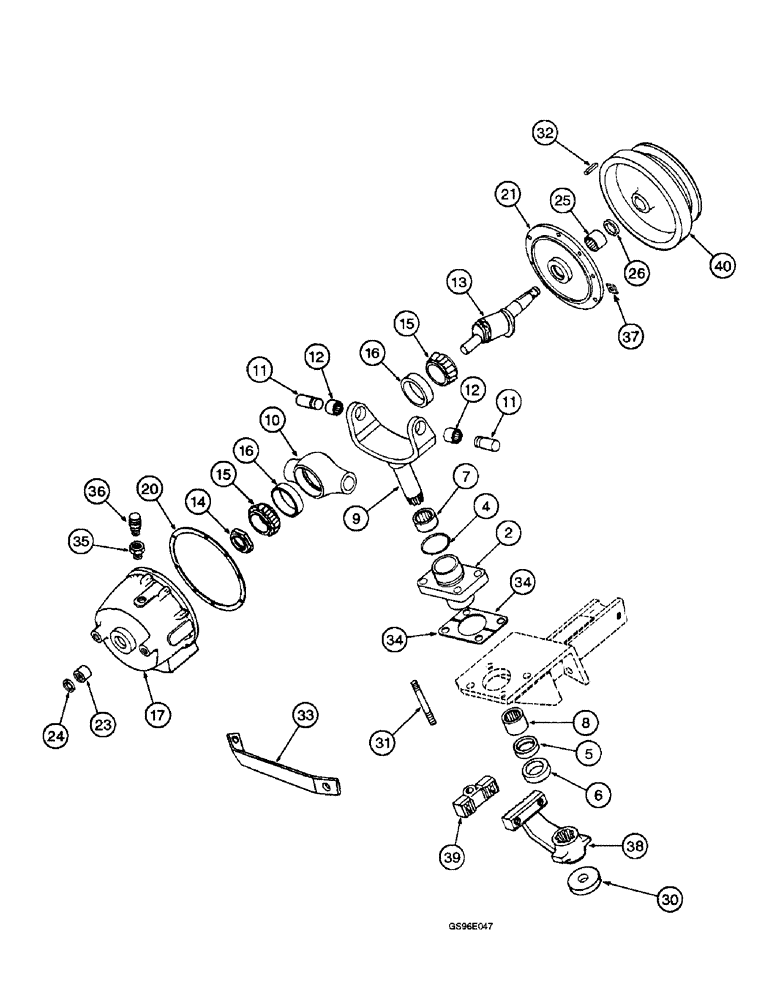

Запчасти Case IH INTERNATIONAL (3-38) - KNIFE DRIVE CONNECTIONS, SINGLE AUGER (14) - CROP CUTTING

117020C91

DRIVE

ASSEMBLY - knife, no longer used, order drive assembly 136323C92

1шт.

136323C92

DRIVE

ASSEMBLY - knife (Replaces drive assemblies 117020C91 and 136323C91)

1шт.

136323C92R

REMAN-WOBBLE BOX

Remanufactured, Wobble Box, N.A. Only

1шт.

136323C92C

CORE-WOBBLE BOX

Return Number, Wobble Box, N.A. Only

1шт.

2

62524C1

HOUSING

- yoke bearing, no longer used, order housing 136324C1

1шт.

2

136324C1

HOUSING

- yoke bearing, used with drive assembly 136323C92, 5/8 inch holes

1шт.

4

238-3231

O-RING,2.609" ID x 2.887" OD x 0.139"

- yoke bearing housing (Replaces O-ring 21552R1)

1шт.

5

101295C1

OIL SEAL

- oil, housing

1шт.

6

116955C1

GASKET,41.27mm ID x 76.2mm OD x 14.22mm Thk

WASHER - felt, 1-5/8 x 3 x 9/16 inch

1шт.

7

205369R91

NEEDLE BEARING,Needle, 41.26mm ID x 50.81mm OD x 15.88mm W

BEARING - needle, housing inner

1шт.

8

166957R91

NEEDLE BEARING,Needle, 41.26mm ID x 50.81mm OD x 31.75mm W

BEARING - needle, housing outer

1шт.

9

101301C1

SHIFTER FORK

YOKE - knife drive

1шт.

26323R1

BOLT,Hex, 3/4" - 10 x 1 1/2", Gr 8

- hex prevailing torque, 3/4 NC x 1-1/2 inch

1шт.

10

62520C2

TRUNNION

- wobble shaft

1шт.

38-32024

PIN,5/16" x 1 1/2", Coiled

- spiral, 5/16 x 2 inch (Replaces pin 617939R1)

2шт.

11

62522C1

STUD

- trunnion

2шт.

12

A12652

NEEDLE BEARING,1" ID x 1.251" OD x 0.75"

BEARING - needle, trunnion stud (Replaces bearing 550839R91)

2шт.

13

101300C1

SHAFT

- wobble

1шт.

414089C1

FLANGE NUT,5/8" - 18

NUT - hex, 5/8 inch NC

1шт.

14

62521C2

NUT

- stake

1шт.

15

364463C91

BEARING ASSY,2.0005" ID x 3.2283" OD x 0.875"

BEARING - tapered roller, wobble shaft bearing

2шт.

16

364462C1

BEARING CUP,82.55mm OD x 16.51mm W

CUP - bearing, wobble shaft bearing

2шт.

17

62523C1

HOUSING

- wobble shaft, used with drive assembly 117020C91, no longer used, order housing 136325C2, housing 136324C1, bolt 831675C2 and bar 829374C2

1шт.

17

136325C2

HOUSING

- wobble shaft, used with drive assembly 136323C92

1шт.

217-436

PLUG,Hex Soc, 3/8" - 18 NPTF

- hex, socket, 3/8 inch PT (Replaces plug 445673)

3шт.

20

62525C2

GASKET,0.76mm Thk

- cover (Replaces gasket 62525C1)

1шт.

21

62526C1

COVER

- knife drive box, housing

1шт.

117045C1

LOCK BOLT

BOLT - hex dry lock, 3/8 NC x 1 inch

8шт.

23

101293C91

NEEDLE BEARING,Needle, 22.21mm ID x 47.75mm OD x 25.4mm W

BEARING - wobble shaft inner

1шт.

24

544667R91

SEAL,22.23mm ID x 31.85mm OD x 4.78mm Thk

SEAL - inner oil

1шт.

25

F60368

NEEDLE BEARING

BEARING - needle, wobble shaft outer (Replaces bearing 143996H1)

1шт.

26

62527C1

OIL SEAL,25.4mm ID x 41.35mm OD x 6.5mm Thk

- oil, outer

1шт.

30

116954C1

WASHER

- flat, 5/32 x 2-13/32 x 5/16 inch

1шт.

31

636433R1

STUD

- housing, for use on headers serial no. 1207 through 2500

4шт.

31

831675C2

BOLT,5/8" - 11 x 2 3/4", Gr 8

- hex dry lock, 5/8 NC x 2-3/4 inch, used with headers serial no. 2501 and after

4шт.

329-118

NUT,1/2"-20, G8

(Replaces nut 214442) 1/2"-20, G8

4шт.

828388C1

BELLEVILLE WASHER

- Belleville

4шт.

32

Q53

KEY,1/4" Sq x 1", Par

1шт.

33

830046C1

SUPPORT

- knife drive brace

1шт.

113-417

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5, Full Thd

- hex, 1/2 NC x 1-1/2 inch (Replaces bolt 180175)

1шт.

192-23

LOCK WASHER,1/2"

WASHER, LOCK, (Replaces washer 120384) 1/2"

1шт.

495-81287

WASHER,13.49mm ID x 31.75mm OD x 3.4mm Thk

- flat, 17/32 x 1-1/4 x 7/64 inch

1шт.

34

829374C2

BAR

- shim

1шт.

35

217-41

REDUCER,3/8"-18 NPTF x 1/8"-27 Fem NPTF

- 3/8 x 1/8 inch (Replaces bushings 444333 and 119933)

1шт.

36

152127H1

BREATHER,1/8"-27, Short

- 1/8 inch PT

1шт.

37

62528C1

BAR - cover bolt retainer, also order bolt 117045C1, no longer available

1шт.

38

62529C1

CRANK

- knife

1шт.

326-1036

BOLT,Hex, 5/8" - 11 x 2-1/4", Gr 8

(Replaces bolt 24876R1) Hex, 5/8"-11 x 2 1/4", G8

2шт.

192-25

LOCK WASHER,5/8"

WASHER, LOCK, (Replaces washer 121574) 5/8"

2шт.

67872C1

WASHER

- flat, 21/32 x 1-1/8 x 1/4 inch

2шт.

39

101296C2

NOZZLE HOLDER

HOLDER - ball stud

1шт.

40

828960C2

PULLEY

- knife driven

1шт.

113-410

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

Used with housing 62524C1 (Replaces bolt 180177) Hex, 1/2"-13 x 1 1/2", G5, Full Thd

1шт.

113-441

BOLT,Hex, 1/2" - 13 x 2-1/4", Gr 5

Hex, 1/2"-13 x 2 1/4", G5, Used with housing 62524C1 (Replaces bolt 180183)

4шт.

80087972

BOLT,Hex, 1/2" - 13 x 2 1/2", Gr 5

- hex, 1/2 NC x 2-1/2 inch, used with housing 62524C1 (Replaces bolt 180185)

4шт.

192-23

LOCK WASHER,1/2"

WASHER, LOCK, , Used with housing 62524C1 (Replaces washer 120384) 1/2"

4шт.

113-607

BOLT,Hex, 5/8" - 11 x 1-1/2", Gr 5, Full Thd

Used with housing 136324C1 (Replaces bolt 271547) Hex, 5/8"-11 x 1 1/2", G5, Full Thd

1шт.

831675C2

BOLT,5/8" - 11 x 2 3/4", Gr 8

- hex, 5/8 NC x 2-3/4 inch, used with housing 136324C1

4шт.

496-21066

WASHER,16.6mm ID x 33.5mm OD x 3.8mm Thk

- flat, 21/32 x 1-5/16 x 5/32 inch, used with housing 136324C1 (Replaces washer 589068R1)

4шт.
