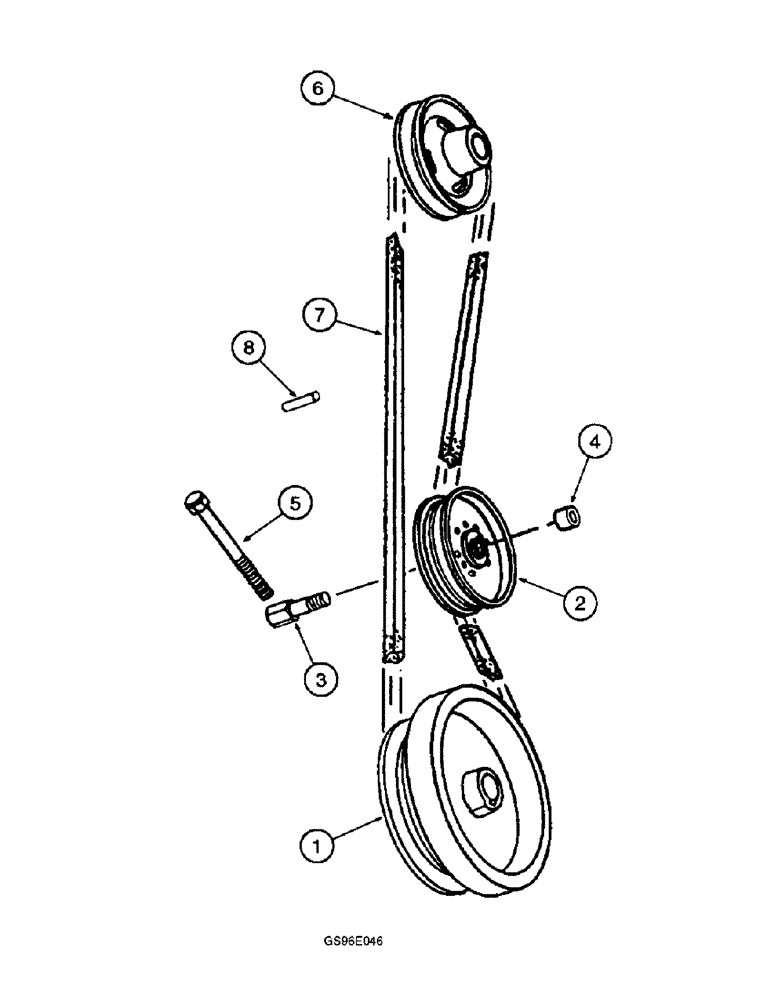

Запчасти Case IH INTERNATIONAL (3-36) - KNIFE DRIVE, SINGLE AUGER (14) - CROP CUTTING

1

828960C2

PULLEY

- knife driven, for connecting parts see page 3-37

1шт.

Q53

KEY,1/4" Sq x 1", Par

1шт.

2

607443R91

PULLEY

- knife drive tightener

1шт.

3

595758R4

BOLT,Hex, 1/2" - 13 x 2.75"

- tightener pulley mounting

1шт.

129-105

NUT,Hex, 1/2" - 13, Gr 5

(Replaces nut 120378) 1/2"-13, G5

1шт.

192-23

LOCK WASHER,1/2"

WASHER, LOCK, (Replaces washer 120384) 1/2"

1шт.

495-81287

WASHER,13.49mm ID x 31.75mm OD x 3.4mm Thk

- flat, 17/32 x 1-1/4 x 7/64 inch

4шт.

495-81024

WASHER,17/32" x 1 1/4" x .060"

- flat, 17/32 x 1-1/4 x 1/16 inch (Replaces washer 178374R1)

1шт.

4

55754D

SPACER,1/2" X-Strng Pipe x 5/8"

- pulley

1шт.

5

829323C1

BOLT,Hex, 1/2" - 13 x 12.5"

- pulley adjusting

1шт.

495-81287

WASHER,13.49mm ID x 31.75mm OD x 3.4mm Thk

- flat, 17/32 x 1-1/4 x 7/64 inch

1шт.

6

829301C1

PULLEY

- knife drive, 6-13/32 OD, for use on 10-1/2, 12-1/2, 14-1/2, 16-1/2, 19-1/2, and 24-1/2 foot headers built from, Serial Range: 1976-1979

1шт.

6

824264C1

PULLEY

- knife drive, 7-13/32 OD, for use on 12-1/2, 14-1/2, 16-1/2 and 19-1/2 foot headers built 1980 and later

1шт.

6

824709C1

PULLEY

- knife drive, 6-15/16 OD, for use on 24-1/2 foot headers built 1980 and later, for connecting parts see page 3-11 or 3-13

1шт.

7

596222R1

V-BELT,0.88" W

Knife drive, For use w/ 829301C1 pulley 0.88" W

1шт.

7

824274C1

BELT,3622.04 mm L

Knife Drive, for use with 824264C1 and 824709C1 Pulleys 3622.04 mm L

1шт.

8

179441C1

SPACER

- knife drive belt guide

1шт.

113-177

BOLT,Hex, 5/16" - 18 x 3", Gr 5

(Replaces bolt 180113) Hex, 5/16"-18 x 3", G5

1шт.

425-105

NUT,5/16"-18, G5

- hex, 5/16 inch NC

1шт.

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

495-81114

WASHER,8.74mm ID x 19.05mm OD x 1.7mm Thk

- flat, 11/32 x 3/4 x 3/64 inch (Replaces washer 619855R1)

1шт.
