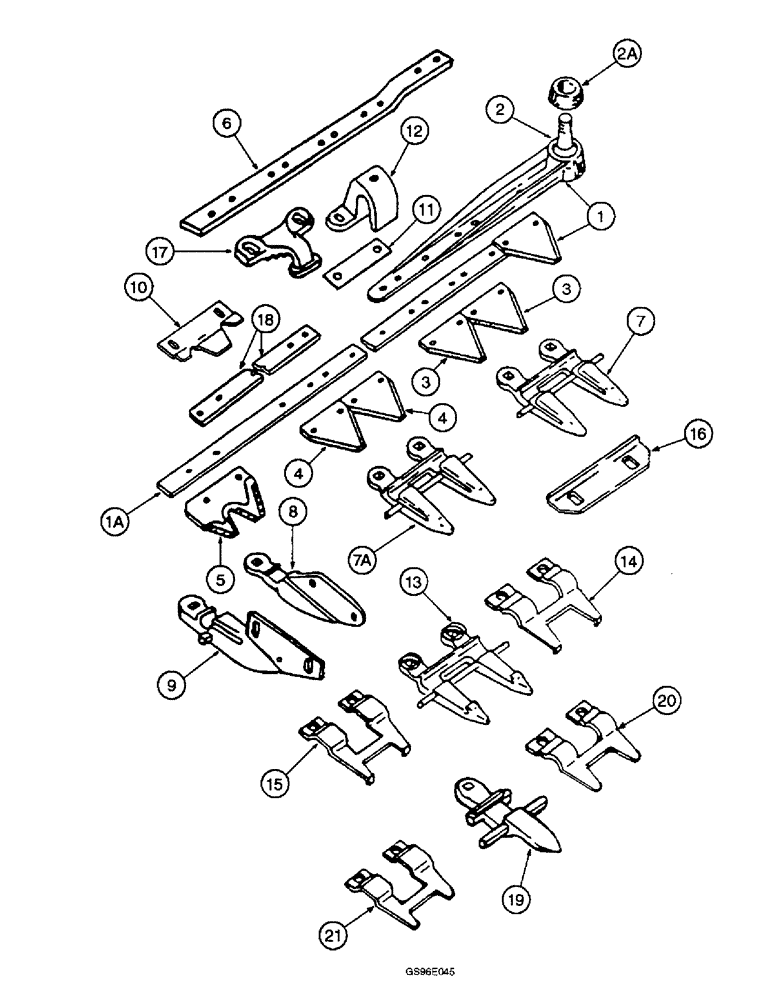

Запчасти Case IH INTERNATIONAL (3-34) - KNIFE AND GUARDS (14) - CROP CUTTING

1

824704C94

KNIFE

ASSEMBLY - 10-1/2 foot, chrome plated underserrated sections, for first conversion only, order knife assembly 827812C91, guide 595648R1, two 595213R1 shims and two 420-3728 bolts

1шт.

1

827812C92

KNIFE

ASSEMBLY - 10-1/2 foot, chrome plated underserrated sections (Replaces knife assembly 827812C91)

1шт.

1

824506C94

KNIFE

ASSEMBLY - 12-1/2 foot, chrome plated underserrated sections, for first conversion only, order knife assembly 827813C91, guide 595648R1, two 595213R1 shims and two 420-3728 bolts

1шт.

1

827813C92

KNIFE ASSY

KNIFE ASSEMBLY - 12-1/2 foot, chrome plated underserrated sections (Replaces knife assembly 827813C91)

1шт.

1

831606C93

KNIFE

ASSEMBLY - 12-1/2 foot, chrome plated overserrated sections, for first conversion only, order knife assembly 827719C91, guide 595648R1, two 595213R1 shims and two 420-3728 bolts

1шт.

1

827719C92

KNIFE ASSY

KNIFE ASSEMBLY - 12-1/2 foot, chrome plated overserrated sections (Replaces knife assembly 827719C91)

1шт.

1

824705C94

KNIFE

ASSEMBLY - 14-1/2 foot, chrome plated underserrated sections, for first conversion only, order knife assembly 827814C91, guide 595648R1, two 595213R1 shims and two 420-3728 bolts

1шт.

1

827814C92

KNIFE ASSY

KNIFE ASSEMBLY - 14-1/2 foot, chrome plated underserrated sections (Replaces knife assembly 827814C91)

1шт.

1

831607C93

KNIFE

ASSEMBLY - 14-1/2 foot, chrome plated overserrated sections, for first conversion only, order knife assembly 827821C91, guide 595648R1, two 595213R1 shims and two 420-3728 bolts

1шт.

1

827721C92

KNIFE ASSY

KNIFE ASSEMBLY - 14-1/2 foot, chrome plated overserrated sections (Replaces knife assembly 827721C91)

1шт.

1

824508C94

KNIFE

ASSEMBLY - 16-1/2 foot, chrome plated underserrated sections, for first conversion only, order knife assembly 827815C91, guide 595648R1, two 595213R1 shims and two 420-3728 bolts

1шт.

1

827815C92

KNIFE ASSY

KNIFE ASSEMBLY - 16-1/2 foot, chrome plated underserrated sections (Replaces knife assembly 827815C91)

1шт.

1

824706C94

KNIFE

ASSEMBLY - 19-1/2 foot, chrome plated underserrated sections, for first conversion only, order knife assembly 827816C91, guide 595648R1, two 595213R1 shims and two 420-3728 bolts

1шт.

1

827816C93

KNIFE

ASSEMBLY - 19 -1/2 foot, chrome plated underserrated sections (Replaces knife assemblies 827816C91 and 827816C92)

1шт.

1

1281481C92

KNIFE ASSY

KNIFE ASSEMBLY - 19-1/2 foot, chrome plated overserrated sections

1шт.

1

1281480C92

KNIFE ASSY

KNIFE ASSEMBLY - 16-1/2 foot, chrome plated overserrated sections

1шт.

1

827830C92

KNIFE

ASSEMBLY - 24-1/2 foot, chrome plated underserrated sections, right-hand and left-hand assemblies no longer sold separately (Replaces knife assembly 827830C91)

1шт.

1a

824708C1

BAR

- knife back, used with knife assemblies 824704C94, 824506C94, 831606C93, 824705C94 and 831607C93, no longer available, order knife assembly 827721C92

1шт.

1a

825073C1

BAR

- knife back, used with knife assemblies 827812C91, 827813C91, 827719C91, 827814C91 and 827721C91, no longer available , order knife assembly 827721C92

1шт.

1a

824765C1

BAR

1шт.

BAR - knife back, used with knife assemblies 824508C94 and 824706C94, no longer available, replace with two 420-3728 bolts, two 595213R1 shims (item 13), one 595648R1 holder (item 20), one 825075C1 bar (item 1A below) and one 827733C2 knife back reinforcement (item 6)

1шт.

1a

825075C1

BAR

- knife back, used with knife assemblies 827815C91 and 827816C91, no longer available

1шт.

1a

NSS

NOT SOLD SEPARAT

BAR - knife back, 24-1/2 foot, order knife assembly 827830C91

1шт.

824594C91

END ASSY.

END ASSEMBLY - knife head with step (Replaces end assembly 824812C94 without step)

1шт.

2

NSS

NOT SOLD SEPARAT

HEAD - knife, order end assembly 824594C91

1шт.

425-1310

SLOTTED NUT,5/8"-18, G5

NUT - hex, slotted, 5/8 inch NF (Replaces nuts 102903H1 and 12567)

1шт.

2a

A31186

BOOT

SEAL - knife head end (Replaces seals 194690R1 and 180800C1)

1шт.

132-335

COTTER PIN,1/8" x 1 1/4"

1/8" x 1-1/4" (Replaces pin 103386)

1шт.

219-37

LUBE NIPPLE,45 Degree Elbow, 1/4" - 28 NPTF

FITTING - grease, 45 degree, 1/4-28 taper x 13/16 inch (Replaces fitting 117175)

1шт.

3

823711C3

KNIFE SECTION

SECTION - chrome plated, underserrated, left-hand, used with knife assemblies 824704C94, 827812C91, 824506C94, 827813C91, 824705C94, 827814C91, 824508C94, 827815C91, 824706C94, 827816C91 and 827830C91 (Replaces section 823711C2)

4шт.

3

823713C3

KNIFE SECTION

SECTION - chrome plated, overserrated, left-hand, used with knife assemblies 831606C93, 827719C91, 831607C93 and 827721C91 (Replaces section 823713C2)

4шт.

45-418

RIVET,Button, 6.35mm OD x 28.57mm L

1шт.

RIVET - tube clamp, one pound package, three used with knife assemblies 827812C91, 827813C91, 827816C91, 827830C91, 827719C91, 827814C91, 827721C91 and 827815C91; seven used with assemblies 824704C94, 824506C94, 831606C93, 824705C94, 831607C93, 824706C94 and 824508C94 (Replaces rivets 990727R91 and 104086)

1шт.

990323R91

PACKAGE

RIVET - button head, 1/4 x 3/4 inch, one pound package

1шт.

990325R91

RIVET

- button head, 1/4 x 1 inch, one pound package

1шт.

990719R91

RIVET

RIVET - oval head, No. 6 x 7/8 inch, one pound package, used with knife assemblies 824704C94, 824506C94, 831606C93, 824705C94, 831607C93, 824508C94 and 824706C94

7шт.

4

457606R3

KNIFE SECTION

SECTION - chrome plated, underserrated, seventy-two used with 19-1/2 foot assembly, ninety-two used with 24-1/2 foot assembly (Replaces section 457606R2)

1шт.

4

457607R3

KNIFE SECTION

SECTION - chrome plated, underserrated, thirty-six used with 10-1/2 foot assemblies, forty-four used with 12-1/2 foot, fifty-two used with 14-1/2 foot, sixty used with 16-1/2 foot (Replaces section 457607R2)

1шт.

4

596321R4

KNIFE SECTION

SECTION - chrome plated, overserrated, forty-four used with 12-1/2 foot assemblies, fifty-two used with 14-1/2 foot (Replaces section 596321R3)

1шт.

991014R91

KIT

1шт.

RIVET - small oval head, 1/2 x 9/16 inch, one pound package, 57 used with knife assembly 827812C91; 67 used with knife assembly 824704C94; 73 used with assemblies 827813C91 and 827719C91; 83 used with assemblies 824506C94 and 831606C93; 89 used with assemblies 827814C91 and 827721C91; 99 used with assemblies 824705C94 and 831607C93; 115 used with assemblies 824508C94 and 827815C91; 129 used with assembly 827816C91; 139 used with assembly 824706C94; 159 used with assembly

1шт.

5

ZA290642

KNIFE SECTION

SECTION - chrome plated, underserrated, triple right-hand (Replaces sections 467456R1 and 467458R1)

1шт.

5

148200C1

KNIFE SECTION

SECTION - chrome plated, overserrated double

1шт.

991014R91

KIT

RIVET - small oval head, 1/2 x 9/16 inch, one pound package

2шт.

6

824595C1

REINFORCEMENT

- knife back, 42 inch (1069 mm) long, for first conversion only, no longer used, order reinforcement 827733C1, guide 595648R1, two 595213R1 shims and two 420-3728 bolts

1шт.

6

827733C2

REINFORCEMENT

- knife back, 32 inch (819 mm) long (Replaces reinforcement 827733C1)

1шт.

104087

RIVET,But Hd, 1/4" x 1 1/4"

- button head, 1/4 x 1-1/4 inch, used with knife assemblies 827812C91, 827813C91, 827719C91, 827814C91, 827721C91, 827815C91, 827816C91 and 827830C91

4шт.

MA133M

RIVET,23.81mm OD x 139.7mm L

- oval head, No. 6 x 7/8 inch, one pound package, used with knife assemblies 827812C91, 827813C91, 827719C91, 827814C91, 827721C91, 827815C91, 827816C91 and 827830C91

1шт.

7

483500R4

GUARD

- knife, double left-hand (Replaces guard 483500R3)

3шт.

483500R4 IS A STANDARD GUARD, NOWS THERE'S A DOUBLE HEAT TREATED GUARD PART NUMBER IS 187346A1.

1шт.

M805X

BOLT AND NUT

BOLT - plow, 7/16 NC x 1-5/16 inch, type 5 (Replaces bolt 592722R1)

3шт.

M806

PLOW BOLT

BOLT - plow, 7/16 NC x 1-9/16 inch, type 5 (Replaces bolt 592724R1)

1шт.

420-3728

CARRIAGE BOLT,#3, 7/16" - 14 x 1 3/4", Gr 8

BOLT - plow, 7/16 NC x 1 inch, grade 8 (Replaces bolts 609826R1 and 489246R1)

1шт.

433-724

CARRIAGE BOLT,Sq Nk, 7/16" - 14 x 1 1/2", Gr 5

BOLT - carriage, 7/16 NC x 1-1/2 inch (Replaces bolts 18696R1 and 168930C1)

1шт.

129-104

NUT,7/16"-14, G5

(Replaces nut 271501) 7/16"-14, G5

6шт.

7a

613838R2

GUARD

- knife double, seventeen used with 10-1/2 foot, twenty-one used with 12-1/2 foot, twenty-five used with 14-1/2 foot, twenty-nine used with 16-1/2 foot, thirty-five used with 19-1/2 foot, 45 used with 24-1/2 foot

1шт.

613838R2 IS A STANDARD GUARD, NOWS THERE'S A DOUBLE HEAT TREATED GUARD PART NUMBER IS 187350A1.

1шт.

M805X

BOLT AND NUT

1шт.

BOLT - plow, 7/16 NC x 1-5/16 inch, type 5, nineteen used with 10-1/2 and 12-1/2 foot, twenty-three used with 14-1/2 foot, twenty-seven used with 16-1/2 foot, thirty-three used with 19-1/2 foot, forty-three used with 24-1/2 foot (Replaces bolt 592722R1)

1шт.

M806

PLOW BOLT

1шт.

BOLT - plow, 7/16 NC x 1-9/16 inch, type 5, sixteen used with 10-1/2 foot, eighteen used with 12-1/2 foot, twenty-two used with 14-1/2 foot, twenty-six used with 16-1/2 foot, thirty-two used with 19-1/2 foot, thirty-eight used with 24-1/2 foot (Replaces bolt 592724R1)

1шт.

129-104

NUT,7/16"-14, G5

1 per bolt (Replaces nut 271501) 7/16"-14, G5

1шт.

8

540603R2

FINGER

GUARD - knife, single right-hand, used with headers built prior to serial no. 2501, no longer available, order guard 1253640C1, support 1253641C1 and bar 143799C1

1шт.

9

831487C2

GUARD

- knife, single right-hand, used with headers having serial no. 2501 and after

1шт.

434-616

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1", Gr 5

BOLT - carriage, 3/8 NC x 1 inch (Replaces bolt 495967R1)

2шт.

433-724

CARRIAGE BOLT,Sq Nk, 7/16" - 14 x 1 1/2", Gr 5

BOLT - carriage, 7/16 NC x 1-1/2 inch (Replaces bolts 18696R1 and 168930C1)

1шт.

425-106

NUT,3/8"-16, Cl 5

(Replaces nut 120377) 3/8"-16, G5

2шт.

129-104

NUT,7/16"-14, G5

(Replaces nut 271501) 7/16"-14, G5

1шт.

192-21

LOCK WASHER,3/8"

WASHER, LOCK, (Replaces washer 120382) 3/8"

2шт.

10

613842R2

GUIDE

CLIP - knife hold-down, eight used with 10-1/2 foot, nine used with 12-1/2 foot, eleven used with 14-1/2 foot, thirteen used with 16-1/2 foot, sixteen used with 19-1/2 foot, nineteen used with 24-1/2 foot

1шт.

11

595213R1

STRIP

SHIM - hold-down clip and guide

1шт.

12

824981C1

GUIDE

- high arch

1шт.

420-3728

CARRIAGE BOLT,#3, 7/16" - 14 x 1 3/4", Gr 8

BOLT - plow, 7/16 NC x 1-3/4 inch, grade 8 (Replaces bolts 609826R1 and 489246R1)

2шт.

129-104

NUT,7/16"-14, G5

(Replaces nut 271501) 7/16"-14, G5

2шт.

13

58600C1

GUARD ASSY.

1шт.

GUARD - strut, for use in extremely rocky conditions, seventeen used with 10-1/2 foot, twenty-one used with 12-1/2 foot, twenty-five used with 14-1/2 foot, twenty-nine used with 16-1/2 foot, thirty-five used with 19-1/2 foot, forty-five used with 24-1/2 foot

1шт.

14

58601C1

CLIP

- low arch, strut, for use in extremely rocky conditions, one per guard 58600C1

1шт.

15

58602C1

CLIP

- high arch, strut, for use in extremely rocky conditions

2шт.

16

179759C1

PLATE

- knife wear, for strut and stub guards (Replaces plate MC468)

1шт.

990719R91

RIVET

RIVET - small oval head, No. 6 x 7/8 inch (Replaces rivet 14763R1)

5шт.

17

595648R1

GUIDE

HOLDER - knife high arch, not for use with strut or stub guards, two used with 10-1/2, 12-1/2, 14-1/2, 16-1/2 and 19-1/2 foot; four used with 24-1/2 foot

1шт.

18

825929C1

BAR

- extension connection, 24-1/2 foot only

1шт.

19

472717R2

GUARD

1шт.

GUARD - stub, single, for use when excessive plugging of standard guard occurs, thirty-eight used with 10-1/2 foot; forty-six used with 12-1/2 foot; fifty-four used with 14-1/2 foot; sixty-two used with 16-1/2 foot; seventy-four used with 19-1/2 foot; ninety-four used with 24-1/2 foot

1шт.

20

101831C2

CLIP

- low arch, stub, for use when excessive plugging of standard guard occurs, one per two guards

1шт.

21

101832C2

CLIP

- high arch, stub, for use when excessive plugging of standard guard occurs, two used with 10-1/2, 12-1/2, 14-1/2, 16-1/2 and 19-1/2 foot; seven used with 24-1/2 foot

1шт.
