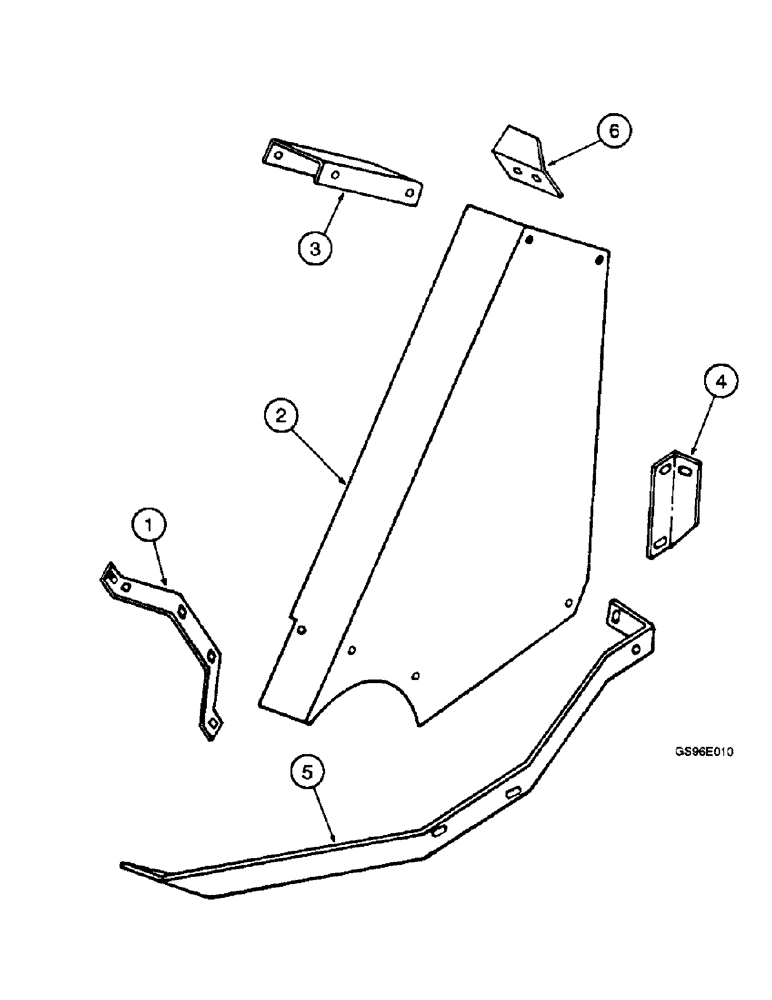

Запчасти Case IH INTERNATIONAL (2-20) - KNIFE DRIVE SHIELDS AND SUPPORTS, LEFT HAND, SINGLE AUGER (14) - CROP CUTTING

1

829418C1

SUPPORT - knife drive shield

1шт.

434-616

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1", Gr 5

BOLT - carriage, 3/8 NC x 1 inch (Replaces bolt 495967R1)

2шт.

425-106

NUT,3/8"-16, Cl 5

2шт.

192-21

LOCK WASHER,3/8"

WASHER, LOCK, (Replaces washer 120382) 3/8"

2шт.

495-61041

WASHER,10.31mm ID x 25.4mm OD x 1.6mm Thk

2шт.

2

823175C91

SHIELD

ASSEMBLY - knife drive, includes decal (Replaces shield 829417C2)

1шт.

176977C1

PRODUCT GRAPHIC

DECAL - Danger, to repair, clean or service

1шт.

409-7612

BOLT,3/8"-16 x 1.09" OAL

- hex serrated flange, 3/8 NC x 3/4 inch

3шт.

113-207

BOLT,Hex, 3/8" - 16 x 1", Gr 5

(Replaces bolt 180122) Hex, 3/8"-16 x 1", G5, Full Thd

1шт.

434-612

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 3/4", Gr 5

BOLT - carriage, 3/8 NC x 3/4 inch (Replaces bolt 598809R1)

3шт.

231-5146

FLANGE NUT,3/8"-16

7шт.

3

829416C2

CHANNEL

- knife drive shield rear support

1шт.

113-207

BOLT,Hex, 3/8" - 16 x 1", Gr 5

(Replaces bolt 180122) Hex, 3/8"-16 x 1", G5, Full Thd

1шт.

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

(Replaces bolt 180120) Hex, 3/8"-16 x 3/4", G5, Full Thd

1шт.

425-106

NUT,3/8"-16, Cl 5

2шт.

192-21

LOCK WASHER,3/8"

WASHER, LOCK, (Replaces washer 120382) 3/8"

2шт.

4

829222C1

ANGLE

- knife drive rear support

1шт.

113-410

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

(Replaces bolt 180177) Hex, 1/2"-13 x 1 1/2", G5, Full Thd

2шт.

129-105

NUT,Hex, 1/2" - 13, Gr 5

(Replaces nut 120378) 1/2"-13, G5

2шт.

192-23

LOCK WASHER,1/2"

WASHER, LOCK, (Replaces washer 120384) 1/2"

2шт.

495-81024

WASHER,17/32" x 1 1/4" x .060"

- flat, 17/32 x 1-1/4 x 3/64 inch (Replaces washer 178374R1)

2шт.

5

827221C1

SUPPORT

- knife drive shield

1шт.

113-417

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5, Full Thd

(Replaces bolt 180175) Hex, 1/2"-13 x 1 1/4", G5, Full Thd

3шт.

434-824

CARRIAGE BOLT,Sht Sq Nk, 1/2" - 13 x 1 1/2", Gr 5

BOLT - carriage, 1/2 NC x 1-1/2 inch

5шт.

129-105

NUT,Hex, 1/2" - 13, Gr 5

(Replaces nut 120378) 1/2"-13, G5

2шт.

192-23

LOCK WASHER,1/2"

WASHER, LOCK, (Replaces washer 120384) 1/2"

4шт.

495-81287

WASHER,13.49mm ID x 31.75mm OD x 3.4mm Thk

- flat, 17/32 x 1-1/4 x 7/64 inch

4шт.

495-81024

WASHER,17/32" x 1 1/4" x .060"

- flat, 17/32 x 1-1/4 x 3/64 inch (Replaces washer 178374R1)

1шт.

6

831826C1

SUPPORT

- reflector

1шт.

434-612

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 3/4", Gr 5

BOLT - carriage, 3/8 NC x 3/4 inch (Replaces bolt 598809R1)

2шт.

425-106

NUT,3/8"-16, Cl 5

2шт.

192-21

LOCK WASHER,3/8"

WASHER, LOCK, (Replaces washer 120382) 3/8"

2шт.
