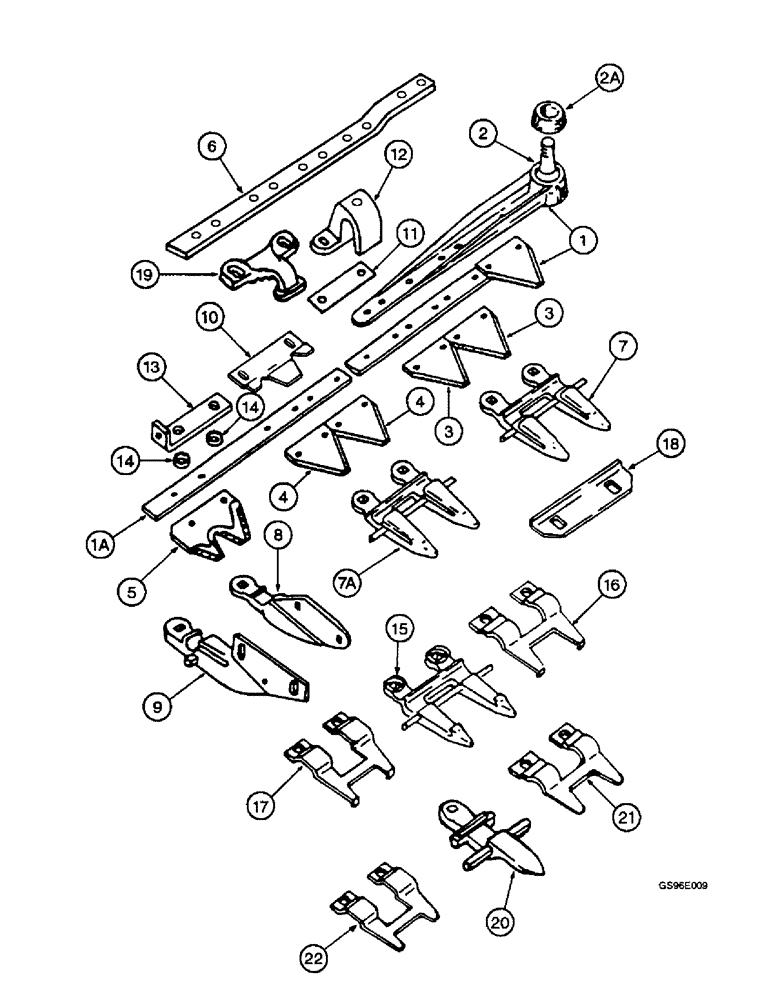

Запчасти Case IH INTERNATIONAL (2-18) - KNIFE AND GUARDS, SINGLE AUGER (14) - CROP CUTTING

1

824506C94

KNIFE

ASSEMBLY - 12 foot, chrome plated underserrated sections, for first conversion only, order knife assembly 827813C91, guide 595648R1, two 595213R1 shims and two 420-3728 bolts

1шт.

1

827813C92

KNIFE ASSY

KNIFE ASSEMBLY - 12 foot, chrome plated underserrated sections (Replaces knife assembly 827813C91)

1шт.

1

831606C93

KNIFE

ASSEMBLY - 12 foot, chrome plated overserrated sections, for first conversion only, order knife assembly 827719C91, guide 595648R1, two 595213R1 shims and two 420-3728 bolts

1шт.

1

827719C92

KNIFE ASSY

KNIFE ASSEMBLY - 12 foot, chrome plated overserrated sections (Replaces knife assembly 827719C91)

1шт.

1

824705C94

KNIFE

ASSEMBLY - 14 foot, chrome plated underserrated sections, for first conversion only, order knife assembly 827814C91, guide 595648R1, two 595213R1 shims and two 420-3728 bolts

1шт.

1

827814C92

KNIFE ASSY

KNIFE ASSEMBLY - 14 foot, chrome plated underserrated sections (Replaces knife assembly 827814C91)

1шт.

1

831607C93

KNIFE

ASSEMBLY - 14 foot, chrome plated overserrated sections, for first conversion only, order knife assembly 827721C91, guide 595648R1, two 595213R1 shims and two 420-3728 bolts

1шт.

1

827721C92

KNIFE ASSY

KNIFE ASSEMBLY - 14 foot, chrome plated overserrated sections (Replaces knife assembly 827721C91)

1шт.

1a

824708C1

BAR

- knife back, heat treated at head mounting end, for first conversion only, order bar 825073C1, guide 595648R1, two 595213R1 shims and two 420-3728 bolts

1шт.

1a

825073C1

BAR

- knife back, without heat treatment at head mounting end, no longer available, order knife assembly 87721C92

1шт.

824594C91

END ASSY.

END ASSEMBLY - knife head with step (Replaces end assembly 824812C94 without step)

1шт.

2

NSS

NOT SOLD SEPARAT

HEAD - knife, order end assembly 824594C91

1шт.

425-1310

SLOTTED NUT,5/8"-18, G5

NUT - hex, 5/8 inch NF (Replaces nut 102903H1)

1шт.

2a

A31186

BOOT

SEAL - knife head (Replaces seals 194690R1 and 180800C1)

1шт.

219-37

LUBE NIPPLE,45 Degree Elbow, 1/4" - 28 NPTF

FITTING - grease, 45 degree, 1/4-28 x 13/16 inch taper

1шт.

132-335

COTTER PIN,1/8" x 1 1/4"

1/8" x 1-1/4" (Replaces pin 103386)

1шт.

21782R1

WASHER

- flat, 21/32 x 1-1/2 x 3/64 inch

1шт.

3

823711C3

KNIFE SECTION

SECTION - chrome plated, underserrated, used with knife assemblies 824506C94, 827813C91, 824705C94 and 827814C91 (Replaces section 823711C2)

4шт.

3

823713C3

KNIFE SECTION

SECTION - chrome plated, overserrated, left-hand, used with knife assemblies 831606C93, 827719C91, 831607C93 and 827721C91 (Replaces section 823713C2)

4шт.

104086

RIVET,But Hd, 1/4" x 1 1/8"

1шт.

RIVET - button head, 1/4 x 1-1/8 inch, one pound package, seven rivets used with knife assemblies 824506C94, 831606C93, 824705C94 and 831607C93; three rivets used with knife assemblies 827813C91, 827719C91, 827814C91 and 827721C91 (Replaces rivet 990727R91)

1шт.

990719R91

RIVET

RIVET - oval head, No. 6 x 7/8 inch, one pound package, used with knife assemblies 824506C94, 831606C93, 824705C94 and 831607C93

7шт.

990323R91

PACKAGE

RIVET - button head, 1/4 x 3/4 inch, one pound package

1шт.

990325R91

RIVET

- button head, 1/4 x 1 inch, one pound package

1шт.

104087

RIVET,But Hd, 1/4" x 1 1/4"

- button head, 1/4 x 1-1/4 inch, used with knife assemblies 827813C91, 827719C91, 827814C91 and 827721C91

4шт.

148-361

RIVET - oval head, No. 6 x 15/16 inch, used with knife assemblies 827813C91, 827719C91, 827814C91 and 827721C91

17шт.

4

457607R3

KNIFE SECTION

SECTION - chrome plated, underserrated, used with knife assemblies 824506C94, 827813C91, 824705C94 and 827814C91, forty-four used with 12 foot headers, fifty-two used with 14 foot (Replaces section 457607R2)

1шт.

4

596321R4

KNIFE SECTION

SECTION - chrome plated, overserrated, used with knife assemblies 831606C93, 827719C91, 831607C93 and 827721C91, forty-four used with 12 foot headers, fifty-two used with 14 foot (Replaces section 596321R3)

1шт.

991014R91

KIT

1шт.

RIVET - small oval head, 1/2 x 9/16 inch, one pound package, seventy-three used with knife assemblies 827813C91 and 827719C91; eighty-three used with assemblies 824506C94 and 831606C93; eighty-nine used with assemblies 827814C91 and 827721C91; ninety-nine used with assemblies 824705C94 and 831607C93

1шт.

990719R91

RIVET

RIVET - oval head, No. 6 x 7/8 inch

1шт.

5

ZA290642

KNIFE SECTION

SECTION - chrome plated, underserrated, triple right-hand (Replaces section 467456R1)

1шт.

5

148200C1

KNIFE SECTION

SECTION - chrome plated, overserrated, double right-hand

1шт.

991014R91

KIT

RIVET - small oval head, 5-1/2 x 9/16 inch, one pound package

2шт.

6

824595C1

REINFORCEMENT

- knife back, 42 inch (1069 mm) long, no longer used, order reinforcement 827733C1, guide 595648C1, two 595213R1 shims and two 420-3728 bolts

1шт.

6

827733C2

REINFORCEMENT

- knife back, 32 inch (819 mm) long (Replaces reinforcement 827733C1)

1шт.

7

483500R4

GUARD

- knife, double, left-hand end (Replaces guard 483500R3)

3шт.

REF: #7 - 483500R4 IS A STANDARD GUARD, NOWS THERE'S A DOUBLE HEAT TREATED GUARD PART NUMBER IS 187346A1.

1шт.

M805X

BOLT AND NUT

BOLT - plow, 7/16 NC x 1-5/16 inch, type 5 (Replaces bolt 592722R1)

3шт.

M806

PLOW BOLT

BOLT - plow, 7/16 NC x 1-9/16 inch, type 5 (Replaces bolt 592724R1)

1шт.

420-3728

CARRIAGE BOLT,#3, 7/16" - 14 x 1 3/4", Gr 8

BOLT - plow, 7/16 NC x 1-3/4 inch, grade 8 (Replaces bolts 609826R1 and 489246R1)

1шт.

433-724

CARRIAGE BOLT,Sq Nk, 7/16" - 14 x 1 1/2", Gr 5

BOLT - carriage, 7/16 NC x 1-1/2 inch (Replaces bolts 18696R1 and 168930C1)

1шт.

129-104

NUT,7/16"-14, G5

(Replaces nut 271501) 7/16"-14, G5

6шт.

7a

613838R2

GUARD

- knife, double, twenty-one used with 12 foot, twenty-five used with 14 foot

1шт.

REF: #7A - 613838R2 IS A STANDARD GUARD, NOWS THERE'S A DOUBLE HEAT TREATED GUARD PART NUMBER IS 187350A1.

1шт.

M805X

BOLT AND NUT

BOLT - plow, 7/16 NC x 1-5/16 inch, type 5, eighteen used with 12 foot, twenty-two used with 14 foot (Replaces bolt 592722R1)

1шт.

M806

PLOW BOLT

BOLT - plow, 7/16 NC x 1-9/16 inch, type 5, twenty-four used with 12 foot, twenty-eight used with 14 foot (Replaces bolt 592724R1)

1шт.

129-104

NUT,7/16"-14, G5

1 per bolt (Replaces nut 271501) 7/16"-14, G5

1шт.

8

540603R2

FINGER

GUARD - knife, single, right-hand, used with headers having serial numbers prior to 1101, no longer available, order guard 1253640C1, support 1253641C1 and bar 143799C1

1шт.

434-620

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1 1/4", Gr 5

BOLT, CARRIAGE, (Replaces bolt 550796R1) Short NK, 3/8"-16 x 1 1/4", G5, Full Thd

2шт.

420-3728

CARRIAGE BOLT,#3, 7/16" - 14 x 1 3/4", Gr 8

BOLT - plow, 7/16 NC x 1-3/4 inch, grade 8 (Replaces bolts 609826R1 and 489246R1)

1шт.

425-106

NUT,3/8"-16, Cl 5

(Replaces nut 120377) 3/8"-16, G5

2шт.

129-104

NUT,7/16"-14, G5

(Replaces nut 271501) 7/16"-14, G5

1шт.

192-21

LOCK WASHER,3/8"

WASHER, LOCK, (Replaces washer 120382) 3/8"

2шт.

9

831487C2

GUARD

- knife, single, right-hand, used with headers having serial no. 1101 and above

1шт.

434-616

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1", Gr 5

BOLT - carriage, 3/8 NC x 1 inch (Replaces bolt 495967R1)

1шт.

433-724

CARRIAGE BOLT,Sq Nk, 7/16" - 14 x 1 1/2", Gr 5

BOLT - carriage, 7/16 NC x 1-1/2 inch (Replaces bolts 18696R1 and 168930C1)

1шт.

425-106

NUT,3/8"-16, Cl 5

(Replaces nut 120377) 3/8"-16, G5

1шт.

129-104

NUT,7/16"-14, G5

(Replaces nut 271501) 7/16"-14, G5

1шт.

192-21

LOCK WASHER,3/8"

WASHER, LOCK, (Replaces washer 120382) 3/8"

1шт.

10

613842R2

GUIDE

HOLDER - knife, nine used with 12 foot, eleven used with 14 foot

1шт.

11

595213R1

STRIP

- guide shim

1шт.

12

824981C1

GUIDE

- knife high arch, left-hand

1шт.

420-3728

CARRIAGE BOLT,#3, 7/16" - 14 x 1 3/4", Gr 8

BOLT - plow, 7/16 NC x 1-3/4 inch, grade 8 (Replaces bolts 609826R1 and 489246R1)

2шт.

129-104

NUT,7/16"-14, G5

(Replaces nut 271501) 7/16"-14, G5

2шт.

13

828061C1

ANGLE

- right-hand end guard

1шт.

420-3728

CARRIAGE BOLT,#3, 7/16" - 14 x 1 3/4", Gr 8

BOLT - plow, 7/16 NC x 1-3/4 inch, grade 8 (Replaces bolts 609826R1 and 489246R1)

2шт.

413-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

- hex, 3/8 NC x 1-1/4 inch (Replaces bolt 180124)

1шт.

425-106

NUT,3/8"-16, Cl 5

(Replaces nut 120377) 3/8"-16, G5

1шт.

129-104

NUT,7/16"-14, G5

(Replaces nut 271501) 7/16"-14, G5

2шт.

192-21

LOCK WASHER,3/8"

WASHER, LOCK, (Replaces washer 120382) 3/8"

1шт.

495-61041

WASHER,10.31mm ID x 25.4mm OD x 1.6mm Thk

(Replaces washer 619856R1) 3/8" x 1" x .063"

1шт.

14

353232R1

SPACER,3/8" Pipe x .344

WASHER - right-hand end guard angle spacer

2шт.

15

58600C1

GUARD ASSY.

GUARD - strut, for use in extremely rocky conditions, twenty-one used with 12 foot, twenty-five used with 14 foot

1шт.

16

58601C1

CLIP

- low arch, strut, for use in extremely rocky conditions, one per guard 58600C1

1шт.

17

58602C1

CLIP

- high arch, strut, for use in extremely rocky conditions

4шт.

18

179759C1

PLATE

- wear, for strut and stub guards (Replaces plate MC468)

1шт.

19

595648R1

GUIDE

- knife, high arch, right-hand, not for use with strut or stub guards

1шт.

20

472717R2

GUARD

- single stub, for use when excessive plugging of standard guard occurs, forty-six used with 12-1/2 foot, fifty-four used with 14-1/2 foot

1шт.

21

101831C2

CLIP

- low arch, stub, for use when excessive plugging of standard guard occurs, one per two guards 472717R2

1шт.

22

101832C2

CLIP

- high arch, stub, for use when excessive plugging of standard guard occurs

4шт.
