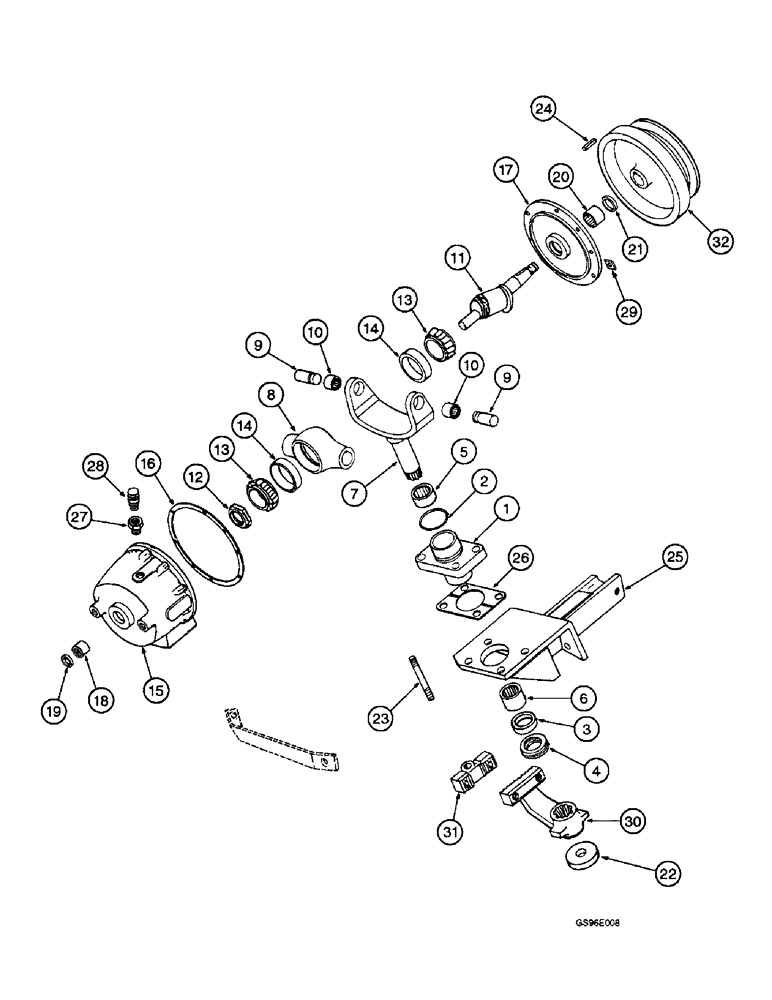

Запчасти Case IH INTERNATIONAL (2-16) - KNIFE DRIVE CONNECTIONS, DUAL AUGER (14) - CROP CUTTING

117020C91

DRIVE

ASSEMBLY - knife, no longer used, order drive assembly 136323C92

1шт.

136323C92

DRIVE

ASSEMBLY - knife, used with machines having serial no. 1101 and above (Replaces drive assemblies 117020C91 and 136323C91)

1шт.

136323C92R

REMAN-WOBBLE BOX

Remanufactured, Wobble Box, N.A. Only

1шт.

136323C92C

CORE-WOBBLE BOX

Return Number, Wobble Box, N.A. Only

1шт.

1

62524C1

HOUSING

- yoke bearing, no longer used

1шт.

1

136324C1

HOUSING

- yoke bearing, used with drive assembly 136323C92

1шт.

2

238-3231

O-RING,2.609" ID x 2.887" OD x 0.139"

- yoke bearing housing (Replaces O-ring 21552R1)

1шт.

3

101295C1

OIL SEAL

- housing oil

1шт.

4

116955C1

GASKET,41.27mm ID x 76.2mm OD x 14.22mm Thk

WASHER - felt, 1-5/8 x 3 x 9/16 inch

1шт.

5

205369R91

NEEDLE BEARING,Needle, 41.26mm ID x 50.81mm OD x 15.88mm W

BEARING - housing inner

1шт.

6

166957R91

NEEDLE BEARING,Needle, 41.26mm ID x 50.81mm OD x 31.75mm W

BEARING - housing outer

1шт.

7

394672A1

YOKE,3/4" - 10

- knife drive (use w/bushing p/n 709063)

1шт.

26323R1

BOLT,Hex, 3/4" - 10 x 1 1/2", Gr 8

- hex prevailing torque, 3/4 NC x 1-1/2 inch, grade 8

1шт.

8

62520C2

TRUNNION

- knife drive

1шт.

38-32024

PIN,5/16" x 1 1/2", Coiled

- spiral, 5/16 x 2 inch (Replaces pin 617939R1)

2шт.

9

62522C1

STUD

- trunnion

2шт.

10

A12652

NEEDLE BEARING,1" ID x 1.251" OD x 0.75"

BEARING - trunnion stud (Replaces bearing 550839R91)

2шт.

11

101300C1

SHAFT

- wobble

1шт.

414089C1

FLANGE NUT,5/8" - 18

NUT - lock, 5/8 inch NF

1шт.

12

62521C2

NUT

- stake

1шт.

13

364463C91

BEARING ASSY,2.0005" ID x 3.2283" OD x 0.875"

CONE - bearing, wobble shaft

2шт.

14

364462C1

BEARING CUP,82.55mm OD x 16.51mm W

CUP - bearing, wobble shaft

2шт.

15

62523C1

HOUSING

- wobble shaft, used with drive assembly 117020C91, no longer used, order housing 136325C2, housing 136324C1, bolt 831675C2 and bar 829374C2

1шт.

15

136325C2

HOUSING

- wobble shaft, used with drive assembly 136323C92

1шт.

217-436

PLUG,Hex Soc, 3/8" - 18 NPTF

- hex socket, 3/8 inch PT (Replaces plug 445673)

3шт.

16

62525C2

GASKET,0.76mm Thk

- cover (Replaces gasket 62525C1)

1шт.

17

62526C1

COVER

- housing

1шт.

117045C1

LOCK BOLT

BOLT - hex, 3/8 NC x 1 inch

8шт.

18

101293C91

NEEDLE BEARING,Needle, 22.21mm ID x 47.75mm OD x 25.4mm W

BEARING - wobble shaft inner

1шт.

19

544667R91

SEAL,22.23mm ID x 31.85mm OD x 4.78mm Thk

SEAL - oil, inner

1шт.

20

F60368

NEEDLE BEARING

BEARING - wobble shaft outer (Replaces bearing 143996H1)

1шт.

21

62527C1

OIL SEAL,25.4mm ID x 41.35mm OD x 6.5mm Thk

- oil, outer

1шт.

22

116954C1

WASHER

- flat, 25/32 x 2-13/32 x 5/16 inch

1шт.

23

636433R1

STUD

- housing, used with headers having serial numbers 866 through 1100

4шт.

23

831675C2

BOLT,5/8" - 11 x 2 3/4", Gr 8

- hex, 5/8 NC x 2-3/4 inch, used with headers having serial no. 1101 and after or prior to serial no. 866

4шт.

24

Q53

KEY,1/4" Sq x 1", Par

1шт.

25

828949C2

SUPPORT

- knife drive lower

1шт.

113-417

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5, Full Thd

(Replaces bolt 180175) Hex, 1/2"-13 x 1 1/4", G5, Full Thd

1шт.

113-424

BOLT,Hex, 1/2" - 13 x 1", Gr 5, Full Thd

(Replaces bolt 180173) Hex, 1/2"-13 x 1", G5, Full Thd

5шт.

129-105

NUT,Hex, 1/2" - 13, Gr 5

(Replaces nut 120378) 1/2"-13, G5

1шт.

192-23

LOCK WASHER,1/2"

WASHER, LOCK, (Replaces washer 120384) 1/2"

6шт.

495-81287

WASHER,13.49mm ID x 31.75mm OD x 3.4mm Thk

- flat, 17/32 x 1-1/4 x 7/64 inch (Replaces washer 20601R1)

2шт.

495-81024

WASHER,17/32" x 1 1/4" x .060"

- flat, 17/32 x 1-1/4 x 1/16 inch (Replaces washer 178374R1)

3шт.

26

829374C2

BAR

- shim

1шт.

27

119933

ADAPTER,3/8" NPT Male x 1/8" NPT Fem

BUSHING - reducer, pipe, 3/8 x 1/8 inch (Replaces bushing 444333)

1шт.

28

152127H1

BREATHER,1/8"-27, Short

- wobble shaft housing

1шт.

29

62528C1

BAR - cover bolt retainer, also order bolt 117045C1, no longer used

1шт.

30

62529C1

CRANK

- knife

1шт.

326-1036

BOLT,Hex, 5/8" - 11 x 2-1/4", Gr 8

(Replaces bolt 24876R1) Hex, 5/8"-11 x 2 1/4", G8

2шт.

192-25

LOCK WASHER,5/8"

WASHER, LOCK, (Replaces washer 121574) 5/8"

2шт.

496-81022

WASHER

- flat, 21/32 x 1-1/4 x 1/4 inch, hardened (Replaces washer 62872C1)

2шт.

31

101296C2

NOZZLE HOLDER

HOLDER - ball stud (Replaces holder 101296C1)

1шт.

32

828960C2

PULLEY

- knife driven

1шт.

113-410

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

Used with housing 62524C1 (Replaces bolt 180177) Hex, 1/2"-13 x 1 1/2", G5, Full Thd

1шт.

113-441

BOLT,Hex, 1/2" - 13 x 2-1/4", Gr 5

Hex, 1/2"-13 x 2 1/4", G5, Used with housing 62524C1 (Replaces bolt 180183)

4шт.

80087972

BOLT,Hex, 1/2" - 13 x 2 1/2", Gr 5

- hex, 1/2 NC x 2-1/2 inch, used with housing 62524C1 (Replaces bolt 180185)

4шт.

192-23

LOCK WASHER,1/2"

WASHER, LOCK, , Used with housing 62524C1 (Replaces washer 120384) 1/2"

4шт.

113-607

BOLT,Hex, 5/8" - 11 x 1-1/2", Gr 5, Full Thd

Used with housing 136324C1 (Replaces bolt 271547) Hex, 5/8"-11 x 1 1/2", G5, Full Thd

1шт.

831675C2

BOLT,5/8" - 11 x 2 3/4", Gr 8

- hex, 5/8 NC x 2-3/4 inch, used with housing 136324C1

4шт.

496-21066

WASHER,16.6mm ID x 33.5mm OD x 3.8mm Thk

- flat, 21/32 x 1-5/16 x 5/32 inch, used with housing 136324C1 (Replaces washer 589068R1)

4шт.
