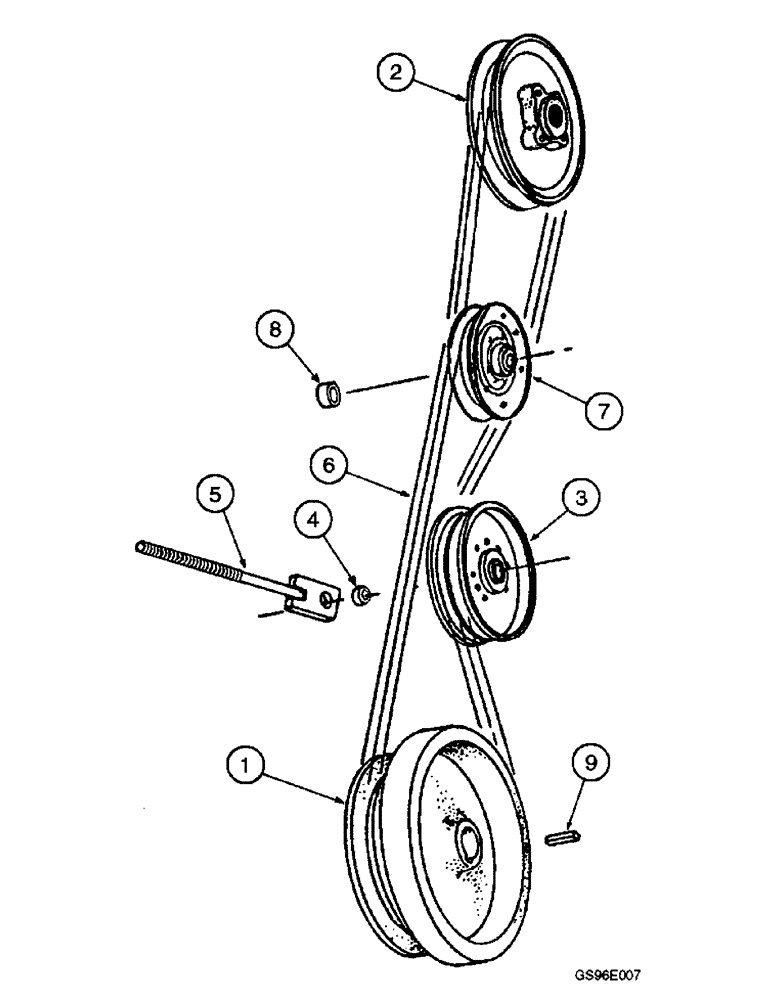

Запчасти Case IH INTERNATIONAL (2-14) - KNIFE DRIVE, DUAL AUGER (14) - CROP CUTTING

1

828960C2

PULLEY

- knife drive

1шт.

2

828965C1

PULLEY

- knife drive

1шт.

3

607443R91

PULLEY

- knife drive tightener

1шт.

113-441

BOLT,Hex, 1/2" - 13 x 2-1/4", Gr 5

Hex, 1/2"-13 x 2 1/4", G5 (Replaces bolt 180183)

1шт.

192-23

LOCK WASHER,1/2"

WASHER, LOCK, (Replaces washer 120384) 1/2"

1шт.

495-81287

WASHER,13.49mm ID x 31.75mm OD x 3.4mm Thk

- flat, 17/32 x 1-1/4 x 7/64 inch

1шт.

495-81024

WASHER,17/32" x 1 1/4" x .060"

- flat, 17/32 x 1-1/4 x 1/16 inch (Replaces washer 178374R1)

1шт.

4

610395R1

SPACER,1/2" X-Strng Pipe x 3/8"

- pulley, 1/2 x 3/8 inch

1шт.

5

829938C2

BOLT,Adj, 11.2"

- tightener pulley adjusting

1шт.

425-105

NUT,5/16"-18, G5

- hex, 5/16 inch NC

2шт.

495-81287

WASHER,13.49mm ID x 31.75mm OD x 3.4mm Thk

- flat, 17/32 x 1-1/4 x 7/64 inch

2шт.

6

153301C1

V-BELT,0.88" W x 115.87" L

Knife Drive, Replaces 829413C1 0.88" W x 115.87" L

1шт.

7

154742C91

PULLEY

- knife drive tightener (Replaces pulley 574051R91)

1шт.

Used on Single and Dual Auger Headers

1шт.

133-3

CARRIAGE BOLT,Short Nk, 5/8" - 11 x 3 1/4", Gr 5

BOLT, CARRIAGE, (Replaces bolt 608812R1) Short NK, 5/8"-11 x 3 1/4", G5

1шт.

129-107

NUT,5/8"-11, G5

(Replaces nut 124589) 5/8"-11, G5

1шт.

192-25

LOCK WASHER,5/8"

WASHER, LOCK, (Replaces washer 121574) 5/8"

1шт.

8

575098R1

SPACER,16.7mm ID x 22.23mm OD x 15.9mm L

- pulley, 7/8 x 5/8 inch

1шт.

9

Q53

KEY,1/4" Sq x 1", Par

1шт.
